lib-array.h File Reference

Underlying data structures. More...

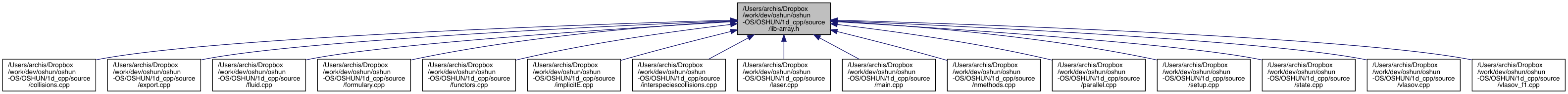

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
class	GSlice_iter< T >
class	GSlice_iter< T >
class	CGSlice_iter< T >
class	CGSlice_iter< T >
class	Array2D< T >
class	Array2D_cmplx< T >
class	Array3D< T >
class	Array3D_cmplx< T >
class	Array4D< T >
class	Array4D_cmplx< T >

Functions
template<class T >
bool	operator== (const GSlice_iter< T > &, const GSlice_iter< T > &)
template<class T >
bool	operator!= (const GSlice_iter< T > &, const GSlice_iter< T > &)
template<class T >
bool	operator< (const GSlice_iter< T > &, const GSlice_iter< T > &)
template<class T >
bool	operator== (const CGSlice_iter< T > &, const CGSlice_iter< T > &)
template<class T >
bool	operator!= (const CGSlice_iter< T > &, const CGSlice_iter< T > &)
template<class T >
bool	operator< (const CGSlice_iter< T > &, const CGSlice_iter< T > &)

Detailed Description

Underlying data structures.

Author

PICKSC

Date

September 1, 2016

This header file contains the definitions for multidimensional (2D to 4D) array types. These types define the following: –> Fortan-style access to the underlying valarray (_,_,_)

–> "=, *=, +=, -="

–> Slices of the array given a range of indices in a specific dimension

–> Multiplication with a valarray.

–> Central difference

–> Subsets of the given array

Notice that these array-containers are closer to Fortran-style arrays than to standard Matrix types, particularly because they are not intended to facilitate standard Matrix algebra. No error-checking is included.

The following classes are defined:

1. template<class T> class GSlice_iter: an iterator for the elements of a regular array type.
2. template<class T> class CGSlice_iter : same as above for constant values

3.a.template<class t>=""> class Array2D : a 2D container with basic access and algebra

3.b.template<class t>=""> class Array2D_cmplx : a 2D container of complex with basic access and algebra

4.a.template<class t>=""> class Array3D : a 3D container

4.b.template<class t>=""> class Array3D_cmplx : a 3D container of complex with basic access and algebra

5.a.template<class t>=""> class Array4D : a 4D container

5.b.template<class t>=""> class Array4D_cmplx : a 4D container of complex with basic access and algebra

Definition in file lib-array.h.

Function Documentation

operator!=() [1/2]

template<class T >

bool operator!=	(	const GSlice_iter< T > &	p,
		const GSlice_iter< T > &	q
	)

Definition at line 146 of file lib-array.h.

                                                                 {
    return !(p==q);
}

operator!=() [2/2]

template<class T >

bool operator!=	(	const CGSlice_iter< T > &	p,
		const CGSlice_iter< T > &	q
	)

Definition at line 248 of file lib-array.h.

                                                                   {
    return !(p==q);
}

operator<() [1/2]

template<class T >

bool operator<	(	const GSlice_iter< T > &	p,
		const GSlice_iter< T > &	q
	)

Definition at line 151 of file lib-array.h.

                                                                 {
    size_t count(0);
    if (p.curr<q.curr && p.gs.start() == q.gs.start())
        while (  (p.gs.stride()[count] == p.gs.stride()[count])
                 && (p.gs.size()[count]   == p.gs.size()[count]  ))
            if (count++ == q.gs.size().size()-1) return true;
    return false;
}

operator<() [2/2]

template<class T >

bool operator<	(	const CGSlice_iter< T > &	p,
		const CGSlice_iter< T > &	q
	)

Definition at line 253 of file lib-array.h.

                                                                   {
    size_t count(0);
    if (p.curr<q.curr && p.gs.start() == q.gs.start())
        while (  (p.gs.stride()[count] == p.gs.stride()[count])
                 && (p.gs.size()[count]   == p.gs.size()[count]  ))
            if (count++ == q.gs.size().size()-1) return true;
    return false;
}

operator==() [1/2]

template<class T >

bool operator==	(	const GSlice_iter< T > &	p,
		const GSlice_iter< T > &	q
	)

Definition at line 136 of file lib-array.h.

References GSlice_iter< T >::curr, and GSlice_iter< T >::gs.

                                                                 {
    size_t count(0);
    if (p.curr==q.curr && p.gs.start() == q.gs.start())
        while (  (p.gs.stride()[count] == p.gs.stride()[count])
                 && (p.gs.size()[count]   == p.gs.size()[count]  ))
            if (count++ == q.gs.size().size()-1) return true;
    return false;
}

operator==() [2/2]

template<class T >

bool operator==	(	const CGSlice_iter< T > &	p,
		const CGSlice_iter< T > &	q
	)

Definition at line 238 of file lib-array.h.

References CGSlice_iter< T >::curr, and CGSlice_iter< T >::gs.

                                                                   {
    size_t count(0);
    if (p.curr==q.curr && p.gs.start() == q.gs.start())
        while (  (p.gs.stride()[count] == p.gs.stride()[count])
                 && (p.gs.size()[count]   == p.gs.size()[count]  ))
            if (count++ == q.gs.size().size()-1) return true;
    return false;
}
