Array4D_cmplx< T > Class Template Reference

#include <lib-array.h>

Public Member Functions
	Array4D_cmplx (size_t x, size_t y, size_t z, size_t w)
	Array4D_cmplx (const Array4D_cmplx &other)
	~Array4D_cmplx ()
size_t	dim () const
size_t	dim1 () const
size_t	dim2 () const
size_t	dim3 () const
size_t	dim4 () const
valarray< T > &	array () const
T &	operator[] (size_t i)
T	operator[] (size_t i) const
T &	real (size_t i, size_t j, size_t k, size_t l)
T	real (size_t i, size_t j, size_t k, size_t l) const
T &	imag (size_t i, size_t j, size_t k, size_t l)
T	imag (size_t i, size_t j, size_t k, size_t l) const
GSlice_iter< T >	d1c (size_t b, size_t e)
GSlice_iter< T >	d2c (size_t b, size_t e)
GSlice_iter< T >	d3c (size_t b, size_t e)
GSlice_iter< T >	d4c (size_t b, size_t e)
GSlice_iter< T >	SubArray4D (size_t st, size_t nx, size_t ny, size_t nz, size_t nw)
CGSlice_iter< T >	d1c (size_t b, size_t e) const
CGSlice_iter< T >	d2c (size_t b, size_t e) const
CGSlice_iter< T >	d3c (size_t b, size_t e) const
CGSlice_iter< T >	d4c (size_t b, size_t e) const
CGSlice_iter< T >	SubArray4D (size_t st, size_t nx, size_t ny, size_t nz, size_t nw) const
Array4D_cmplx &	operator= (const T &d)
Array4D_cmplx &	operator= (const complex< T > &c)
Array4D_cmplx &	operator= (const Array4D< T > &other)
Array4D_cmplx &	operator= (const Array4D_cmplx &other)
Array4D_cmplx &	operator*= (const T &d)
Array4D_cmplx &	operator*= (const complex< T > &c)
Array4D_cmplx &	operator*= (const Array4D< T > &vmulti)
Array4D_cmplx &	operator*= (const Array4D_cmplx &vmulti)
Array4D_cmplx &	operator+= (const T &d)
Array4D_cmplx &	operator+= (const complex< T > &c)
Array4D_cmplx &	operator+= (const Array4D< T > &vadd)
Array4D_cmplx &	operator+= (const Array4D_cmplx &vadd)
Array4D_cmplx &	operator-= (const T &d)
Array4D_cmplx &	operator-= (const complex< T > &c)
Array4D_cmplx &	operator-= (const Array4D< T > &vmin)
Array4D_cmplx &	operator-= (const Array4D_cmplx &vmin)
Array4D_cmplx &	multid1 (const valarray< T > &vmulti)
Array4D_cmplx &	multid1 (const valarray< complex< T > > &vmulti)
Array4D_cmplx &	multid2 (const valarray< T > &vmulti)
Array4D_cmplx &	multid2 (const valarray< complex< T > > &vmulti)
Array4D_cmplx &	multid3 (const valarray< T > &vmulti)
Array4D_cmplx &	multid3 (const valarray< complex< T > > &vmulti)
Array4D_cmplx &	multid4 (const valarray< T > &vmulti)
Array4D_cmplx &	multid4 (const valarray< complex< T > > &vmulti)
Array4D_cmplx &	multid2d3d4 (const Array3D< T > &vd2d3d4)
Array4D_cmplx &	multid2d3d4 (const Array3D_cmplx< T > &vd2d3d4)
Array4D_cmplx &	Dd1 ()
Array4D_cmplx &	Dd2 ()
Array4D_cmplx &	Dd3 ()
Array4D_cmplx &	Dd4 ()
Array4D_cmplx &	Filterd1 (size_t N)

Private Attributes
valarray< T > *	v
size_t	d1
size_t	d2
size_t	d3
size_t	d4
size_t	td1
size_t	td1d2
size_t	td1d2d3

Detailed Description

template<class T>
class Array4D_cmplx< T >

Definition at line 2288 of file lib-array.h.

Constructor & Destructor Documentation

Array4D_cmplx() [1/2]

template<class T >

Array4D_cmplx< T >::Array4D_cmplx	(	size_t	x,
		size_t	y,
		size_t	z,
		size_t	w
	)

Definition at line 2387 of file lib-array.h.

References Array4D_cmplx< T >::d1, Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

Referenced by Array4D_cmplx< T >::array().

                                                   : d1(x), d2(y), d3(z), d4(w) {
    v = new valarray<T>(2*d1*d2*d3*d4);
    td1 = 2*d1;
    td1d2 = 2*d1*d2;
    td1d2d3 = 2*d1*d2*d3;
}

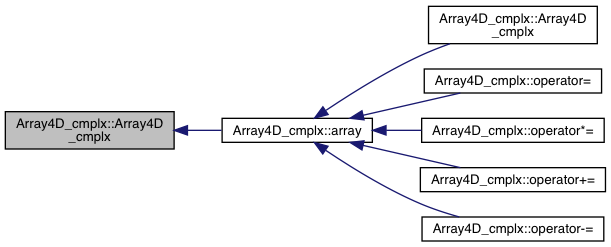

Here is the caller graph for this function:

Array4D_cmplx() [2/2]

template<class T >

Array4D_cmplx< T >::Array4D_cmplx

(

const Array4D_cmplx< T > &

other

)

Definition at line 2394 of file lib-array.h.

References Array4D_cmplx< T >::array(), Array4D_cmplx< T >::d1, Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::dim1(), Array4D_cmplx< T >::dim2(), Array4D_cmplx< T >::dim3(), Array4D_cmplx< T >::dim4(), Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                                            {
    d1  = other.dim1();
    d2  = other.dim2();
    d3  = other.dim3();
    d4  = other.dim4();
    td1 = 2*d1;
    td1d2 = 2*d1*d2;
    td1d2d3 = 2*d1*d2*d3;
    v = new valarray<T>(2*d1*d2*d3*d4);
    (*v) = other.array();
}

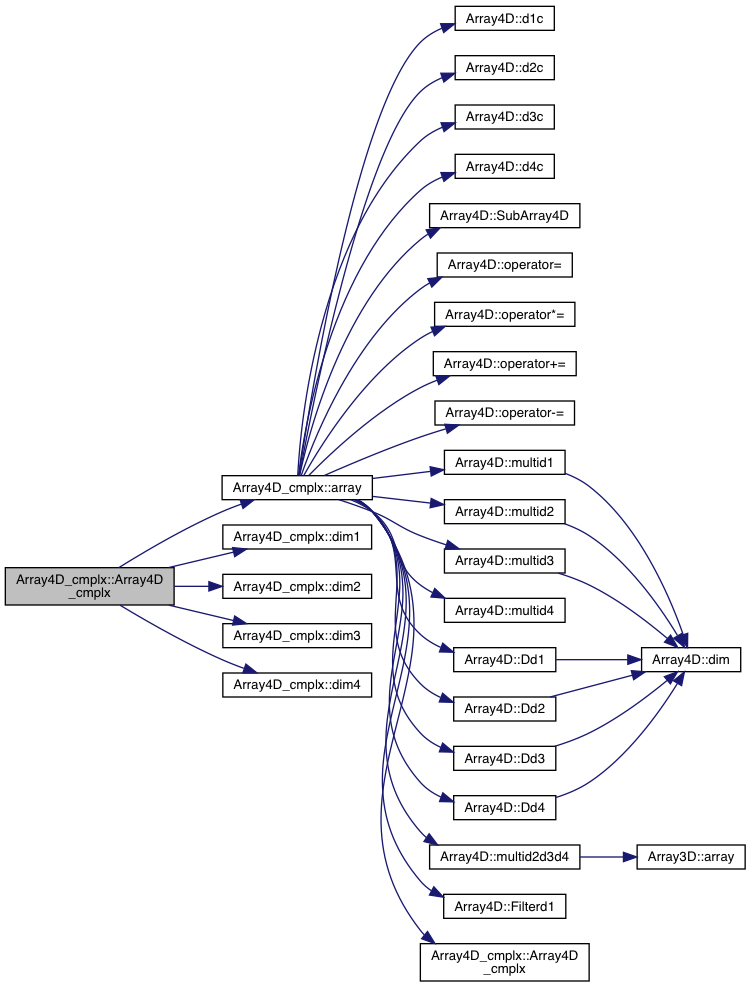

Here is the call graph for this function:

~Array4D_cmplx()

template<class T >

Array4D_cmplx< T >::~Array4D_cmplx

(

)

Definition at line 2406 of file lib-array.h.

References Array4D_cmplx< T >::v.

                                                   {
    delete v;
}

Member Function Documentation

array()

template<class T >

valarray<T>& Array4D_cmplx< T >::array ( ) const

inline

Definition at line 2312 of file lib-array.h.

References Array4D_cmplx< T >::Array4D_cmplx(), Array4D< T >::d1c(), Array4D< T >::d2c(), Array4D< T >::d3c(), Array4D< T >::d4c(), Array4D< T >::Dd1(), Array4D< T >::Dd2(), Array4D< T >::Dd3(), Array4D< T >::Dd4(), Array4D< T >::Filterd1(), Array4D< T >::multid1(), Array4D< T >::multid2(), Array4D< T >::multid2d3d4(), Array4D< T >::multid3(), Array4D< T >::multid4(), Array4D< T >::operator*=(), Array4D< T >::operator+=(), Array4D< T >::operator-=(), Array4D< T >::operator=(), Array4D< T >::SubArray4D(), and Array4D< T >::v.

Referenced by Array4D_cmplx< T >::Array4D_cmplx(), Array4D_cmplx< T >::operator*=(), Array4D_cmplx< T >::operator+=(), Array4D_cmplx< T >::operator-=(), and Array4D_cmplx< T >::operator=().

{return *v;};

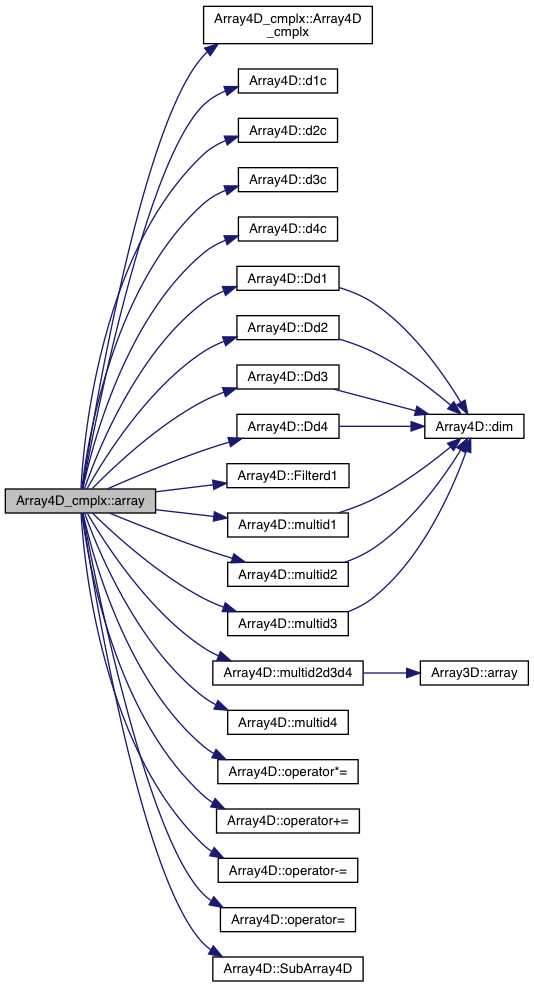

Here is the call graph for this function:

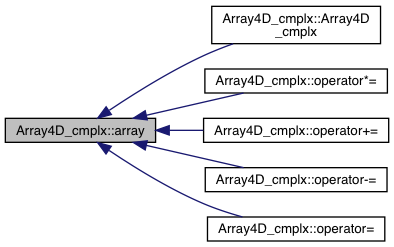

Here is the caller graph for this function:

d1c() [1/2]

template<class T >

GSlice_iter< T > Array4D_cmplx< T >::d1c ( size_t  b, size_t  e  )

inline

Definition at line 2443 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                             {
    valarray<size_t> sz(5), str(5);
    str[4] = 1, str[3] = td1; str[2] = td1d2; str[1] = td1d2d3; str[0] = 2;
    sz[4] = 2,  sz[3]  = d2;  sz[2]  = d3;    sz[1]  = d4;       sz[0] = e-b+1;
    return GSlice_iter<T>(v,gslice(2*b,sz,str));
}

d1c() [2/2]

template<class T >

CGSlice_iter< T > Array4D_cmplx< T >::d1c ( size_t  b, size_t  e  ) const

inline

Definition at line 2451 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                                    {
    valarray<size_t> sz(5), str(5);
    str[4] = 1, str[3] = td1; str[2] = td1d2; str[1] = td1d2d3; str[0] = 2;
    sz[4] = 2,  sz[3]  = d2;  sz[2]  = d3;    sz[1]  = d4;       sz[0] = e-b+1;
    return CGSlice_iter<T>(v,gslice(2*b,sz,str));
}

d2c() [1/2]

template<class T >

GSlice_iter< T > Array4D_cmplx< T >::d2c ( size_t  b, size_t  e  )

inline

Definition at line 2459 of file lib-array.h.

References Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                             {
    valarray<size_t> sz(4), str(4);
    str[3] = 1;  str[2] = td1d2; str[1] = td1d2d3; str[0] = td1;
    sz[3]  = td1; sz[2]  = d3;   sz[1] = d4; sz[0] = e-b+1;
    return GSlice_iter<T>(v,gslice(b*td1,sz,str));
}

d2c() [2/2]

template<class T >

CGSlice_iter< T > Array4D_cmplx< T >::d2c ( size_t  b, size_t  e  ) const

inline

Definition at line 2467 of file lib-array.h.

References Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                                    {
    valarray<size_t> sz(4), str(4);
    str[3] = 1;  str[2] = td1d2; str[1] = td1d2d3; str[0] = td1;
    sz[3]  = td1; sz[2] = d3;    sz[1]  = d4;       sz[0] = e-b+1;
    return CGSlice_iter<T>(v,gslice(b*td1,sz,str));
}

d3c() [1/2]

template<class T >

GSlice_iter< T > Array4D_cmplx< T >::d3c ( size_t  b, size_t  e  )

inline

Definition at line 2475 of file lib-array.h.

References Array4D_cmplx< T >::d4, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                             {
    valarray<size_t> sz(3), str(3);
    str[2] = 1;     str[1] = td1d2d3; str[0] = td1d2;
    sz[2]  = td1d2; sz[1]  = d4;      sz[0]  = e-b+1;
    return GSlice_iter<T>(v,gslice(b*td1d2,sz,str));
}

d3c() [2/2]

template<class T >

CGSlice_iter< T > Array4D_cmplx< T >::d3c ( size_t  b, size_t  e  ) const

inline

Definition at line 2483 of file lib-array.h.

References Array4D_cmplx< T >::d4, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                                    {
    valarray<size_t> sz(3), str(3);
    str[2] = 1;     str[1] = td1d2d3; str[0] = td1d2;
    sz[2]  = td1d2; sz[1]  = d4;      sz[0]  = e-b+1;
    return CGSlice_iter<T>(v,gslice(b*td1d2,sz,str));
}

d4c() [1/2]

template<class T >

GSlice_iter< T > Array4D_cmplx< T >::d4c ( size_t  b, size_t  e  )

inline

Definition at line 2491 of file lib-array.h.

References Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                              {
    valarray<size_t> sz(2), str(2);
    str[1] = 1;       str[0] = td1d2d3;
    sz[1]  = td1d2d3; sz[0]  = e-b+1;
    return GSlice_iter<T>(v,gslice(b*td1d2d3,sz,str));
}

d4c() [2/2]

template<class T >

CGSlice_iter< T > Array4D_cmplx< T >::d4c ( size_t  b, size_t  e  ) const

inline

Definition at line 2499 of file lib-array.h.

References Array4D_cmplx< T >::SubArray4D(), Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                                     {
    valarray<size_t> sz(2), str(2);
    str[1] = 1;       str[0] = td1d2d3;
    sz[1]  = td1d2d3; sz[0]  = e-b+1;
    return CGSlice_iter<T>(v,gslice(b*td1d2d3,sz,str));
}

Here is the call graph for this function:

Dd1()

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::Dd1

(

)

Definition at line 2789 of file lib-array.h.

References Array4D_cmplx< T >::dim().

                                                         {
    for(long i(0); i< 2*dim()-4; ++i) {
        (*v)[i] -= (*v)[i+4];
    }
    for(long i(2*dim()-5); i>-1; --i) {
        (*v)[i+2] = (*v)[i];
    }
    return *this;
}

Here is the call graph for this function:

Dd2()

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::Dd2

(

)

Definition at line 2800 of file lib-array.h.

References Array4D_cmplx< T >::dim(), and Array4D_cmplx< T >::td1.

                                                         {
    long twotd1 = 2*td1;
    for(long i(0); i< 2*dim()-twotd1; ++i) {
        (*v)[i] -= (*v)[i+twotd1];
    }
    for(long i(2*dim()-twotd1-1); i>-1; --i) {
        (*v)[i+td1] = (*v)[i];
    }
    return *this;
}

Here is the call graph for this function:

Dd3()

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::Dd3

(

)

Definition at line 2812 of file lib-array.h.

References Array4D_cmplx< T >::dim(), and Array4D_cmplx< T >::td1d2.

                                                          {
    long twotd1d2 = 2*td1d2;
    for(long i(0); i< 2*dim()-twotd1d2; ++i) {
        (*v)[i] -= (*v)[i+twotd1d2];
    }
    for(long i(2*dim()-twotd1d2-1); i>-1; --i) {
        (*v)[i+td1d2] = (*v)[i];
    }
    return *this;
}

Here is the call graph for this function:

Dd4()

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::Dd4

(

)

Definition at line 2824 of file lib-array.h.

References Array4D_cmplx< T >::dim(), and Array4D_cmplx< T >::td1d2d3.

                                                          {
    long twotd1d2d3 = 2*td1d2d3;
    for(long i(0); i< long(2*dim())-twotd1d2d3; ++i) {
        (*v)[i] -= (*v)[i+twotd1d2d3];
    }
    for(long i(2*dim()-twotd1d2d3-1); i>-1; --i) {
        (*v)[i+td1d2d3] = (*v)[i];
    }
    return *this;
}

Here is the call graph for this function:

dim()

template<class T >

size_t Array4D_cmplx< T >::dim ( ) const

inline

Definition at line 2307 of file lib-array.h.

References Array4D< T >::d4.

Referenced by Array4D_cmplx< T >::Dd1(), Array4D_cmplx< T >::Dd2(), Array4D_cmplx< T >::Dd3(), Array4D_cmplx< T >::Dd4(), Array4D_cmplx< T >::multid1(), Array4D_cmplx< T >::multid2(), and Array4D_cmplx< T >::multid3().

{return d1*d2*d3*d4;}

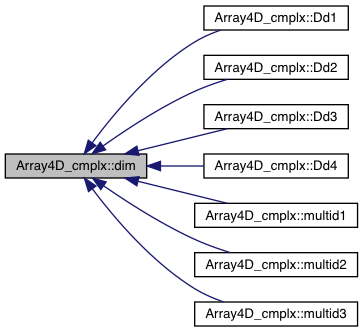

Here is the caller graph for this function:

dim1()

template<class T >

size_t Array4D_cmplx< T >::dim1 ( ) const

inline

Definition at line 2308 of file lib-array.h.

References Array4D< T >::d1.

Referenced by Array4D_cmplx< T >::Array4D_cmplx().

{return d1;}

Here is the caller graph for this function:

dim2()

template<class T >

size_t Array4D_cmplx< T >::dim2 ( ) const

inline

Definition at line 2309 of file lib-array.h.

References Array4D< T >::d2.

Referenced by Array4D_cmplx< T >::Array4D_cmplx().

{return d2;}

Here is the caller graph for this function:

dim3()

template<class T >

size_t Array4D_cmplx< T >::dim3 ( ) const

inline

Definition at line 2310 of file lib-array.h.

References Array4D< T >::d3.

Referenced by Array4D_cmplx< T >::Array4D_cmplx().

{return d3;}

Here is the caller graph for this function:

dim4()

template<class T >

size_t Array4D_cmplx< T >::dim4 ( ) const

inline

Definition at line 2311 of file lib-array.h.

References Array4D< T >::d4.

Referenced by Array4D_cmplx< T >::Array4D_cmplx().

{return d4;}

Here is the caller graph for this function:

Filterd1()

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::Filterd1

(

size_t

N

)

Definition at line 2837 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, and Array4D_cmplx< T >::td1.

                                                                       {
    for (size_t j(0); j < d2*d3*d4; ++j ){
        for (size_t i(j*td1); i< j*td1+2*N; ++i ){
            (*v)[i] = 0.0;
        }
    }
    return *this;
}

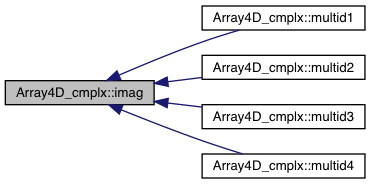

imag() [1/2]

template<class T >

T & Array4D_cmplx< T >::imag ( size_t  i, size_t  j, size_t  k, size_t  l  )

inline

Definition at line 2430 of file lib-array.h.

References Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

Referenced by Array4D_cmplx< T >::multid1(), Array4D_cmplx< T >::multid2(), Array4D_cmplx< T >::multid3(), and Array4D_cmplx< T >::multid4().

                                                                                     {
    return (*v)[2*i+1+j*td1+k*td1d2+l*td1d2d3];
}

Here is the caller graph for this function:

imag() [2/2]

template<class T >

T Array4D_cmplx< T >::imag ( size_t  i, size_t  j, size_t  k, size_t  l  ) const

inline

Definition at line 2434 of file lib-array.h.

References Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                                                          {
    return (*v)[2*i+1+j*td1+k*td1d2+l*td1d2d3];
}

multid1() [1/2]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::multid1

(

const valarray< T > &

vmulti

)

Definition at line 2659 of file lib-array.h.

References Array4D_cmplx< T >::d1, Array4D_cmplx< T >::dim(), and Array4D_cmplx< T >::td1.

                                                                                      {
    for (size_t j(0); j< 2*dim(); j+= td1 ){
        for (size_t i(0); i< d1; ++i ){
            (*v)[2*i+j]   *= vmulti[i];
            (*v)[2*i+1+j] *= vmulti[i];
        }
    }
    return *this;
}

Here is the call graph for this function:

multid1() [2/2]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::multid1

(

const valarray< complex< T > > &

vmulti

)

Definition at line 2669 of file lib-array.h.

References Array4D_cmplx< T >::d1, Array4D_cmplx< T >::dim(), Array4D_cmplx< T >::imag(), Array4D_cmplx< T >::td1, and Array4D_cmplx< T >::v.

                                                                                                 {
    for (size_t j(0); j< 2*dim(); j+=td1 ){
        for (size_t i(0); i< d1; ++i ){
            T vi((*v)[2*i+j]*vmulti[i].imag());
            (*v)[2*i+j]    *= vmulti[i].real();                     // v[i]   = Aa
            (*v)[2*i+j]    -= (*v)[2*i+1+j] * vmulti[i].imag();     // v[i]   = Aa - Bb
            (*v)[2*i+1+j]  *= vmulti[i].real();                     // v[i+1] = Ba
            (*v)[2*i+1+j]  += vi;                       // v[i+1] = Ba + Ab
        }
    }
    return *this;
}

Here is the call graph for this function:

multid2() [1/2]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::multid2

(

const valarray< T > &

vmulti

)

Definition at line 2683 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::dim(), and Array4D_cmplx< T >::td1.

                                                                                      {
    for (size_t k(0); k< 2*dim(); k+=td1*d2 ) {
        for (size_t j(0); j< d2; ++j ) {
            for (size_t i(j*td1); i< (j+1)*td1; ++i ){
                (*v)[i+k] *= vmulti[j];
            }
        }
    }
    return *this;
}

Here is the call graph for this function:

multid2() [2/2]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::multid2

(

const valarray< complex< T > > &

vmulti

)

Definition at line 2694 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::dim(), Array4D_cmplx< T >::imag(), Array4D_cmplx< T >::td1, and Array4D_cmplx< T >::v.

                                                                                                 {
    for (size_t k(0); k< 2*dim(); k+=td1*d2 ) {
        for (size_t j(0); j< d2; ++j ) {
            for (size_t i(j*td1); i< (j+1)*td1; i+=2 ){
                T vi((*v)[i+k]* vmulti[j].imag());
                (*v)[i+k]    *= vmulti[j].real();                 // v[i]   = Aa
                (*v)[i+k]    -= (*v)[i+k+1] * vmulti[j].imag();   // v[i]   = Aa - Bb
                (*v)[i+k+1]  *= vmulti[j].real();                 // v[i+1] = Ba
                (*v)[i+k+1]  += vi;                        // v[i+1] = Ba + Ab
            }
        }
    }
    return *this;
}

Here is the call graph for this function:

multid2d3d4() [1/2]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::multid2d3d4

(

const Array3D< T > &

vd2d3d4

)

Definition at line 2761 of file lib-array.h.

References Array3D< T >::array(), Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, and Array4D_cmplx< T >::td1.

                                                                                          {
    for (size_t j(0); j < d2*d3*d4; ++j ){
        for (size_t i(j*td1); i< (j+1)*td1; ++i ){
            (*v)[i] *= vd2d3d4.array()[j];
        }
    }
    return *this;
}

Here is the call graph for this function:

multid2d3d4() [2/2]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::multid2d3d4

(

const Array3D_cmplx< T > &

vd2d3d4

)

Definition at line 2772 of file lib-array.h.

References Array3D_cmplx< T >::array(), Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::td1, and Array4D_cmplx< T >::v.

                                                                                                {
    for (size_t j(0); j < d2*d3*d4; ++j ){
        for (size_t i(j*td1); i< (j+1)*td1; i+=2 ){
            T vi((*v)[i]*vd2d3d4.array()[2*j+1]);
            (*v)[i]    *= vd2d3d4.array()[2*j];               // v[i]   = Aa
            (*v)[i]    -= (*v)[i+1]*vd2d3d4.array()[2*j+1];   // v[i]   = Aa - Bb
            (*v)[i+1]  *= vd2d3d4.array()[2*j];               // v[i+1] = Ba
            (*v)[i+1]  += vi;                              // v[i+1] = Ba + Ab
        }
    }
    return *this;
}

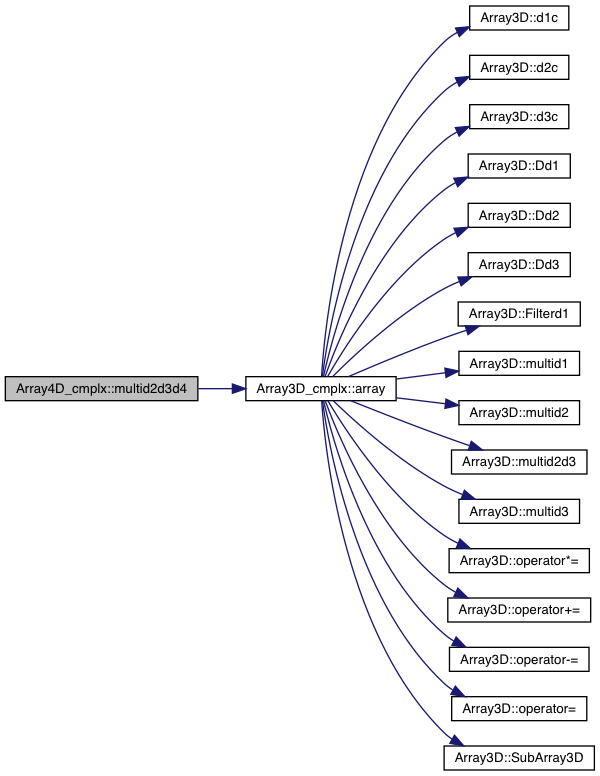

Here is the call graph for this function:

multid3() [1/2]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::multid3

(

const valarray< T > &

vmulti

)

Definition at line 2710 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::dim(), and Array4D_cmplx< T >::td1.

                                                                                      {
    for (size_t l(0); l< 2*dim(); l+=td1*d2*d3) {
        for (size_t k(0); k< d3; ++k) {
            for (size_t i(k*td1*d2); i< (k+1)*td1*d2; ++i ){
                (*v)[i+l] *= vmulti[k];
            }
        }
    }
    return *this;
}

Here is the call graph for this function:

multid3() [2/2]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::multid3

(

const valarray< complex< T > > &

vmulti

)

Definition at line 2721 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::dim(), Array4D_cmplx< T >::imag(), Array4D_cmplx< T >::td1, and Array4D_cmplx< T >::v.

                                                                                                 {
    for (size_t l(0); l< 2*dim(); l+=td1*d2*d3) {
        for (size_t k(0); k< d3; ++k) {
            for (size_t i(k*td1*d2); i< (k+1)*td1*d2; i+=2 ){
                T vi((*v)[i+l]* vmulti[k].imag());
                (*v)[i+l]    *= vmulti[k].real();                 // v[i]   = Aa
                (*v)[i+l]    -= (*v)[i+l+1] * vmulti[k].imag();   // v[i]   = Aa - Bb
                (*v)[i+l+1]  *= vmulti[k].real();                 // v[i+1] = Ba
                (*v)[i+l+1]  += vi;                       // v[i+1] = Ba + Ab
            }
        }
    }
    return *this;
}

Here is the call graph for this function:

multid4() [1/2]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::multid4

(

const valarray< T > &

vmulti

)

Definition at line 2737 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, and Array4D_cmplx< T >::td1.

                                                                                      {
    for (size_t k(0); k< d4; ++k) {
        for (size_t i(k*td1*d2*d3); i< (k+1)*td1*d2*d3; ++i ){
            (*v)[i] *= vmulti[k];
        }
    }
    return *this;
}

multid4() [2/2]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::multid4

(

const valarray< complex< T > > &

vmulti

)

Definition at line 2746 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::imag(), Array4D_cmplx< T >::td1, and Array4D_cmplx< T >::v.

                                                                                                 {
    for (size_t k(0); k< d4; ++k) {
        for (size_t i(k*td1*d2*d3); i< (k+1)*td1*d2*d3; i+=2 ){
            T vi((*v)[i]* vmulti[k].imag());
            (*v)[i]    *= vmulti[k].real();               // v[i]   = Aa
            (*v)[i]    -= (*v)[i+1] * vmulti[k].imag();   // v[i]   = Aa - Bb
            (*v)[i+1]  *= vmulti[k].real();               // v[i+1] = Ba
            (*v)[i+1]  += vi;                          // v[i+1] = Ba + Ab
        }
    }
    return *this;
}

Here is the call graph for this function:

operator*=() [1/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator*=

(

const T &

d

)

Definition at line 2562 of file lib-array.h.

                                                                          {
    (*v) *=d;
    return *this;
}

operator*=() [2/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator*=

(

const complex< T > &

c

)

Definition at line 2567 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::real(), Array4D_cmplx< T >::td1, and Array4D_cmplx< T >::v.

                                                                                   {
    for (size_t i(0); i< td1*d2*d3*d4; i+=2) {            // suppose v[i]+iv[i+1]=A+iB,   c=a+ib
        T vi((*v)[i]*c.imag());
        (*v)[i]    *= c.real();                     // v[i]   = Aa
        (*v)[i]    -= (*v)[i+1]*c.imag();           // v[i]   = Aa - Bb
        (*v)[i+1]  *= c.real();                     // v[i+1] = Ba
        (*v)[i+1]  += vi;                           // v[i+1] = Ba + Ab
    }
    return *this;
}

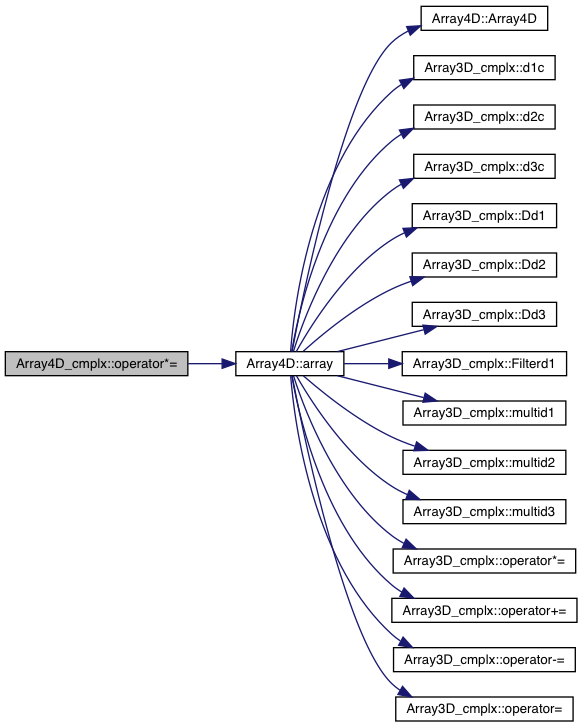

Here is the call graph for this function:

operator*=() [3/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator*=

(

const Array4D< T > &

vmulti

)

Definition at line 2578 of file lib-array.h.

References Array4D< T >::array(), Array4D_cmplx< T >::d1, Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, and Array4D_cmplx< T >::d4.

                                                                                        {
    for (size_t i(0); i< d1*d2*d3*d4; ++i) {
        (*v)[2*i]   *= vmulti.array()[i];
        (*v)[2*i+1] *= vmulti.array()[i];
    }
    return *this;
}

Here is the call graph for this function:

operator*=() [4/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator*=

(

const Array4D_cmplx< T > &

vmulti

)

Definition at line 2586 of file lib-array.h.

References Array4D_cmplx< T >::array(), Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::td1, and Array4D_cmplx< T >::v.

                                                                                           {
    for (size_t i(0); i< td1*d2*d3*d4; i+=2) {            // suppose v[i]+iv[i+1]=A+iB,   vmulti[i] + ivmulti[i+1] = a+ib
        T vi((*v)[i] * vmulti.array()[i+1]);
        (*v)[i]    *=  vmulti.array()[i];              // v[i]   = Aa
        (*v)[i]    -= (*v)[i+1]*vmulti.array()[i+1];   // v[i]   = Aa - Bb
        (*v)[i+1]  *= vmulti.array()[i];               // v[i+1] = Ba
        (*v)[i+1]  += vi;                              // v[i+1] = Ba + Ab
    }
    return *this;
}

Here is the call graph for this function:

operator+=() [1/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator+=

(

const T &

d

)

Definition at line 2599 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, and Array4D_cmplx< T >::td1.

                                                                          {
    for (size_t i(0); i< td1*d2*d3*d4; i+=2) {
        (*v)[i] +=d;
    }
    return *this;
}

operator+=() [2/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator+=

(

const complex< T > &

c

)

Definition at line 2606 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::real(), and Array4D_cmplx< T >::td1.

                                                                                   {
    for (size_t i(0); i< td1*d2*d3*d4; i+=2) {
        (*v)[i]   +=c.real();
        (*v)[i+1] +=c.imag();
    }
    return *this;
}

Here is the call graph for this function:

operator+=() [3/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator+=

(

const Array4D< T > &

vadd

)

Definition at line 2614 of file lib-array.h.

References Array4D< T >::array(), Array4D_cmplx< T >::d1, Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, and Array4D_cmplx< T >::d4.

                                                                                      {
    for (size_t i(0); i< d1*d2*d3*d4; ++i) {
        (*v)[2*i]   += vadd.array()[i];
    }
    return *this;
}

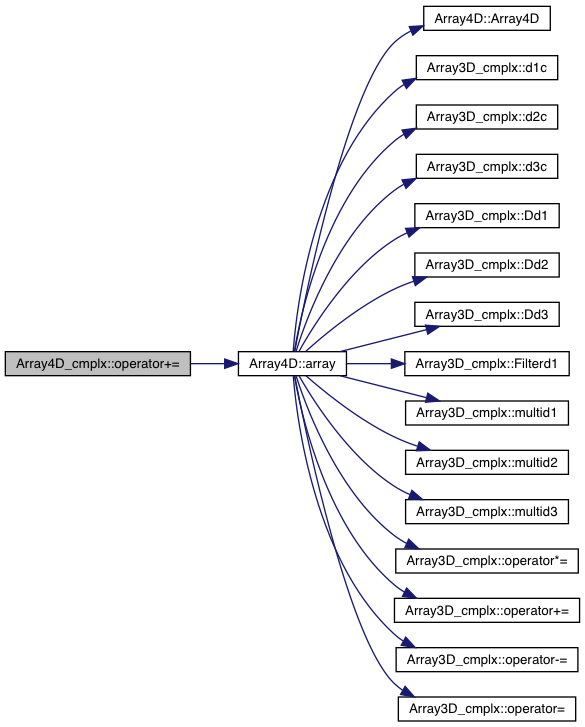

Here is the call graph for this function:

operator+=() [4/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator+=

(

const Array4D_cmplx< T > &

vadd

)

Definition at line 2621 of file lib-array.h.

References Array4D_cmplx< T >::array().

                                                                                         {
    (*v) += vadd.array();
    return *this;
}

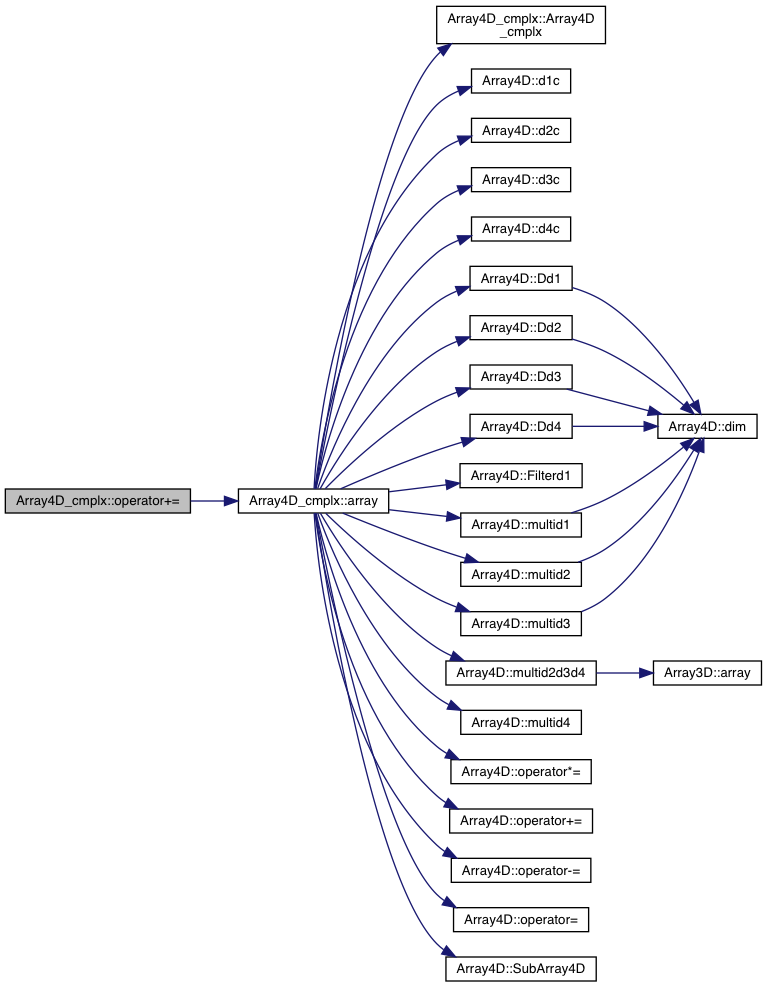

Here is the call graph for this function:

operator-=() [1/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator-=

(

const T &

d

)

Definition at line 2628 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, and Array4D_cmplx< T >::td1.

                                                                          {
    for (size_t i(0); i< td1*d2*d3*d4; i+=2) {
        (*v)[i] -=d;
    }
    return *this;
}

operator-=() [2/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator-=

(

const complex< T > &

c

)

Definition at line 2635 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::real(), and Array4D_cmplx< T >::td1.

                                                                                   {
    for (size_t i(0); i< td1*d2*d3*d4; i+=2) {
        (*v)[i]   -=c.real();
        (*v)[i+1] -=c.imag();
    }
    return *this;
}

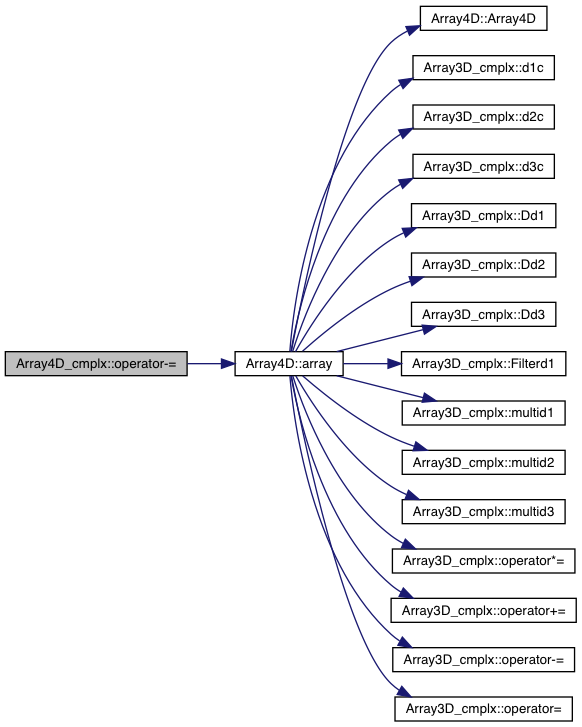

Here is the call graph for this function:

operator-=() [3/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator-=

(

const Array4D< T > &

vmin

)

Definition at line 2643 of file lib-array.h.

References Array4D< T >::array(), Array4D_cmplx< T >::d1, Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, and Array4D_cmplx< T >::d4.

                                                                                      {
    for (size_t i(0); i< d1*d2*d3*d4; ++i) {
        (*v)[2*i]   -= vmin.array()[i];
    }
    return *this;
}

Here is the call graph for this function:

operator-=() [4/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator-=

(

const Array4D_cmplx< T > &

vmin

)

Definition at line 2650 of file lib-array.h.

References Array4D_cmplx< T >::array().

                                                                                         {
    (*v) -= vmin.array();
    return *this;
}

Here is the call graph for this function:

operator=() [1/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator=

(

const T &

d

)

Definition at line 2532 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, and Array4D_cmplx< T >::td1.

                                                                         {
    for (size_t i(0); i< td1*d2*d3*d4; i+=2) {
        (*v)[i] = d;
        (*v)[i+1] = 0.0;
    }
    return *this;
}

operator=() [2/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator=

(

const complex< T > &

c

)

Definition at line 2539 of file lib-array.h.

References Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, Array4D_cmplx< T >::d4, Array4D_cmplx< T >::real(), and Array4D_cmplx< T >::td1.

                                                                                  {
    for (size_t i(0); i< td1*d2*d3*d4; i+=2) {
        (*v)[i]   =c.real();
        (*v)[i+1] =c.imag();
    }
    return *this;
}

Here is the call graph for this function:

operator=() [3/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator=

(

const Array4D< T > &

other

)

Definition at line 2546 of file lib-array.h.

References Array4D< T >::array(), Array4D_cmplx< T >::d1, Array4D_cmplx< T >::d2, Array4D_cmplx< T >::d3, and Array4D_cmplx< T >::d4.

                                                                                      {
    for (size_t i(0); i< d1*d2*d3*d4; ++i) {
        (*v)[2*i]   = other.array()[i];
        (*v)[2*i+1] = 0.0;
    }
    return *this;
}

Here is the call graph for this function:

operator=() [4/4]

template<class T >

Array4D_cmplx< T > & Array4D_cmplx< T >::operator=

(

const Array4D_cmplx< T > &

other

)

Definition at line 2553 of file lib-array.h.

References Array4D_cmplx< T >::array().

                                                                                         {
    if (this != &other) {   //self-assignment
        (*v) = other.array();
    }
    return *this;
}

Here is the call graph for this function:

operator[]() [1/2]

template<class T >

T & Array4D_cmplx< T >::operator[] ( size_t  i )

inline

Definition at line 2414 of file lib-array.h.

References Array4D_cmplx< T >::v.

                                                                 {
    return (*v)[i];
}

operator[]() [2/2]

template<class T >

T Array4D_cmplx< T >::operator[] ( size_t  i ) const

inline

Definition at line 2418 of file lib-array.h.

References Array4D_cmplx< T >::v.

                                                                        {
    return (*v)[i];
}

real() [1/2]

template<class T >

T & Array4D_cmplx< T >::real ( size_t  i, size_t  j, size_t  k, size_t  l  )

inline

Definition at line 2422 of file lib-array.h.

References Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

Referenced by Array4D_cmplx< T >::operator*=(), Array4D_cmplx< T >::operator+=(), Array4D_cmplx< T >::operator-=(), and Array4D_cmplx< T >::operator=().

                                                                                     {
    return (*v)[2*i+j*td1+k*td1d2+l*td1d2d3];
}

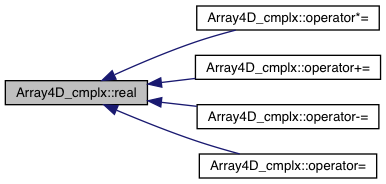

Here is the caller graph for this function:

real() [2/2]

template<class T >

T Array4D_cmplx< T >::real ( size_t  i, size_t  j, size_t  k, size_t  l  ) const

inline

Definition at line 2426 of file lib-array.h.

References Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                                                          {
    return (*v)[2*i+j*td1+k*td1d2+l*td1d2d3];
}

SubArray4D() [1/2]

template<class T >

GSlice_iter< T > Array4D_cmplx< T >::SubArray4D ( size_t  st, size_t  nx, size_t  ny, size_t  nz, size_t  nw  )

inline

Definition at line 2511 of file lib-array.h.

References Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

Referenced by Array4D_cmplx< T >::d4c().

                                                                 {
    valarray<size_t> sz(4), str(4);
    str[3] = 1;   str[2] = td1;  str[1] = td1d2; str[0] = td1d2d3;
    sz[3]  = 2*nx;  sz[2]  = ny;  sz[1]  = nz;   sz[0]  = nw;
    return GSlice_iter<T>(v,gslice(2*st,sz,str));
}

Here is the caller graph for this function:

SubArray4D() [2/2]

template<class T >

CGSlice_iter< T > Array4D_cmplx< T >::SubArray4D ( size_t  st, size_t  nx, size_t  ny, size_t  nz, size_t  nw  ) const

inline

Definition at line 2521 of file lib-array.h.

References Array4D_cmplx< T >::td1, Array4D_cmplx< T >::td1d2, Array4D_cmplx< T >::td1d2d3, and Array4D_cmplx< T >::v.

                                                                       {
    valarray<size_t> sz(4), str(4);
    str[3] = 1;   str[2] = td1;  str[1] = td1d2; str[0] = td1d2d3;
    sz[3]  = 2*nx;  sz[2]  = ny;  sz[1]  = nz;   sz[0]  = nw;
    return CGSlice_iter<T>(v,gslice(2*st,sz,str));
}

Field Documentation

d1

template<class T >

size_t Array4D_cmplx< T >::d1

private

Definition at line 2295 of file lib-array.h.

Referenced by Array4D_cmplx< T >::Array4D_cmplx(), Array4D_cmplx< T >::multid1(), Array4D_cmplx< T >::operator*=(), Array4D_cmplx< T >::operator+=(), Array4D_cmplx< T >::operator-=(), and Array4D_cmplx< T >::operator=().

d2

template<class T >

size_t Array4D_cmplx< T >::d2

private

Definition at line 2295 of file lib-array.h.

Referenced by Array4D_cmplx< T >::Array4D_cmplx(), Array4D_cmplx< T >::d1c(), Array4D_cmplx< T >::Filterd1(), Array4D_cmplx< T >::multid2(), Array4D_cmplx< T >::multid2d3d4(), Array4D_cmplx< T >::multid3(), Array4D_cmplx< T >::multid4(), Array4D_cmplx< T >::operator*=(), Array4D_cmplx< T >::operator+=(), Array4D_cmplx< T >::operator-=(), and Array4D_cmplx< T >::operator=().

d3

template<class T >

size_t Array4D_cmplx< T >::d3

private

Definition at line 2295 of file lib-array.h.

Referenced by Array4D_cmplx< T >::Array4D_cmplx(), Array4D_cmplx< T >::d1c(), Array4D_cmplx< T >::d2c(), Array4D_cmplx< T >::Filterd1(), Array4D_cmplx< T >::multid2d3d4(), Array4D_cmplx< T >::multid3(), Array4D_cmplx< T >::multid4(), Array4D_cmplx< T >::operator*=(), Array4D_cmplx< T >::operator+=(), Array4D_cmplx< T >::operator-=(), and Array4D_cmplx< T >::operator=().

d4

template<class T >

size_t Array4D_cmplx< T >::d4

private

Definition at line 2295 of file lib-array.h.

Referenced by Array4D_cmplx< T >::Array4D_cmplx(), Array4D_cmplx< T >::d1c(), Array4D_cmplx< T >::d2c(), Array4D_cmplx< T >::d3c(), Array4D_cmplx< T >::Filterd1(), Array4D_cmplx< T >::multid2d3d4(), Array4D_cmplx< T >::multid4(), Array4D_cmplx< T >::operator*=(), Array4D_cmplx< T >::operator+=(), Array4D_cmplx< T >::operator-=(), and Array4D_cmplx< T >::operator=().

td1

template<class T >

size_t Array4D_cmplx< T >::td1

private

Definition at line 2296 of file lib-array.h.

Referenced by Array4D_cmplx< T >::Array4D_cmplx(), Array4D_cmplx< T >::d1c(), Array4D_cmplx< T >::d2c(), Array4D_cmplx< T >::Dd2(), Array4D_cmplx< T >::Filterd1(), Array4D_cmplx< T >::imag(), Array4D_cmplx< T >::multid1(), Array4D_cmplx< T >::multid2(), Array4D_cmplx< T >::multid2d3d4(), Array4D_cmplx< T >::multid3(), Array4D_cmplx< T >::multid4(), Array4D_cmplx< T >::operator*=(), Array4D_cmplx< T >::operator+=(), Array4D_cmplx< T >::operator-=(), Array4D_cmplx< T >::operator=(), Array4D_cmplx< T >::real(), and Array4D_cmplx< T >::SubArray4D().

td1d2

template<class T >

size_t Array4D_cmplx< T >::td1d2

private

Definition at line 2297 of file lib-array.h.

Referenced by Array4D_cmplx< T >::Array4D_cmplx(), Array4D_cmplx< T >::d1c(), Array4D_cmplx< T >::d2c(), Array4D_cmplx< T >::d3c(), Array4D_cmplx< T >::Dd3(), Array4D_cmplx< T >::imag(), Array4D_cmplx< T >::real(), and Array4D_cmplx< T >::SubArray4D().

td1d2d3

template<class T >

size_t Array4D_cmplx< T >::td1d2d3

private

Definition at line 2298 of file lib-array.h.

Referenced by Array4D_cmplx< T >::Array4D_cmplx(), Array4D_cmplx< T >::d1c(), Array4D_cmplx< T >::d2c(), Array4D_cmplx< T >::d3c(), Array4D_cmplx< T >::d4c(), Array4D_cmplx< T >::Dd4(), Array4D_cmplx< T >::imag(), Array4D_cmplx< T >::real(), and Array4D_cmplx< T >::SubArray4D().

v

template<class T >

valarray<T>* Array4D_cmplx< T >::v

private

Definition at line 2294 of file lib-array.h.

Referenced by Array4D_cmplx< T >::Array4D_cmplx(), Array4D_cmplx< T >::d1c(), Array4D_cmplx< T >::d2c(), Array4D_cmplx< T >::d3c(), Array4D_cmplx< T >::d4c(), Array4D_cmplx< T >::imag(), Array4D_cmplx< T >::multid1(), Array4D_cmplx< T >::multid2(), Array4D_cmplx< T >::multid2d3d4(), Array4D_cmplx< T >::multid3(), Array4D_cmplx< T >::multid4(), Array4D_cmplx< T >::operator*=(), Array4D_cmplx< T >::operator[](), Array4D_cmplx< T >::real(), Array4D_cmplx< T >::SubArray4D(), and Array4D_cmplx< T >::~Array4D_cmplx().

---

The documentation for this class was generated from the following file:

• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/lib-array.h
