Array2D< T > Class Template Reference

#include <lib-array.h>

Public Member Functions
	Array2D (size_t x, size_t y)
	Array2D (const Array2D &other)
	~Array2D ()
size_t	dim () const
size_t	dim1 () const
size_t	dim2 () const
valarray< T > &	array () const
T &	operator() (size_t i, size_t j)
T	operator() (size_t i, size_t j) const
T &	operator() (size_t i)
T	operator() (size_t i) const
vector< T >	d2c (size_t j)
GSlice_iter< T >	d1c (size_t b, size_t e)
GSlice_iter< T >	d2c (size_t b, size_t e)
GSlice_iter< T >	SubArray2D (size_t st, size_t nx, size_t ny)
CGSlice_iter< T >	d2c (size_t b, size_t e) const
CGSlice_iter< T >	d1c (size_t b, size_t e) const
CGSlice_iter< T >	SubArray2D (size_t st, size_t nx, size_t ny) const
Array2D &	operator= (const T &d)
Array2D &	operator= (const Array2D &other)
Array2D &	operator*= (const T &d)
Array2D &	operator*= (const Array2D &vmulti)
Array2D &	operator+= (const T &d)
Array2D &	operator+= (const Array2D &vadd)
Array2D &	operator-= (const T &d)
Array2D &	operator-= (const Array2D &vmin)
Array2D &	multid1 (const valarray< T > &vmulti)
Array2D &	multid2 (const valarray< T > &vmulti)
Array2D &	Dd1 ()
Array2D &	Dd2 ()
Array2D &	Filterd1 (size_t N)

Private Attributes
valarray< T > *	v
size_t	d1
size_t	d2

Detailed Description

template<class T>
class Array2D< T >

Definition at line 273 of file lib-array.h.

Constructor & Destructor Documentation

Array2D() [1/2]

template<class T >

Array2D< T >::Array2D	(	size_t	x,
		size_t	y
	)

Definition at line 337 of file lib-array.h.

                                                        : d1(x), d2(y) {
    v = new valarray<T>(d1*d2);
}

Array2D() [2/2]

template<class T >

Array2D< T >::Array2D

(

const Array2D< T > &

other

)

Definition at line 341 of file lib-array.h.

                                                          {
    d1  = other.dim1();
    d2  = other.dim2();
    v = new valarray<T>(d1*d2);
    (*v) = other.array();
}

~Array2D()

template<class T >

Array2D< T >::~Array2D

(

)

Definition at line 348 of file lib-array.h.

                                       {
    delete v;
}

Member Function Documentation

array()

template<class T>

valarray<T>& Array2D< T >::array ( ) const

inline

Definition at line 291 of file lib-array.h.

Referenced by Array2D< complex< double > >::Array2D(), Export_Files::Xport::Export_h5(), Array3D< complex< double > >::multid2d3(), Array3D_cmplx< T >::multid2d3(), Array2D< complex< double > >::operator*=(), Array2D_cmplx< T >::operator*=(), Array2D< complex< double > >::operator+=(), Array2D_cmplx< T >::operator+=(), Array2D< complex< double > >::operator-=(), Array2D_cmplx< T >::operator-=(), Array2D< complex< double > >::operator=(), and Array2D_cmplx< T >::operator=().

{return *v;}

Here is the caller graph for this function:

d1c() [1/2]

template<class T >

GSlice_iter< T > Array2D< T >::d1c ( size_t  b, size_t  e  )

inline

Definition at line 384 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array().

                                                       {
    valarray<size_t> sz(2), str(2);
    str[1] = d1; str[0] = 1;
    sz[1]  = d2;  sz[0] = e-b+1;
    return GSlice_iter<T>(v,gslice(b,sz,str));
}

Here is the caller graph for this function:

d1c() [2/2]

template<class T >

CGSlice_iter< T > Array2D< T >::d1c ( size_t  b, size_t  e  ) const

inline

Definition at line 392 of file lib-array.h.

                                                              {
    valarray<size_t> sz(2), str(2);
    str[1] = d1; str[0] = 1;
    sz[1]  = d2;  sz[0] = e-b+1;
    return CGSlice_iter<T>(v,gslice(b,sz,str));
}

d2c() [1/3]

template<class T >

vector< T > Array2D< T >::d2c

(

size_t

j

)

Definition at line 372 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array().

                                                   {
    vector<T> d1vec(d1);
    for (size_t i(0); i < d1; ++i ){
        d1vec[i] = (*v)[i+j*d1];
    }
    return d1vec;
}

Here is the caller graph for this function:

d2c() [2/3]

template<class T >

GSlice_iter< T > Array2D< T >::d2c ( size_t  b, size_t  e  )

inline

Definition at line 400 of file lib-array.h.

                                                       {
    valarray<size_t> sz(1), str(1);     // sz --> size, str --> stride
    str[0] = 1; sz[0]  = (e-b+1)*d1;
    return GSlice_iter<T>(v,gslice(b*d1,sz,str));
}

d2c() [3/3]

template<class T >

CGSlice_iter< T > Array2D< T >::d2c ( size_t  b, size_t  e  ) const

inline

Definition at line 407 of file lib-array.h.

                                                              {
    valarray<size_t> sz(1), str(1);     // sz --> size, str --> stride
    str[0] = 1; sz[0]  = (e-b+1)*d1;
    return CGSlice_iter<T>(v,gslice(b*d1,sz,str));
}

Dd1()

template<class T >

Array2D< T > & Array2D< T >::Dd1

(

)

Definition at line 507 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array(), and SHarmonic1D::Dp().

                                             {
    for(long i(0); i< long(d1*d2)-2; ++i) {
        (*v)[i] -= (*v)[i+2];
    }
    for(long i(d1*d2-3); i>-1; --i) {
        (*v)[i+1] = (*v)[i];
    }


   //  Array2D<T> temp(*this);

   //  for (long i2(0); i2<long(d2);++i2){


   //      /// Second Order
   //      temp(0,i2) = 2.0*((*this)(0,i2)-(*this)(1,i2));



   //      // temp(i1,1) = 1.0/12.0*((*this)(i1,4)-6.0*(*this)(i1,3)+18.0*(*this)(i1,2)-10.0*(*this)(i1,1)-3.0*(*this)(i1,0));

   //      for (long i1(1); i1<long(d1)-1;++i1){
   //          // temp(i1,i2) = 1.0/12.0*(-(*this)(i1,i2+2)+8.0*(*this)(i1,i2+1)-8.0*(*this)(i1,i2-1)+(*this)(i1,i2-2));

   //          /// Second Order
   //          temp(i1,i2) = (*this)(i1-1,i2) - (*this)(i1+1,i2);
   //      }




   //      // temp(i1,long(d2)-2) = 1.0/12.0*(3.0*(*this)(i1,long(d2)-1)+10.0*(*this)(i1,long(d2)-2)-18.0*(*this)(i1,long(d2)-3)+6.0*(*this)(i1,long(d2)-4)-(*this)(i1,long(d2)-5));
   //      // temp(i1,long(d2)-1) = (*this)(i1,long(d2)-1)-(*this)(i1,long(d2)-2);

   //      /// Second Order
   //      temp(long(d1)-1,i2) = 2.0*((*this)(long(d1)-2,i2)-(*this)(long(d1)-1,i2));
   // }

   // *this = temp;
    return *this;

}

Here is the caller graph for this function:

Dd2()

template<class T >

Array2D< T > & Array2D< T >::Dd2

(

)

Has boundary errors unless boundary cells increased for each RK level

Definition at line 556 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array(), SHarmonic1D::Dx(), and SHarmonic2D::Dx().

                                             {
   //  Array2D<T> temp(*this);

   //  for (long i1(0); i1<long(d1);++i1){
   //      /// Second Order
   //      temp(i1,0) = 2.0*((*this)(i1,0)-(*this)(i1,1));
   //      // std::cout << "this(" << i1 << ")" << (*this)(i1,0) << "\n";
   //      // std::cout << "temp(" << i1 << ")" << temp(i1,0) << "\n";

   //      // temp(i1,1) = 1.0/12.0*((*this)(i1,4)-6.0*(*this)(i1,3)+18.0*(*this)(i1,2)-10.0*(*this)(i1,1)-3.0*(*this)(i1,0));
   //      for (long i2(1); i2<long(d2)-1;++i2){
   //          // temp(i1,i2) = 1.0/12.0*(-(*this)(i1,i2+2)+8.0*(*this)(i1,i2+1)-8.0*(*this)(i1,i2-1)+(*this)(i1,i2-2));
   //          /// Second Order
   //          temp(i1,i2) = (*this)(i1,i2-1) - (*this)(i1,i2+1);
   //          // std::cout << "this(" << i1 << "," << i2 << ")" << (*this)(i1,i2) << "\n";
   //      }
   //      // temp(i1,long(d2)-2) = 1.0/12.0*(3.0*(*this)(i1,long(d2)-1)+10.0*(*this)(i1,long(d2)-2)-18.0*(*this)(i1,long(d2)-3)+6.0*(*this)(i1,long(d2)-4)-(*this)(i1,long(d2)-5));
   //      // temp(i1,long(d2)-1) = (*this)(i1,long(d2)-1)-(*this)(i1,long(d2)-2);
   //      /// Second Order
   //      temp(i1,long(d2)-1) = 2.0*((*this)(i1,long(d2)-2)-(*this)(i1,long(d2)-1));
   //      // std::cout << "this(" << i1 << "," << long(d2)-1 << ")" << (*this)(i1,long(d2)-1) << "\n";
   // }

   // *this = temp;
   //  return *this;


   // std::cout << "\n d1*d2-twod1 = " << long(d1*d2)-2*d1 << "\n";

   long twod1(2*d1);
    for(long i(0); i< long(d1*d2)-twod1; ++i) {
        // std::cout << "v[" << i << "] = " << (*v)[i]
        // <<  ", v[" << i+twod1 << "] = " << (*v)[i+twod1] << "\n";

        (*v)[i] -= (*v)[i+twod1];
    }

    for(long i(d1*d2-twod1-1); i>-1; --i) {
        (*v)[i+d1] = (*v)[i];
    }
    return *this;
}

Here is the caller graph for this function:

dim()

template<class T>

size_t Array2D< T >::dim ( ) const

inline

Definition at line 288 of file lib-array.h.

{return d1*d2;}

dim1()

template<class T>

size_t Array2D< T >::dim1 ( ) const

inline

Definition at line 289 of file lib-array.h.

Referenced by interspecies_flm_implicit_step::advance(), self_flm_implicit_step::advance(), Array2D< complex< double > >::Array2D(), Export_Files::Xport::Export_h5(), Gauss_Seidel(), Array2D< complex< double > >::SubArray2D(), and Thomas_Tridiagonal().

{return d1;}

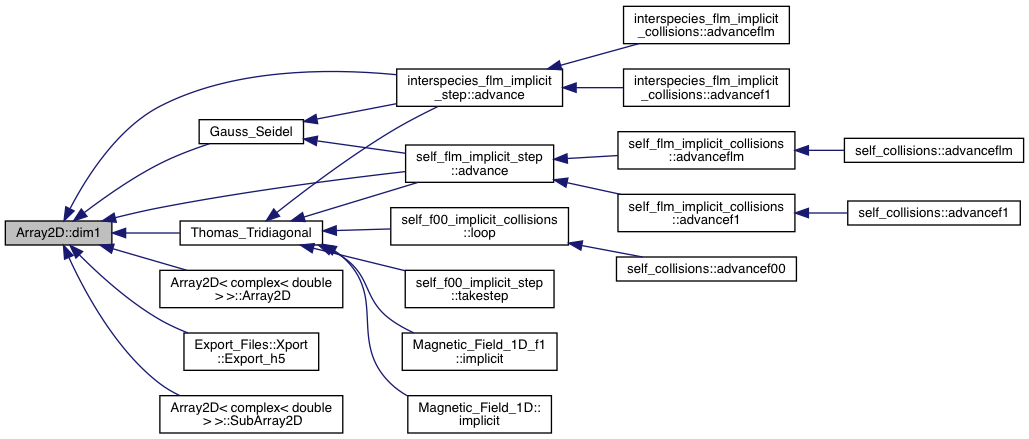

Here is the caller graph for this function:

dim2()

template<class T>

size_t Array2D< T >::dim2 ( ) const

inline

Definition at line 290 of file lib-array.h.

Referenced by interspecies_flm_implicit_step::advance(), self_flm_implicit_step::advance(), Array2D< complex< double > >::Array2D(), Export_Files::Xport::Export_h5(), Gauss_Seidel(), and Thomas_Tridiagonal().

{return d2;}

Here is the caller graph for this function:

Filterd1()

template<class T >

Array2D< T > & Array2D< T >::Filterd1

(

size_t

N

)

Definition at line 604 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array(), SHarmonic1D::Filterp(), and SHarmonic2D::Filterp().

                                                           {
    for (size_t j(0); j < d2; ++j ){
        for (size_t i(j*d1); i< j*d1+N; ++i ){
            (*v)[i] = 0.0;
        }
    }
    return *this;
}

Here is the caller graph for this function:

multid1()

template<class T>

Array2D< T > & Array2D< T >::multid1

(

const valarray< T > &

vmulti

)

Definition at line 480 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array().

                                                                          {
    for (size_t j(0); j< d1*d2; j+=d1 ){
        for (size_t i(0); i< d1; ++i ){
            (*v)[i+j] *= vmulti[i];
        }
    }
    return *this;
}

Here is the caller graph for this function:

multid2()

template<class T>

Array2D< T > & Array2D< T >::multid2

(

const valarray< T > &

vmulti

)

Definition at line 490 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array().

                                                                          {
    for (size_t j(0); j< d2; ++j ){
        for (size_t i(j*d1); i< (j+1)*d1; ++i ){
            (*v)[i] *= vmulti[j];
        }
    }
    return *this;
}

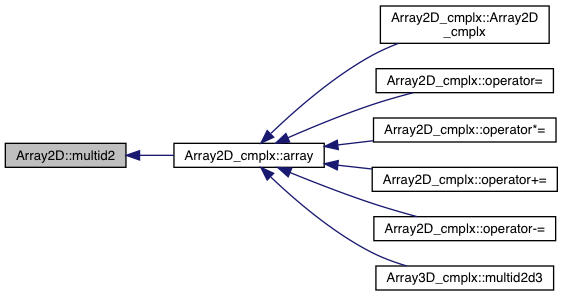

Here is the caller graph for this function:

operator()() [1/4]

template<class T >

T & Array2D< T >::operator() ( size_t  i, size_t  j  )

inline

Definition at line 356 of file lib-array.h.

                                                                     {
    return (*v)[i+j*d1];
}

operator()() [2/4]

template<class T >

T Array2D< T >::operator() ( size_t  i, size_t  j  ) const

inline

Definition at line 360 of file lib-array.h.

                                                                           {
    return (*v)[i+j*d1];
}

operator()() [3/4]

template<class T >

T & Array2D< T >::operator() ( size_t  i )

inline

Definition at line 364 of file lib-array.h.

                                                            {
    return (*v)[i];
}

operator()() [4/4]

template<class T >

T Array2D< T >::operator() ( size_t  i ) const

inline

Definition at line 368 of file lib-array.h.

                                                                   {
    return (*v)[i];
}

operator*=() [1/2]

template<class T>

Array2D< T > & Array2D< T >::operator*=

(

const T &

d

)

Definition at line 447 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array().

                                                              {
    (*v) *=d;
    return *this;
}

Here is the caller graph for this function:

operator*=() [2/2]

template<class T>

Array2D< T > & Array2D< T >::operator*=

(

const Array2D< T > &

vmulti

)

Definition at line 451 of file lib-array.h.

                                                                         {
    (*v) *= vmulti.array();
    return *this;
}

operator+=() [1/2]

template<class T>

Array2D< T > & Array2D< T >::operator+=

(

const T &

d

)

Definition at line 457 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array().

                                                              {
    (*v) +=d;
    return *this;
}

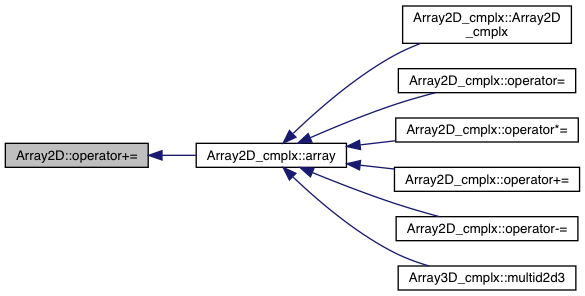

Here is the caller graph for this function:

operator+=() [2/2]

template<class T>

Array2D< T > & Array2D< T >::operator+=

(

const Array2D< T > &

vadd

)

Definition at line 461 of file lib-array.h.

                                                                       {
    (*v) += vadd.array();
    return *this;
}

operator-=() [1/2]

template<class T>

Array2D< T > & Array2D< T >::operator-=

(

const T &

d

)

Definition at line 467 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array().

                                                              {
    (*v) -=d;
    return *this;
}

Here is the caller graph for this function:

operator-=() [2/2]

template<class T>

Array2D< T > & Array2D< T >::operator-=

(

const Array2D< T > &

vmin

)

Definition at line 471 of file lib-array.h.

                                                                       {
    (*v) -= vmin.array();
    return *this;
}

operator=() [1/2]

template<class T>

Array2D< T > & Array2D< T >::operator=

(

const T &

d

)

Definition at line 435 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array().

                                                             {
    (*v) = d;
    return *this;
}

Here is the caller graph for this function:

operator=() [2/2]

template<class T>

Array2D< T > & Array2D< T >::operator=

(

const Array2D< T > &

other

)

Definition at line 439 of file lib-array.h.

                                                                       {
    if (this != &other) {   //self-assignment
        (*v) = other.array();
    }
    return *this;
}

SubArray2D() [1/2]

template<class T >

GSlice_iter< T > Array2D< T >::SubArray2D ( size_t  st, size_t  nx, size_t  ny  )

inline

Definition at line 416 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array().

                                                                            {
    valarray<size_t> sz(2), str(2);
    str[1] = 1;  str[0] = dim1();
    sz[1]  = nx;  sz[0] = ny;
    return GSlice_iter<T>(v,gslice(st,sz,str));
}

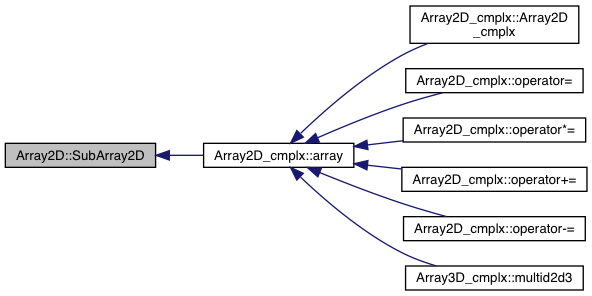

Here is the caller graph for this function:

SubArray2D() [2/2]

template<class T >

CGSlice_iter< T > Array2D< T >::SubArray2D ( size_t  st, size_t  nx, size_t  ny  ) const

inline

Definition at line 424 of file lib-array.h.

                                                                                  {
    valarray<size_t> sz(2), str(2);
    str[1] = 1;  str[0] = dim1();
    sz[1]  = nx;  sz[0] = ny;
    return CGSlice_iter<T>(v,gslice(st,sz,str));
}

Field Documentation

d1

template<class T>

size_t Array2D< T >::d1

private

Definition at line 279 of file lib-array.h.

Referenced by Array2D< complex< double > >::Array2D(), Array2D< complex< double > >::d1c(), Array2D< complex< double > >::d2c(), Array2D< complex< double > >::Dd1(), Array2D< complex< double > >::Dd2(), Array2D_cmplx< T >::dim1(), Array2D< complex< double > >::Filterd1(), Array2D< complex< double > >::multid1(), Array2D< complex< double > >::multid2(), and Array2D< complex< double > >::operator()().

d2

template<class T>

size_t Array2D< T >::d2

private

Definition at line 279 of file lib-array.h.

Referenced by Array2D< complex< double > >::Array2D(), Array2D< complex< double > >::d1c(), Array2D< complex< double > >::Dd1(), Array2D< complex< double > >::Dd2(), Array2D_cmplx< T >::dim(), Array2D_cmplx< T >::dim2(), Array2D< complex< double > >::Filterd1(), Array2D< complex< double > >::multid1(), and Array2D< complex< double > >::multid2().

v

template<class T>

valarray<T>* Array2D< T >::v

private

Definition at line 278 of file lib-array.h.

Referenced by Array2D_cmplx< T >::array(), Array2D< complex< double > >::Array2D(), Array2D< complex< double > >::d1c(), Array2D< complex< double > >::d2c(), Array2D< complex< double > >::operator()(), Array2D< complex< double > >::SubArray2D(), and Array2D< complex< double > >::~Array2D().

---

The documentation for this class was generated from the following file:

• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/lib-array.h
