Parallel_Environment_1D Class Reference

#include <parallel.h>

Collaboration diagram for Parallel_Environment_1D:

Public Member Functions
	Parallel_Environment_1D ()
	~Parallel_Environment_1D ()
int	RANK () const
int	NODES () const
int	BNDX () const
void	Neighbor_ImplicitE_Communications (State1D &Y)
void	Neighbor_Communications (State1D &Y)

Private Member Functions
bool	error_check ()

Private Attributes
int	rank
int	Nnodes
int	bndX
Node_ImplicitE_Communications	Bfield_Data
Node_Communications	X_Data

Detailed Description

Definition at line 130 of file parallel.h.

Constructor & Destructor Documentation

Parallel_Environment_1D()

Parallel_Environment_1D::Parallel_Environment_1D

(

)

Definition at line 1023 of file parallel.cpp.

References Input::Input_List::BoundaryCells, error_check(), Input::Input_List::globdx, Input::List(), Nnodes, Input::Input_List::NxLocal, Input::Input_List::NxLocalnobnd, rank, Input::Input_List::xmaxLocal, Input::Input_List::xminGlobal, and Input::Input_List::xminLocal.

                                                  :
//--------------------------------------------------------------
//  Constructor, domain decomposition
//--------------------------------------------------------------
        bndX(Input::List().bndX),           // Type of boundary
        Nnodes(Input::List().NnodesX)   // Number of nodes in X-direction
{
    // Determination of the rank and size of the run
    MPI_Comm_size(MPI_COMM_WORLD, &Nnodes);
    MPI_Comm_rank(MPI_COMM_WORLD, &rank);

    if (error_check()) {MPI_Finalize(); exit(1);}

    // Determination of the local computational domain (i.e. the x-axis and the y-axis)

    for(size_t i(0); i < Input::List().xminLocal.size(); ++i) {

        Input::List().xminLocal[i] = Input::List().xminGlobal[i]
                                     + rank * Input::List().NxLocalnobnd[i] * Input::List().globdx[i]
                                     - Input::List().BoundaryCells * Input::List().globdx[i];
        Input::List().xmaxLocal[i] = Input::List().xminLocal[i]
                                     + (Input::List().NxLocal[i]) * Input::List().globdx[i];
    }

    // Restart files will be generated when output_step % restart_step == 0
//          if ( ( (Input::List().n_outsteps + 1) >  Input::List().n_restarts ) &&
//                (Input::List().n_restarts > 0)  ) {
//               restart_step = Input::List().n_outsteps / Input::List().n_restarts ;
//          }
//          else restart_step = -1;
//          if ( Input::List().restart_time > Input::List().n_restarts ) {
//              restart_time = 0;
//          }
//          else restart_time = Input::List().restart_time;

}

Here is the call graph for this function:

~Parallel_Environment_1D()

Parallel_Environment_1D::~Parallel_Environment_1D

(

)

Definition at line 1062 of file parallel.cpp.

{ }

Member Function Documentation

BNDX()

int Parallel_Environment_1D::BNDX

(

)

const

Definition at line 1094 of file parallel.cpp.

References bndX.

Referenced by Neighbor_Communications(), and Neighbor_ImplicitE_Communications().

{return bndX;}

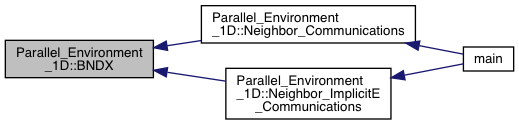

Here is the caller graph for this function:

error_check()

bool Parallel_Environment_1D::error_check ( )

private

Definition at line 1066 of file parallel.cpp.

References Input::List(), Nnodes, Input::Input_List::NnodesX, and rank.

Referenced by Parallel_Environment_1D().

                                           {
//--------------------------------------------------------------
//  Temporary error check
//--------------------------------------------------------------

    // Test the number of cells
    if (rank == 0){
        if (Input::List().NxLocal[0] < 2*Input::List().BoundaryCells+2){
            std::cout << "Not enough cells per processor" << endl;
            return true;
        }
        if ( Nnodes != (Input::List().NnodesX) ) {
            std:: cout << "the number of nodes in the input deck is "
                       << (Input::List().NnodesX) << ", terminating ..." << endl;
            return true;
        }
    }
    return false;
}

Here is the call graph for this function:

Here is the caller graph for this function:

Neighbor_Communications()

void Parallel_Environment_1D::Neighbor_Communications

(

State1D &

Y

)

Update node "0" in the x direction

(Send) 0 –> 1

(Receive) 0 <– 1

// Update node "NODES()" in the x direction

(Receive) 0 <– 1

Update node "0" in the x direction

(Send) 0 –> 1

(Receive) 0 <– 1

// Update node "NODES()" in the x direction

Definition at line 1151 of file parallel.cpp.

References BNDX(), Node_Communications::mirror_bound_Xleft(), Node_Communications::mirror_bound_Xright(), NODES(), RANK(), Node_Communications::Recv_from_left_X(), Node_Communications::Recv_from_right_X(), Node_Communications::sameNode_bound_X(), Node_Communications::Send_left_X(), Node_Communications::Send_right_X(), and X_Data.

Referenced by main().

                                                                {
//--------------------------------------------------------------
//  Information exchange between neighbors
//--------------------------------------------------------------

    int moduloX(RANK() % 2);
    int RNx((RANK() + 1) % NODES()),         // This is the right neighbor
            LNx((RANK() - 1 + NODES()) % NODES()); // This is the left  neighbor

    if (NODES() > 1) {
        //even nodes
//        if (moduloX==0){
        if (BNDX() == 0) {
            if (((RANK() != 0) && (RANK() != NODES() - 1))) {
                X_Data.Send_right_X(Y, RNx);                  //   (Send) 0 --> 1
                X_Data.Recv_from_left_X(Y, LNx);          //          1 --> 0 (Receive)
                X_Data.Send_left_X(Y, LNx);               //          1 <-- 0 (Send)
                X_Data.Recv_from_right_X(Y, RNx);               // (Receive) 0 <-- 1
            } else if (RANK() == 0) {
                X_Data.Recv_from_left_X(Y, NODES() - 1);          //          1 --> 0 (Receive)
                X_Data.Send_left_X(Y, NODES() - 1);               //          1 <-- 0 (Send)
                X_Data.Send_right_X(Y, RNx);
                X_Data.Recv_from_right_X(Y, RNx);
            } else if (RANK() == NODES() - 1) {
                X_Data.Send_right_X(Y, 0);                  //   (Send) 0 --> 1
                X_Data.Recv_from_right_X(Y, 0);
                X_Data.Recv_from_left_X(Y, LNx);          //          1 --> 0 (Receive)
                X_Data.Send_left_X(Y, LNx);               //          1 <-- 0 (Send)
            }
        } else if (BNDX() == 1) {
            if (((RANK() != 0) && (RANK() != NODES() - 1))) {
                X_Data.Send_right_X(Y, RNx);                  //   (Send) 0 --> 1
                X_Data.Recv_from_left_X(Y, LNx);          //          1 --> 0 (Receive)
                X_Data.Send_left_X(Y, LNx);               //          1 <-- 0 (Send)
                X_Data.Recv_from_right_X(Y, RNx);               // (Receive) 0 <-- 1
            } else if (RANK() == 0) {
                X_Data.mirror_bound_Xleft(Y);
                X_Data.Send_right_X(Y, RNx);
                X_Data.Recv_from_right_X(Y, RNx);
            } else if (RANK() == NODES() - 1) {
                X_Data.mirror_bound_Xright(Y);
                X_Data.Recv_from_left_X(Y, LNx);          //          1 --> 0 (Receive)
                X_Data.Send_left_X(Y, LNx);               //          1 <-- 0 (Send)
            }

        } else {
            cout << "Invalid Boundary." << endl;
        }

//            //odd nodes
//        else {
//            X_Data.Recv_from_left_X(Y,LNx);               //           0 --> 1 (Receive)
//            if ((RANK()!=(NODES()-1)) || (BNDX()==0)){
//                X_Data.Send_right_X(Y,RNx);              //   (Send)  1 --> 0
//                X_Data.Recv_from_right_X(Y,RNx);         // (Receive) 1 <-- 0
//            }
//            else {
//                if (BNDX()==1) {
//                    X_Data.mirror_bound_Xright(Y);        // Update node "N-1" in the x direction
//                }
//                else {
//                    cout<<"Invalid Boundary." << endl;
//                }
//            }
//            X_Data.Send_left_X(Y,LNx);                    //           0 <-- 1 (Send)
//        }
    } else { X_Data.sameNode_bound_X(Y); }

}

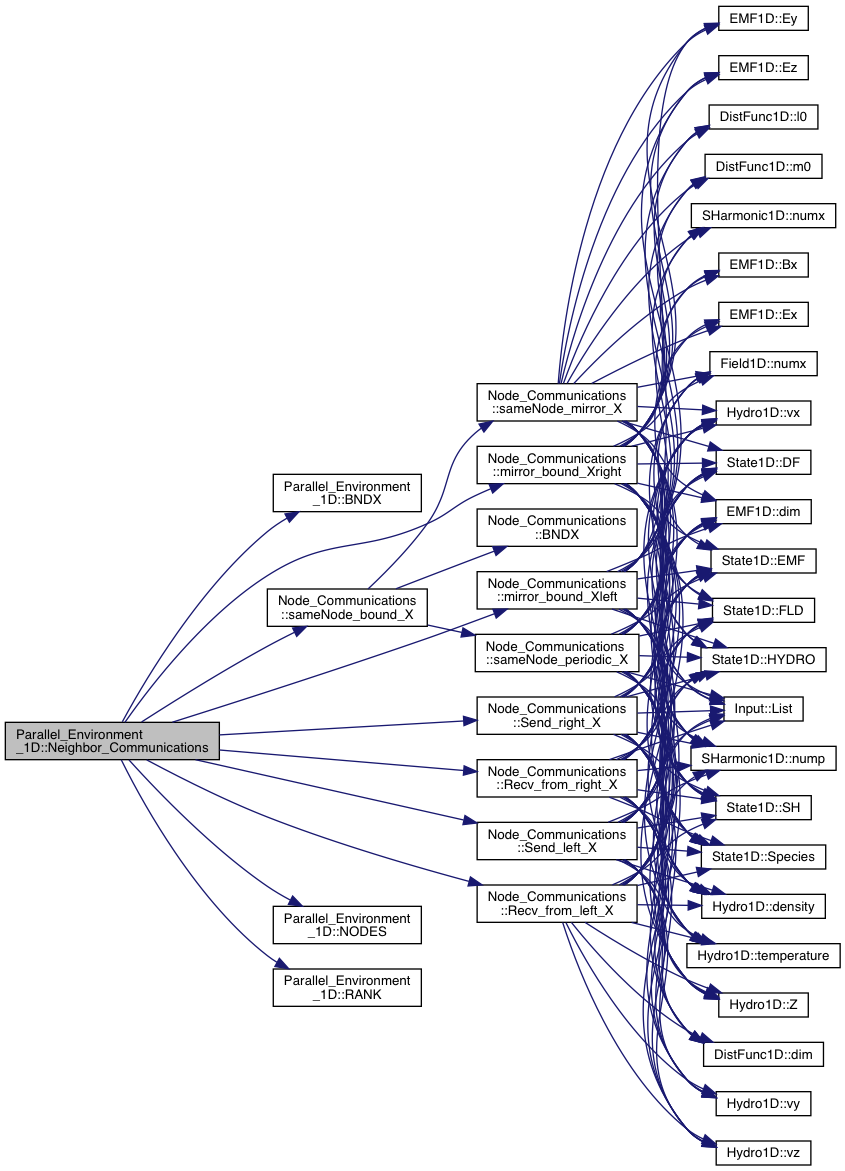

Here is the call graph for this function:

Here is the caller graph for this function:

Neighbor_ImplicitE_Communications()

void Parallel_Environment_1D::Neighbor_ImplicitE_Communications

(

State1D &

Y

)

Definition at line 1099 of file parallel.cpp.

References Bfield_Data, BNDX(), Node_ImplicitE_Communications::mirror_bound_Xleft(), Node_ImplicitE_Communications::mirror_bound_Xright(), NODES(), RANK(), Node_ImplicitE_Communications::Recv_from_left_X(), Node_ImplicitE_Communications::Recv_from_right_X(), Node_ImplicitE_Communications::sameNode_bound_X(), Node_ImplicitE_Communications::Send_left_X(), and Node_ImplicitE_Communications::Send_right_X().

Referenced by main().

                                                                         {
//--------------------------------------------------------------
//  Information exchange between neighbors
//--------------------------------------------------------------

    int moduloX(RANK()%2);
    int RNx((RANK()+1)%NODES()),         // This is the right neighbor
            LNx((RANK()-1+NODES())%NODES()); // This is the left  neighbor

    if (NODES() > 1) {
        //even nodes
        if (moduloX==0){
            Bfield_Data.Send_right_X(Y,RNx);                  //   (Send) 0 --> 1
            if ((RANK() != 0) || (BNDX()==0)){
                Bfield_Data.Recv_from_left_X(Y,LNx);          //          1 --> 0 (Receive)
                Bfield_Data.Send_left_X(Y,LNx);               //          1 <-- 0 (Send)
            }
            else {
                if (BNDX()==1) {
                    Bfield_Data.mirror_bound_Xleft(Y);        // Update node "0" in the x direction
                }
                else {
                    cout<<"Invalid Boundary." << endl;
                }
            }
            Bfield_Data.Recv_from_right_X(Y,RNx);               // (Receive) 0 <-- 1
        }
            //odd nodes
        else {
            Bfield_Data.Recv_from_left_X(Y,LNx);               //           0 --> 1 (Receive)
            if ((RANK()!=(NODES()-1)) || (BNDX()==0)){
                Bfield_Data.Send_right_X(Y,RNx);              //   (Send)  1 --> 0
                Bfield_Data.Recv_from_right_X(Y,RNx);         // (Receive) 1 <-- 0
            }
            else {
                if (BNDX()==1) {
                    Bfield_Data.mirror_bound_Xright(Y);        // Update node "N-1" in the x direction
                }
                else {
                    cout<<"Invalid Boundary." << endl;;
                }
            }
            Bfield_Data.Send_left_X(Y,LNx);                    //           0 <-- 1 (Send)
        }
    }
    else { Bfield_Data.sameNode_bound_X(Y); }

}

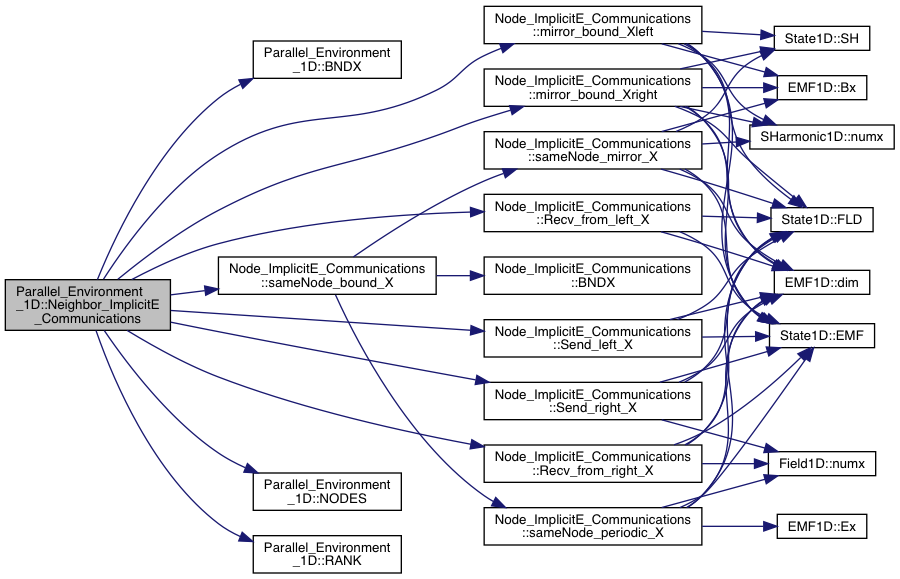

Here is the call graph for this function:

Here is the caller graph for this function:

NODES()

int Parallel_Environment_1D::NODES

(

)

const

Definition at line 1092 of file parallel.cpp.

References Nnodes.

Referenced by Output_Data::Output_Preprocessor_1D::Bx(), Output_Data::Output_Preprocessor_1D::By(), Output_Data::Output_Preprocessor_1D::Bz(), Output_Data::Output_Preprocessor_1D::Ex(), Output_Data::Output_Preprocessor_1D::Ey(), Output_Data::Output_Preprocessor_1D::Ez(), Output_Data::Output_Preprocessor_1D::f0(), Output_Data::Output_Preprocessor_1D::f10(), Output_Data::Output_Preprocessor_1D::f11(), Output_Data::Output_Preprocessor_1D::f20(), Output_Data::Output_Preprocessor_1D::fl0(), Output_Data::Output_Preprocessor_1D::Jx(), Output_Data::Output_Preprocessor_1D::Jy(), Output_Data::Output_Preprocessor_1D::Jz(), Output_Data::Output_Preprocessor_1D::n(), Neighbor_Communications(), Neighbor_ImplicitE_Communications(), Output_Data::Output_Preprocessor_1D::ni(), Output_Data::Output_Preprocessor_1D::px(), Output_Data::Output_Preprocessor_1D::Qx(), Output_Data::Output_Preprocessor_1D::Qy(), Output_Data::Output_Preprocessor_1D::Qz(), Output_Data::Output_Preprocessor_1D::T(), Output_Data::Output_Preprocessor_1D::Ti(), Output_Data::Output_Preprocessor_1D::Ux(), Output_Data::Output_Preprocessor_1D::Uy(), Output_Data::Output_Preprocessor_1D::Uz(), Output_Data::Output_Preprocessor_1D::vNx(), Output_Data::Output_Preprocessor_1D::vNy(), Output_Data::Output_Preprocessor_1D::vNz(), and Output_Data::Output_Preprocessor_1D::Z().

{return Nnodes;}

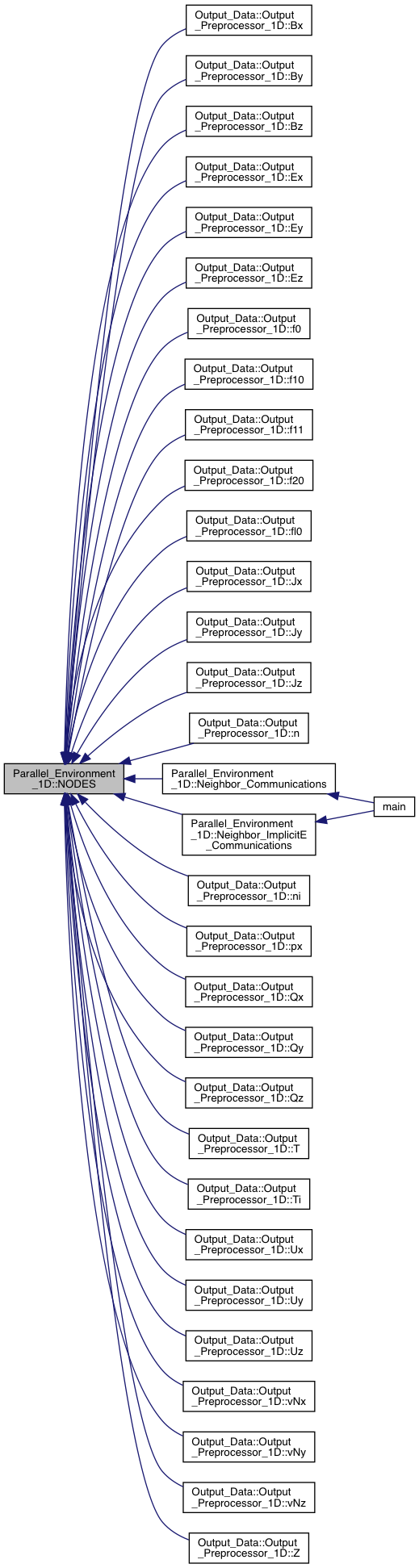

Here is the caller graph for this function:

RANK()

int Parallel_Environment_1D::RANK

(

)

const

Definition at line 1090 of file parallel.cpp.

References rank.

Referenced by Output_Data::Output_Preprocessor_1D::Bx(), Output_Data::Output_Preprocessor_1D::By(), Output_Data::Output_Preprocessor_1D::Bz(), Output_Data::Output_Preprocessor_1D::Ex(), Output_Data::Output_Preprocessor_1D::Ey(), Output_Data::Output_Preprocessor_1D::Ez(), Output_Data::Output_Preprocessor_1D::f0(), Output_Data::Output_Preprocessor_1D::f10(), Output_Data::Output_Preprocessor_1D::f11(), Output_Data::Output_Preprocessor_1D::f20(), Output_Data::Output_Preprocessor_1D::fl0(), Output_Data::Output_Preprocessor_1D::Jx(), Output_Data::Output_Preprocessor_1D::Jy(), Output_Data::Output_Preprocessor_1D::Jz(), main(), Output_Data::Output_Preprocessor_1D::n(), Neighbor_Communications(), Neighbor_ImplicitE_Communications(), Output_Data::Output_Preprocessor_1D::ni(), Output_Data::Output_Preprocessor_1D::px(), Output_Data::Output_Preprocessor_1D::Qx(), Output_Data::Output_Preprocessor_1D::Qy(), Output_Data::Output_Preprocessor_1D::Qz(), Output_Data::Output_Preprocessor_1D::T(), Output_Data::Output_Preprocessor_1D::Ti(), Output_Data::Output_Preprocessor_1D::Ux(), Output_Data::Output_Preprocessor_1D::Uy(), Output_Data::Output_Preprocessor_1D::Uz(), Output_Data::Output_Preprocessor_1D::vNx(), Output_Data::Output_Preprocessor_1D::vNy(), Output_Data::Output_Preprocessor_1D::vNz(), and Output_Data::Output_Preprocessor_1D::Z().

{return rank;}

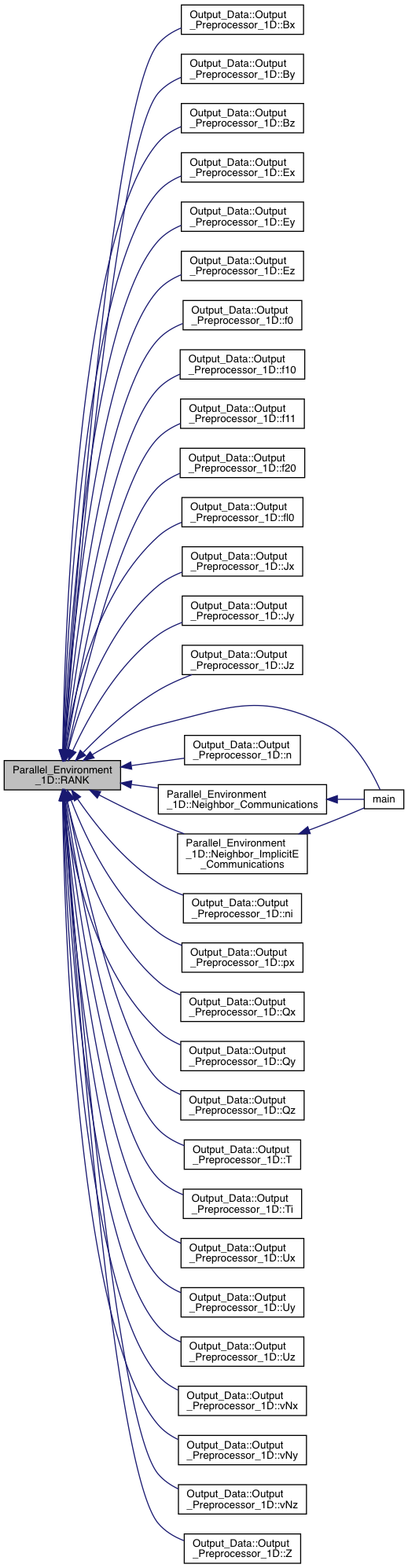

Here is the caller graph for this function:

Field Documentation

Bfield_Data

Node_ImplicitE_Communications Parallel_Environment_1D::Bfield_Data

private

Definition at line 166 of file parallel.h.

Referenced by Neighbor_ImplicitE_Communications().

bndX

int Parallel_Environment_1D::bndX

private

Definition at line 163 of file parallel.h.

Referenced by BNDX().

Nnodes

int Parallel_Environment_1D::Nnodes

private

Definition at line 160 of file parallel.h.

Referenced by error_check(), NODES(), and Parallel_Environment_1D().

rank

int Parallel_Environment_1D::rank

private

Definition at line 159 of file parallel.h.

Referenced by error_check(), Parallel_Environment_1D(), and RANK().

X_Data

Node_Communications Parallel_Environment_1D::X_Data

private

Definition at line 167 of file parallel.h.

Referenced by Neighbor_Communications().

---

The documentation for this class was generated from the following files:

• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/parallel.h
• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/parallel.cpp
