Node_Communications Class Reference

#include <parallel.h>

Public Member Functions
	Node_Communications ()
	~Node_Communications ()
int	BNDX () const
void	Send_right_X (State1D &Y, int dest)
void	Recv_from_left_X (State1D &Y, int origin)
void	Send_left_X (State1D &Y, int dest)
void	Recv_from_right_X (State1D &Y, int origin)
void	mirror_bound_Xleft (State1D &Y)
void	mirror_bound_Xright (State1D &Y)
void	sameNode_bound_X (State1D &Y)

Private Member Functions
void	sameNode_periodic_X (State1D &Y)
void	sameNode_mirror_X (State1D &Y)

Private Attributes
int	Nbc
int	bndX
int	numspec
int	numpmax
int	msg_sizeX
complex< double > *	msg_bufX

Detailed Description

Definition at line 81 of file parallel.h.

Constructor & Destructor Documentation

Node_Communications()

Node_Communications::Node_Communications

(

)

Definition at line 341 of file parallel.cpp.

References Input::List(), Input::Input_List::ls, Input::Input_List::ms, msg_bufX, msg_sizeX, Nbc, numspec, and Input::Input_List::ps.

                                          :
//--------------------------------------------------------------
//  Constructor
//--------------------------------------------------------------
        Nbc(Input::List().BoundaryCells),      // # of boundary cells
        bndX(Input::List().bndX) {        // Type of boundary in X

    numspec = Input::List().ls.size();
    // numpmax = Input::List().ps;

    double temp;

    // # of harmonics
    msg_sizeX = 0; temp = 0;
    for(int s(0); s < numspec; ++s) {
        temp = ((Input::List().ms[s]+1)*(2*Input::List().ls[s]-Input::List().ms[s]+2))/2;
        msg_sizeX += temp*Input::List().ps[s];
    }
    // (# of harmonics) * (# cells in p)
    // msg_sizeX *= numpmax
    // 6 fields: Ex, Ey, Ez, Bx, By, Bz
    msg_sizeX += 6;

    // 6 Hydro Quantities, density, vx, vy, vz, temp, Z
    if (Input::List().hydromotion)
    {
        msg_sizeX += 6;
    }

    msg_sizeX *= Nbc;  //(IN().inp().y.dim()*Nbc);
    msg_bufX = new complex<double>[msg_sizeX];

}

Here is the call graph for this function:

~Node_Communications()

Node_Communications::~Node_Communications

(

)

Definition at line 377 of file parallel.cpp.

References msg_bufX.

                                          {
//--------------------------------------------------------------
//  Destructor
//--------------------------------------------------------------
    delete[] msg_bufX;
}

Member Function Documentation

BNDX()

int Node_Communications::BNDX

(

)

const

Definition at line 386 of file parallel.cpp.

References bndX.

Referenced by sameNode_bound_X().

{return bndX;}

Here is the caller graph for this function:

mirror_bound_Xleft()

void Node_Communications::mirror_bound_Xleft

(

State1D &

Y

)

Definition at line 701 of file parallel.cpp.

References EMF1D::Bx(), Hydro1D::density(), State1D::DF(), EMF1D::dim(), State1D::EMF(), EMF1D::Ey(), EMF1D::Ez(), State1D::FLD(), State1D::HYDRO(), Input::Input_List::hydromotion, DistFunc1D::l0(), Input::List(), DistFunc1D::m0(), Nbc, SHarmonic1D::nump(), SHarmonic1D::numx(), State1D::SH(), State1D::Species(), Hydro1D::temperature(), Hydro1D::vx(), and Hydro1D::Z().

Referenced by Parallel_Environment_1D::Neighbor_Communications().

                                                       {
//--------------------------------------------------------------
//  Mirror boundary in the x direction on the left
//--------------------------------------------------------------
    int sign(1);
    size_t Nx(Y.SH(0,0,0).numx());

    // Mirror the harmonics
    for(int s(0); s < Y.Species(); ++s) {
        for(int l(0); l < Y.DF(s).l0(); ++l){
            for(int m(0); m < ((Y.DF(s).m0() < l)? Y.DF(s).m0():l)+1; ++m){
                sign = 1-2*((l+m)%2);          //(-1)^(m+n)

                for (int c(0); c < Nbc; ++c) {
                    for(int p(0); p < Y.SH(s,0,0).nump(); ++p) {
                        Y.SH(s,l,m)(p, c) = Y.SH(s,l,m)(p, 2*Nbc-c-1);
                        Y.SH(s,l,m)(p, c) *= sign;
                    }
                }

            }
        }
    }

    // Mirror the fields
    for(int i(0); i < Y.EMF().dim(); ++i){
        for (int c(0); c < Nbc; ++c)
            Y.FLD(i)(c) = Y.FLD(i)(2*Nbc-c-1);
    }

    for (int c(0); c < Nbc; ++c) {
//          Ey
        Y.EMF().Ey()(c) *= -1.0; // left  boundary
//          Ez
        Y.EMF().Ez()(c) *= -1.0; // left  boundary
//          Bx
        Y.EMF().Bx()(c) *= -1.0; // left  boundary

//        Y.EMF().By()(c) = 1e-3; // left  boundary
    }

    if (Input::List().hydromotion)
    {
        // Hydro Quantities:   x0 "Right-Bound ---> Left-Guard"
        for(int c(0); c < Nbc; c++) {
            Y.HYDRO().density(c) =  Y.HYDRO().density(2*Nbc-c-1);
            Y.HYDRO().temperature(c) =  Y.HYDRO().temperature(2*Nbc-c-1);
            Y.HYDRO().Z(c) =  Y.HYDRO().Z(2*Nbc-c-1);

            Y.HYDRO().vx(c) *= -1.0;
        }
    }


}

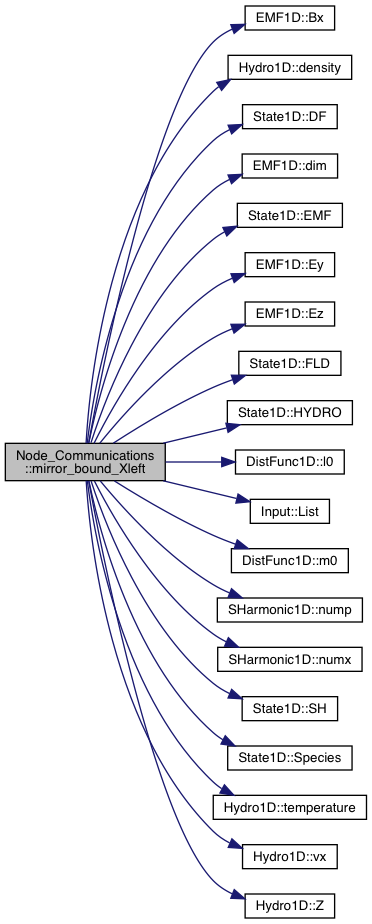

Here is the call graph for this function:

Here is the caller graph for this function:

mirror_bound_Xright()

void Node_Communications::mirror_bound_Xright

(

State1D &

Y

)

Definition at line 759 of file parallel.cpp.

References EMF1D::Bx(), Hydro1D::density(), State1D::DF(), EMF1D::dim(), State1D::EMF(), EMF1D::Ex(), EMF1D::Ey(), EMF1D::Ez(), State1D::FLD(), State1D::HYDRO(), Input::Input_List::hydromotion, DistFunc1D::l0(), Input::List(), DistFunc1D::m0(), Nbc, SHarmonic1D::nump(), SHarmonic1D::numx(), Field1D::numx(), State1D::SH(), State1D::Species(), Hydro1D::temperature(), Hydro1D::vx(), and Hydro1D::Z().

Referenced by Parallel_Environment_1D::Neighbor_Communications().

                                                        {
//--------------------------------------------------------------
//  Mirror boundary in the x direction on the right
//--------------------------------------------------------------
    int sign(1);
    size_t Nx(Y.SH(0,0,0).numx());

    // Mirror the harmonics
    for(int s(0); s < Y.Species(); ++s) {
        for(int l(0); l < Y.DF(s).l0(); ++l){
            for(int m(0); m < ((Y.DF(s).m0() < l)? Y.DF(s).m0():l)+1; ++m){
                sign = 1-2*((l+m)%2);          //(-1)^(m+n)

                for(int p(0); p < Y.SH(s,0,0).nump(); ++p) {
                    for (int c(0); c < Nbc; ++c) {
                        Y.SH(s,l,m)(p, Nx-c-1) = Y.SH(s,l,m)(p, Nx-2*Nbc+c);
                        Y.SH(s,l,m)(p, Nx-c-1) *= sign;
                    }
                }

            }
        }
    }

    // Mirror the fields
    for(int i(0); i < Y.EMF().dim(); ++i){
        for (int c(0); c < Nbc; ++c)
            Y.FLD(i)(Nx-c-1) = Y.FLD(i)(Nx-2*Nbc+c);
    }

    for (int c(0); c < Nbc; ++c) {
        //Ey
        Y.EMF().Ey()(Nx-c-1) *= -1.0; // right boundary
        //Ez
        Y.EMF().Ez()(Nx-c-1) *= -1.0; // right boundary
        //Bx
        Y.EMF().Bx()(Nx-c-1) *= -1.0; // right boundary

//        Y.EMF().By()(Nx-c-1) = 1e-3; // right  boundary
    }

    if (Input::List().hydromotion)
    {
        // Hydro Quantities:   x0 "Left-Bound ---> Right-Guard"
        for(int c(0); c < Nbc; c++) {
            Y.HYDRO().density(Y.EMF().Ex().numx()-Nbc+c) =  Y.HYDRO().density(Y.EMF().Ex().numx()-2*Nbc+c);
            Y.HYDRO().temperature(Y.EMF().Ex().numx()-Nbc+c) =  Y.HYDRO().temperature(Y.EMF().Ex().numx()-2*Nbc+c);
            Y.HYDRO().Z(Y.EMF().Ex().numx()-Nbc+c) =  Y.HYDRO().Z(Y.EMF().Ex().numx()-2*Nbc+c);


            Y.HYDRO().vx(Y.EMF().Ex().numx()-Nbc+c) *=  -1.0;
        }
    }

}

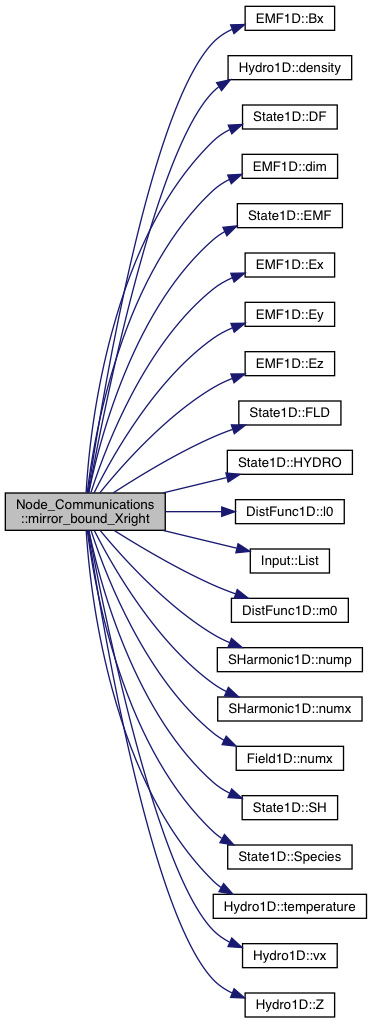

Here is the call graph for this function:

Here is the caller graph for this function:

Recv_from_left_X()

void Node_Communications::Recv_from_left_X	(	State1D &	Y,
		int	origin
	)

Definition at line 465 of file parallel.cpp.

References Hydro1D::density(), State1D::DF(), EMF1D::dim(), DistFunc1D::dim(), State1D::EMF(), State1D::FLD(), State1D::HYDRO(), Input::Input_List::hydromotion, Input::List(), msg_bufX, msg_sizeX, Nbc, SHarmonic1D::nump(), State1D::SH(), State1D::Species(), Hydro1D::temperature(), Hydro1D::vx(), Hydro1D::vy(), Hydro1D::vz(), and Hydro1D::Z().

Referenced by Parallel_Environment_1D::Neighbor_Communications().

                                                                 {
//--------------------------------------------------------------
//  X-axis : Receive data from the node on the left and update
//           the left guard cells
//--------------------------------------------------------------

    // static size_t step_h(Y.SH(s,0,0).nump()*Nbc);
    static size_t step_f(Nbc);
    size_t bufind(0);
    MPI_Status status;

    // Receive Data
    MPI_Recv(msg_bufX, msg_sizeX, MPI_DOUBLE_COMPLEX, origin, 0, MPI_COMM_WORLD, &status);

    // Harmonics:x0-"---> Left-Guard"
    for(int s(0); s < Y.Species(); ++s) {
        for(int i = 0; i < Y.DF(s).dim(); ++i){
            for(int p(0); p < Y.SH(s,0,0).nump(); ++p) {
                for(int e(0); e < Nbc; e++) {
                    (Y.DF(s)(i))(p, e) = msg_bufX[bufind + e];
                }
                bufind += step_f;
            }
        }
    }


    // Fields:   x0-"---> Left-Guard"
    for(int i = 0; i < Y.EMF().dim(); ++i){
        for(int e(0); e < Nbc; e++) {
            Y.FLD(i)(e) = msg_bufX[bufind + e];
        }
        bufind += step_f;
    }

    if (Input::List().hydromotion)
    {
        // Hydro-velocity:   x0-"---> Left-Guard"
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().density(e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;

        // Hydro-velocity:   x0-"---> Left-Guard"
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().vx(e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;

        // Hydro-velocity:   x0-"---> Left-Guard"
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().vy(e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;

        // Hydro-velocity:   x0-"---> Left-Guard"
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().vz(e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;

        // Hydro-temperature:   x0-"---> Left-Guard"
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().temperature(e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;

        // Hydro-charge fraction:   x0-"---> Left-Guard"
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().Z(e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;
    }


}

Here is the call graph for this function:

Here is the caller graph for this function:

Recv_from_right_X()

void Node_Communications::Recv_from_right_X	(	State1D &	Y,
		int	origin
	)

Definition at line 616 of file parallel.cpp.

References Hydro1D::density(), State1D::DF(), EMF1D::dim(), DistFunc1D::dim(), State1D::EMF(), State1D::FLD(), State1D::HYDRO(), Input::Input_List::hydromotion, Input::List(), msg_bufX, msg_sizeX, Nbc, SHarmonic1D::nump(), Field1D::numx(), State1D::SH(), State1D::Species(), Hydro1D::temperature(), Hydro1D::vx(), Hydro1D::vy(), Hydro1D::vz(), and Hydro1D::Z().

Referenced by Parallel_Environment_1D::Neighbor_Communications().

                                                                  {
//--------------------------------------------------------------
//  X-axis : Receive data from the node on the right and update
//           the right guard cells
//--------------------------------------------------------------

    // static size_t step_h(Y.SH(s,0,0).nump()*Nbc);
    static size_t step_f(Nbc);
    size_t bufind(0);
    MPI_Status status;

    // Receive Data
    MPI_Recv(msg_bufX, msg_sizeX, MPI_DOUBLE_COMPLEX, origin, 1, MPI_COMM_WORLD, &status);

    // Harmonics:x0-"Right-Guard <--- "
    for(int s(0); s < Y.Species(); ++s) {
        for(int i = 0; i < Y.DF(s).dim(); ++i){
            for(int p(0); p < Y.SH(s,0,0).nump(); ++p) {
                for(int e(0); e < Nbc; e++) {
                    (Y.DF(s)(i))(p, Y.FLD(0).numx()-Nbc+e) = msg_bufX[bufind + e];
                }
                bufind += step_f;
            }
        }
    }
    // Fields:   x0-"Right-Guard <--- "
    for(int i = 0; i < Y.EMF().dim(); ++i){
        for(int e(0); e < Nbc; e++) {
            Y.FLD(i)(Y.FLD(0).numx()-Nbc+e) = msg_bufX[bufind + e];
        }
        bufind += step_f;
    }

    if (Input::List().hydromotion)
    {
        // Hydro-density:   x0-"Right-Guard <--- "
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().density(Y.FLD(0).numx()-Nbc+e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;

        // Hydro-velocity:   x0-"Right-Guard <--- "
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().vx(Y.FLD(0).numx()-Nbc+e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;

        // Hydro-velocity:   x0-"Right-Guard <--- "
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().vy(Y.FLD(0).numx()-Nbc+e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;

        // Hydro-velocity:   x0-"Right-Guard <--- "
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().vz(Y.FLD(0).numx()-Nbc+e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;

        // Hydro-temperature:   x0-"Right-Guard <--- "
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().temperature(Y.FLD(0).numx()-Nbc+e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;

        // Hydro-charge fraction:   x0-"Right-Guard <--- "
        for(int e(0); e < Nbc; e++) {
            Y.HYDRO().Z(Y.FLD(0).numx()-Nbc+e) = (msg_bufX[bufind + e]).real();
        }
        bufind += step_f;
    }

}

Here is the call graph for this function:

Here is the caller graph for this function:

sameNode_bound_X()

void Node_Communications::sameNode_bound_X

(

State1D &

Y

)

Definition at line 821 of file parallel.cpp.

References BNDX(), sameNode_mirror_X(), and sameNode_periodic_X().

Referenced by Parallel_Environment_1D::Neighbor_Communications().

                                                     {
//--------------------------------------------------------------
//  Choose between boundary conditions in the x direction
//--------------------------------------------------------------

    switch (BNDX()) {
        case 0:                   // periodic
            sameNode_periodic_X(Y);

            break;
        case 1:                   // mirror boundary
            sameNode_mirror_X(Y);
            break;
        default:
            cout<<"Not a valid boundary condition." << endl;
            break;
    }
}

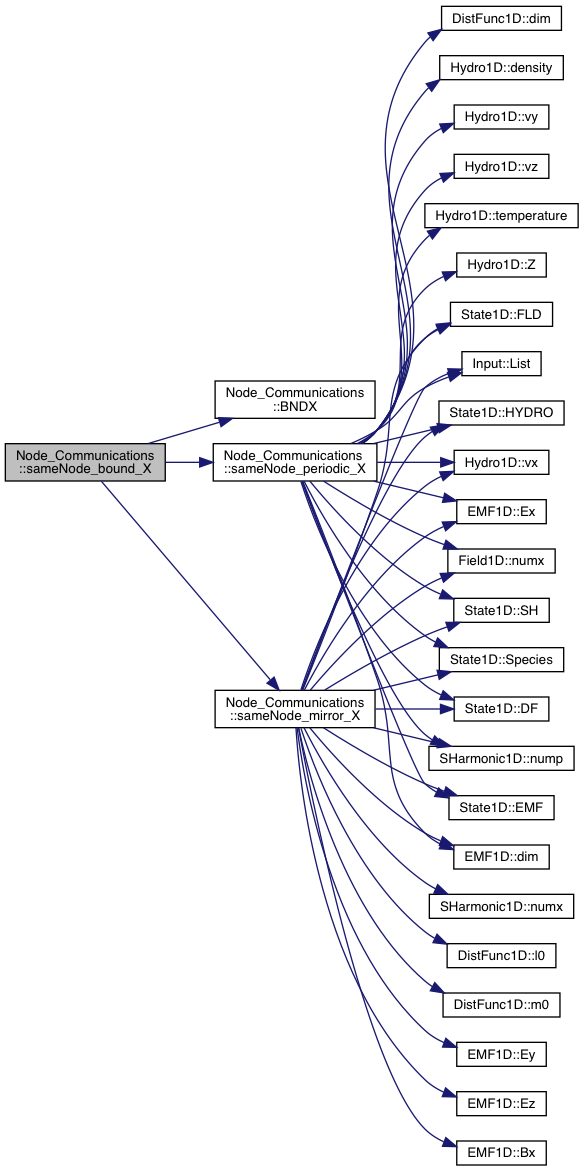

Here is the call graph for this function:

Here is the caller graph for this function:

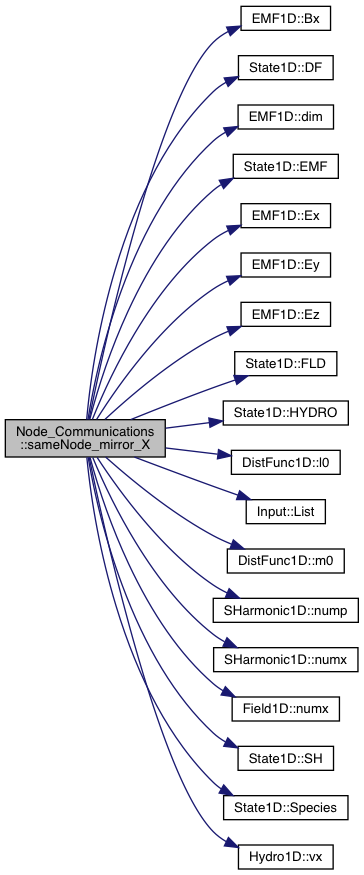

sameNode_mirror_X()

void Node_Communications::sameNode_mirror_X ( State1D &  Y )

private

Definition at line 938 of file parallel.cpp.

References EMF1D::Bx(), State1D::DF(), EMF1D::dim(), State1D::EMF(), EMF1D::Ex(), EMF1D::Ey(), EMF1D::Ez(), State1D::FLD(), State1D::HYDRO(), Input::Input_List::hydromotion, DistFunc1D::l0(), Input::List(), DistFunc1D::m0(), Nbc, SHarmonic1D::nump(), SHarmonic1D::numx(), Field1D::numx(), State1D::SH(), State1D::Species(), and Hydro1D::vx().

Referenced by sameNode_bound_X().

                                                      {
//--------------------------------------------------------------
//  Mirror boundary in the x direction for 1 node
//--------------------------------------------------------------
    int sign(1);
    size_t Nx(Y.SH(0,0,0).numx());

    // Mirror the harmonics
    for(int s(0); s < Y.Species(); ++s) {
        for(int l(0); l < Y.DF(s).l0(); ++l){
            for(int m(0); m < ((Y.DF(s).m0() < l)? Y.DF(s).m0():l)+1; ++m){
                sign = 1-2*((l+m)%2);          //(-1)^(m+n)

                // right boundary
                for(int p(0); p < Y.SH(s,0,0).nump(); ++p) {
                    for (int c(0); c < Nbc; ++c) {
                        Y.SH(s,l,m)(p, Nx-c-1) = Y.SH(s,l,m)(p, Nx-2*Nbc+c);
                        Y.SH(s,l,m)(p, Nx-c-1) *= sign;
                    }
                }

                // left boundary
                for(int p(0); p < Y.SH(s,0,0).nump(); ++p) {
                    for (int c(0); c < Nbc; ++c) {
                        Y.SH(s,l,m)(p, c) = Y.SH(s,l,m)(p, 2*Nbc-c-1);
                        Y.SH(s,l,m)(p, c) *= sign;
                    }
                }

            }
        }
    }

    // Mirror the fields
    for(int i(0); i < Y.EMF().dim(); ++i){
        // right boundary
        for (int c(0); c < Nbc; ++c)
            Y.FLD(i)(Nx-c-1) = Y.FLD(i)(Nx-2*Nbc+c);
        // left boundary
        for (int c(0); c < Nbc; ++c)
            Y.FLD(i)(c) = Y.FLD(i)(2*Nbc-c-1);
    }

    for(int c(0); c < Nbc; c++) {
        //Ey
        Y.EMF().Ey()(Nx-Nbc+c) *= -1.0; // right boundary
        Y.EMF().Ey()(c) *= -1.0;  // left  boundary

        //Ez
        Y.EMF().Ez()(Nx-Nbc+c) *= -1.0; // right boundary
        Y.EMF().Ez()(c) *= -1.0;  // left  boundary

        //Bx
        Y.EMF().Bx()(Nx-Nbc+c) *= -1.0; // right boundary
        Y.EMF().Bx()(c) *= -1.0;  // left  boundary
    }


    if (Input::List().hydromotion)
    {
        // Hydro Quantities:   x0 "Right-Bound ---> Left-Guard"
        for(int c(0); c < Nbc; c++) {
            Y.HYDRO().vx(c) *= -1.0;
        }

        // Hydro Quantities:   x0 "Left-Bound ---> Right-Guard"
        for(int c(0); c < Nbc; c++) {
            Y.HYDRO().vx(Y.EMF().Ex().numx()-Nbc+c) *= -1.0;


        }
    }

}

Here is the call graph for this function:

Here is the caller graph for this function:

sameNode_periodic_X()

void Node_Communications::sameNode_periodic_X ( State1D &  Y )

private

Definition at line 842 of file parallel.cpp.

References Hydro1D::density(), State1D::DF(), EMF1D::dim(), DistFunc1D::dim(), State1D::EMF(), EMF1D::Ex(), State1D::FLD(), State1D::HYDRO(), Input::Input_List::hydromotion, Input::List(), Nbc, SHarmonic1D::nump(), Field1D::numx(), State1D::SH(), State1D::Species(), Hydro1D::temperature(), Hydro1D::vx(), Hydro1D::vy(), Hydro1D::vz(), and Hydro1D::Z().

Referenced by sameNode_bound_X().

                                                        {
//--------------------------------------------------------------
//  Periodic boundary in the x direction for 1 node
//--------------------------------------------------------------

    // Harmonics:x0 "Right-Bound ---> Left-Guard"
    for(int s(0); s < Y.Species(); ++s) {
        for(int i(0); i < Y.DF(s).dim(); ++i) {
            for(int p(0); p < Y.SH(s,0,0).nump(); ++p) {
                for(int c(0); c < Nbc; c++) {
                    (Y.DF(s)(i))(p, c) = (Y.DF(s)(i))(p, Y.EMF().Ex().numx()-2*Nbc+c);
                    // std::cout << "\n 1: DF(" << i << "," << p << "," << c << ") = " << (Y.DF(s)(i))(p, Y.EMF().Ex().numx()-2*Nbc+c) << "\n";
                }
            }
        }
    }
    // Fields:   x0 "Right-Bound ---> Left-Guard"
    for(int i(0); i < Y.EMF().dim(); ++i) {
        for(int c(0); c < Nbc; c++) {
            Y.FLD(i)(c) = Y.FLD(i)(Y.EMF().Ex().numx()-2*Nbc+c);
            // std::cout << "\n 2: FLD(" << i << "," << c << ") = " << Y.FLD(i)(Y.EMF().Ex().numx()-2*Nbc+c) << "\n";
        }
    }



    // Harmonics:x0 "Left-Bound ---> Right-Guard"
    for(int s(0); s < Y.Species(); ++s) {
        for(int i(0); i < Y.DF(s).dim(); ++i) {
            for(int p(0); p < Y.SH(s,0,0).nump(); ++p) {
                for(int c(0); c < Nbc; c++) {
                    // std::cout << "\n 3: DF(" << i << "," << p << "," << Y.EMF().Ex().numx()-Nbc+c << ") = " << (Y.DF(s)(i))(p, Y.EMF().Ex().numx()-Nbc+c) << "\n";

                    (Y.DF(s)(i))(p, Y.EMF().Ex().numx()-Nbc+c) = (Y.DF(s)(i))(p, Nbc+c);

                    // std::cout << "\n 3n: DF(" << i << "," << p << "," << Y.EMF().Ex().numx()-Nbc+c << ") = " << (Y.DF(s)(i))(p, Y.EMF().Ex().numx()-Nbc+c-100.0) << "\n";
                    // if (c==2)


                }
            }
        }
    }

    // Fields:   x0 "Left-Bound ---> Right-Guard"
    for(int i(0); i < Y.EMF().dim(); ++i) {
        for(int c(0); c < Nbc; c++) {
            // if (i == 0)                 std::cout << "\n 4: FLD(" << i << "," << Y.EMF().Ex().numx()-Nbc+c << ") = " << Y.FLD(i)(Y.EMF().Ex().numx()-Nbc+c) << "\n";
            Y.FLD(i)(Y.EMF().Ex().numx()-Nbc+c) = Y.FLD(i)(Nbc+c);
            // if (i == 0)                 std::cout << "\n 4n: FLD(" << i << "," << Y.EMF().Ex().numx()-Nbc+c << ") = " << Y.FLD(i)(Y.EMF().Ex().numx()-Nbc+c) << "\n";


        }
        // Y.FLD(i)(Y.EMF().Ex().numx()-1) = 0.0;
    }

    // temp = Y.DF(0).getcurrent(0);
    // for (size_t ix(0);ix<Y.SH(0,0,0).numx();++ix)
    // {
    //     std::cout<<"\n      new[" << ix  << "] = " << temp[ix] << "\n";

    // }


    if (Input::List().hydromotion)
    {
        // Hydro Quantities:   x0 "Right-Bound ---> Left-Guard"
        for(int c(0); c < Nbc; c++) {
            Y.HYDRO().density(c) = Y.HYDRO().density(Y.EMF().Ex().numx()-2*Nbc+c);
            Y.HYDRO().vx(c) = Y.HYDRO().vx(Y.EMF().Ex().numx()-2*Nbc+c);
            Y.HYDRO().vy(c) = Y.HYDRO().vy(Y.EMF().Ex().numx()-2*Nbc+c);
            Y.HYDRO().vz(c) = Y.HYDRO().vz(Y.EMF().Ex().numx()-2*Nbc+c);
            Y.HYDRO().temperature(c) = Y.HYDRO().temperature(Y.EMF().Ex().numx()-2*Nbc+c);
            Y.HYDRO().Z(c) = Y.HYDRO().Z(Y.EMF().Ex().numx()-2*Nbc+c);
            // Y.HYDRO().kpressure(c) = Y.HYDRO().velocity(Y.EMF().Ex().numx()-2*Nbc+c);
            // Y.HYDRO().mpressure(c) = Y.HYDRO().velocity(Y.EMF().Ex().numx()-2*Nbc+c);
        }

        // Hydro Quantities:   x0 "Left-Bound ---> Right-Guard"
        for(int c(0); c < Nbc; c++) {
            Y.HYDRO().density(Y.EMF().Ex().numx()-Nbc+c) =  Y.HYDRO().density(Nbc+c);
            Y.HYDRO().vx(Y.EMF().Ex().numx()-Nbc+c) =  Y.HYDRO().vx(Nbc+c);
            Y.HYDRO().vy(Y.EMF().Ex().numx()-Nbc+c) =  Y.HYDRO().vy(Nbc+c);
            Y.HYDRO().vz(Y.EMF().Ex().numx()-Nbc+c) =  Y.HYDRO().vz(Nbc+c);
            Y.HYDRO().temperature(Y.EMF().Ex().numx()-Nbc+c) =  Y.HYDRO().temperature(Nbc+c);
            Y.HYDRO().Z(Y.EMF().Ex().numx()-Nbc+c) =  Y.HYDRO().Z(Nbc+c);
            // Y.HYDRO().kpressure(Y.EMF().Ex().numx()-Nbc+c) =  Y.HYDRO().velocity(Nbc+c);
            // Y.HYDRO().mpressure(Y.EMF().Ex().numx()-Nbc+c) =  Y.HYDRO().velocity(Nbc+c);

        }
    }

}

Here is the call graph for this function:

Here is the caller graph for this function:

Send_left_X()

void Node_Communications::Send_left_X	(	State1D &	Y,
		int	dest
	)

Definition at line 544 of file parallel.cpp.

References Hydro1D::density(), State1D::DF(), EMF1D::dim(), DistFunc1D::dim(), State1D::EMF(), State1D::FLD(), State1D::HYDRO(), Input::Input_List::hydromotion, Input::List(), msg_bufX, msg_sizeX, Nbc, SHarmonic1D::nump(), State1D::SH(), State1D::Species(), Hydro1D::temperature(), Hydro1D::vx(), Hydro1D::vy(), Hydro1D::vz(), and Hydro1D::Z().

Referenced by Parallel_Environment_1D::Neighbor_Communications().

                                                          {
//--------------------------------------------------------------
//  X-axis : Read data from the left boundary and send them
//           to the node on the left
//--------------------------------------------------------------

    // static size_t step_h(Y.SH(s,0,0).nump()*Nbc);
    static size_t step_f(Nbc);
    size_t bufind(0);

    // Harmonics:x0 " <--- Left-Bound "
    for(int s(0); s < Y.Species(); ++s) {
        for(int i = 0; i < Y.DF(s).dim(); ++i){
            for(int p(0); p < Y.SH(s,0,0).nump(); ++p) {
                for(int e(0); e < Nbc; e++) {
                    msg_bufX[bufind + e] = (Y.DF(s)(i))(p, Nbc+e);
                }
                bufind += step_f;
            }
        }
    }
    // Fields:   x0 " <--- Left-Bound "
    for(int i = 0; i < Y.EMF().dim(); ++i){
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.FLD(i)(Nbc+e);
        }
        bufind += step_f;
    }

    if (Input::List().hydromotion)
    {
        // Hydro-velocity:   x0 " <--- Left-Bound "
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().density(Nbc+e);
        }
        bufind += step_f;
        // Hydro-velocity:   x0 " <--- Left-Bound "
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().vx(Nbc+e);
        }
        bufind += step_f;

        // Hydro-velocity:   x0 " <--- Left-Bound "
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().vy(Nbc+e);
        }
        bufind += step_f;

        // Hydro-velocity:   x0 " <--- Left-Bound "
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().vz(Nbc+e);
        }
        bufind += step_f;

        // Hydro-temperature:   x0 " <--- Left-Bound "
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().temperature(Nbc+e);
        }
        bufind += step_f;

        // Hydro-charge-fraction:   x0 " <--- Left-Bound "
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().Z(Nbc+e);
        }
        bufind += step_f;
    }

    MPI_Send(msg_bufX, msg_sizeX, MPI_DOUBLE_COMPLEX, dest, 1, MPI_COMM_WORLD);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Send_right_X()

void Node_Communications::Send_right_X	(	State1D &	Y,
		int	dest
	)

Definition at line 396 of file parallel.cpp.

References Hydro1D::density(), State1D::DF(), EMF1D::dim(), DistFunc1D::dim(), State1D::EMF(), State1D::FLD(), State1D::HYDRO(), Input::Input_List::hydromotion, Input::List(), msg_bufX, msg_sizeX, Nbc, SHarmonic1D::nump(), Field1D::numx(), State1D::SH(), State1D::Species(), Hydro1D::temperature(), Hydro1D::vx(), Hydro1D::vy(), Hydro1D::vz(), and Hydro1D::Z().

Referenced by Parallel_Environment_1D::Neighbor_Communications().

                                                           {
//--------------------------------------------------------------
//  X-axis : Read data from the right boundary and send them
//           to the node on the right
//--------------------------------------------------------------

    // static size_t step_h(numpmax*Nbc);
    static size_t step_f(Nbc);
    size_t bufind(0);

    // Harmonics:x0 "Right-Bound ---> "
    for(int s(0); s < Y.Species(); ++s) {
        for(size_t i = 0; i < Y.DF(s).dim(); ++i){
            for(int p(0); p < Y.SH(s,0,0).nump(); ++p) {
                for(int e(0); e < Nbc; e++) {
                    msg_bufX[bufind + e] = (Y.DF(s)(i))(p, Y.FLD(0).numx()-2*Nbc+e);
                }
                bufind += step_f;
            }
        }
    }
    // Fields:   x0 "Right-Bound --> "
    for(size_t i = 0; i < Y.EMF().dim(); ++i){
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.FLD(i)(Y.FLD(0).numx()-2*Nbc+e);
        }
        bufind += step_f;
    }

    if (Input::List().hydromotion)
    {
        // Hydro-velocity:   x0 "Right-Bound --> "
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().density(Y.FLD(0).numx()-2*Nbc+e);
        }
        bufind += step_f;
        // Hydro-velocity:   x0 "Right-Bound --> "
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().vx(Y.FLD(0).numx()-2*Nbc+e);
        }
        bufind += step_f;

        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().vy(Y.FLD(0).numx()-2*Nbc+e);
        }
        bufind += step_f;

        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().vz(Y.FLD(0).numx()-2*Nbc+e);
        }
        bufind += step_f;

        // Hydro-temperature:   x0 "Right-Bound --> "
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().temperature(Y.FLD(0).numx()-2*Nbc+e);
        }
        bufind += step_f;

        // Hydro-chargefraction:   x0 "Right-Bound --> "
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.HYDRO().Z(Y.FLD(0).numx()-2*Nbc+e);
        }
        bufind += step_f;
    }
    MPI_Send(msg_bufX, msg_sizeX, MPI_DOUBLE_COMPLEX, dest, 0, MPI_COMM_WORLD);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

bndX

int Node_Communications::bndX

private

Definition at line 108 of file parallel.h.

Referenced by BNDX().

msg_bufX

complex<double>* Node_Communications::msg_bufX

private

Definition at line 113 of file parallel.h.

Referenced by Node_Communications(), Recv_from_left_X(), Recv_from_right_X(), Send_left_X(), Send_right_X(), and ~Node_Communications().

msg_sizeX

int Node_Communications::msg_sizeX

private

Definition at line 112 of file parallel.h.

Referenced by Node_Communications(), Recv_from_left_X(), Recv_from_right_X(), Send_left_X(), and Send_right_X().

Nbc

int Node_Communications::Nbc

private

Definition at line 108 of file parallel.h.

Referenced by mirror_bound_Xleft(), mirror_bound_Xright(), Node_Communications(), Recv_from_left_X(), Recv_from_right_X(), sameNode_mirror_X(), sameNode_periodic_X(), Send_left_X(), and Send_right_X().

numpmax

int Node_Communications::numpmax

private

Definition at line 109 of file parallel.h.

numspec

int Node_Communications::numspec

private

Definition at line 109 of file parallel.h.

Referenced by Node_Communications().

---

The documentation for this class was generated from the following files:

• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/parallel.h
• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/parallel.cpp
