Node_ImplicitE_Communications Class Reference

#include <parallel.h>

Public Member Functions
	Node_ImplicitE_Communications ()
	~Node_ImplicitE_Communications ()
int	BNDX () const
void	Send_right_X (State1D &Y, int dest)
void	Recv_from_left_X (State1D &Y, int origin)
void	Send_left_X (State1D &Y, int dest)
void	Recv_from_right_X (State1D &Y, int origin)
void	mirror_bound_Xleft (State1D &Y)
void	mirror_bound_Xright (State1D &Y)
void	sameNode_bound_X (State1D &Y)

Private Member Functions
void	sameNode_periodic_X (State1D &Y)
void	sameNode_mirror_X (State1D &Y)

Private Attributes
int	Nbc
int	bndX
int	msg_sizeX
complex< double > *	msg_bufX

Detailed Description

Definition at line 37 of file parallel.h.

Constructor & Destructor Documentation

Node_ImplicitE_Communications()

Node_ImplicitE_Communications::Node_ImplicitE_Communications

(

)

Definition at line 78 of file parallel.cpp.

References msg_bufX, msg_sizeX, and Nbc.

                                                              :
//--------------------------------------------------------------
//  Constructor
//--------------------------------------------------------------
        Nbc(Input::List().BoundaryCells),      // # of boundary cells
        bndX(Input::List().bndX) {        // Type of boundary in X

    // 3 components for Bx, By, Bz
    msg_sizeX = 3;

    msg_sizeX *= Nbc; //(IN().inp().y.dim()*Nbc);
    msg_bufX = new complex<double>[msg_sizeX];

}

~Node_ImplicitE_Communications()

Node_ImplicitE_Communications::~Node_ImplicitE_Communications

(

)

Definition at line 95 of file parallel.cpp.

References msg_bufX.

                                                              {
//--------------------------------------------------------------
//  Destructor
//--------------------------------------------------------------
    delete[] msg_bufX;
}

Member Function Documentation

BNDX()

int Node_ImplicitE_Communications::BNDX

(

)

const

Definition at line 104 of file parallel.cpp.

References bndX.

Referenced by sameNode_bound_X().

{return bndX;}

Here is the caller graph for this function:

mirror_bound_Xleft()

void Node_ImplicitE_Communications::mirror_bound_Xleft

(

State1D &

Y

)

Definition at line 215 of file parallel.cpp.

References EMF1D::Bx(), EMF1D::dim(), State1D::EMF(), State1D::FLD(), Nbc, SHarmonic1D::numx(), and State1D::SH().

Referenced by Parallel_Environment_1D::Neighbor_ImplicitE_Communications().

                                                                 {
//-------------------------------------------------------------------------------------
//  Mirror boundary in the x direction on the left
//-------------------------------------------------------------------------------------

    size_t Nx(Y.SH(0,0,0).numx());

    // Mirror the fields
    for(int i(3); i < Y.EMF().dim(); ++i){ // "3" as opposed to "0"
        for (int c(0); c < Nbc; ++c)
            Y.FLD(i)(c) = Y.FLD(i)(2*Nbc-c-1);
    }

    //Bx
    for(int c(0); c < Nbc; ++c) {
        Y.EMF().Bx()(c) *= -1.0; // left  boundary
    }

}

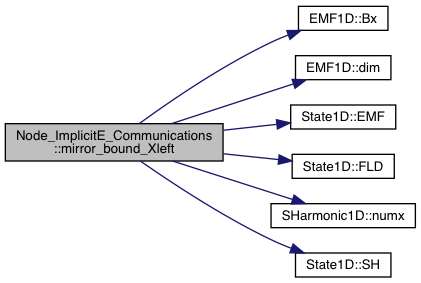

Here is the call graph for this function:

Here is the caller graph for this function:

mirror_bound_Xright()

void Node_ImplicitE_Communications::mirror_bound_Xright

(

State1D &

Y

)

Definition at line 237 of file parallel.cpp.

References EMF1D::Bx(), EMF1D::dim(), State1D::EMF(), State1D::FLD(), Nbc, SHarmonic1D::numx(), and State1D::SH().

Referenced by Parallel_Environment_1D::Neighbor_ImplicitE_Communications().

                                                                  {
//--------------------------------------------------------------
//  Mirror boundary in the x direction on the right
//--------------------------------------------------------------

    size_t Nx(Y.SH(0,0,0).numx());

    // Mirror the fields
    for(int i(3); i < Y.EMF().dim(); ++i){ // "3" as opposed to "0"
        for (int c(0); c < Nbc; ++c)
            Y.FLD(i)(Nx-c-1) = Y.FLD(i)(Nx-2*Nbc+c);
    }

    //Bx
    for(int c(0); c < Nbc; ++c) {
        Y.EMF().Bx()(Nx-1-c) *= -1.0; // right  boundary
    }

}

Here is the call graph for this function:

Here is the caller graph for this function:

Recv_from_left_X()

void Node_ImplicitE_Communications::Recv_from_left_X	(	State1D &	Y,
		int	origin
	)

Definition at line 136 of file parallel.cpp.

References EMF1D::dim(), State1D::EMF(), State1D::FLD(), msg_bufX, msg_sizeX, and Nbc.

Referenced by Parallel_Environment_1D::Neighbor_ImplicitE_Communications().

                                                                           {
//--------------------------------------------------------------
//  X-axis : Receive data from the node on the left and update
//           the left guard cells
//--------------------------------------------------------------

    static size_t step_f(Nbc);
    size_t bufind(0);
    MPI_Status status;

    // Receive Data
    MPI_Recv(msg_bufX, msg_sizeX, MPI_DOUBLE_COMPLEX, origin, 0, MPI_COMM_WORLD, &status);

    // Fields:   x0-"---> Left-Guard"
    for(int i(3); i < Y.EMF().dim(); ++i){ // "3" as opposed to "0"
        for(int e(0); e < Nbc; e++) {
            Y.FLD(i)(e) = msg_bufX[bufind + e];
        }
        bufind += step_f;
    }
}

Here is the call graph for this function:

Here is the caller graph for this function:

Recv_from_right_X()

void Node_ImplicitE_Communications::Recv_from_right_X	(	State1D &	Y,
		int	origin
	)

Definition at line 182 of file parallel.cpp.

References EMF1D::dim(), State1D::EMF(), State1D::FLD(), msg_bufX, msg_sizeX, Nbc, and Field1D::numx().

Referenced by Parallel_Environment_1D::Neighbor_ImplicitE_Communications().

                                                                            {
//--------------------------------------------------------------
//  X-axis : Receive data from the node on the right and update
//           the right guard cells
//--------------------------------------------------------------

    static size_t step_f(Nbc);
    size_t bufind(0);
    MPI_Status status;

    // Receive Data
    MPI_Recv(msg_bufX, msg_sizeX, MPI_DOUBLE_COMPLEX, origin, 1, MPI_COMM_WORLD, &status);

    // Fields:   x0-"Right-Guard <--- "
    for(int i(3); i < Y.EMF().dim(); ++i){ // "3" as opposed to "0"
        for(int e(0); e < Nbc; e++) {
            Y.FLD(i)(Y.FLD(i).numx()-Nbc+e) = msg_bufX[bufind + e];
        }
        bufind += step_f;
    }
}

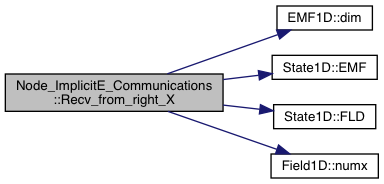

Here is the call graph for this function:

Here is the caller graph for this function:

sameNode_bound_X()

void Node_ImplicitE_Communications::sameNode_bound_X

(

State1D &

Y

)

Definition at line 264 of file parallel.cpp.

References BNDX(), sameNode_mirror_X(), and sameNode_periodic_X().

Referenced by Parallel_Environment_1D::Neighbor_ImplicitE_Communications().

                                                               {
//--------------------------------------------------------------
//  Choose between boundary conditions in the x direction
//--------------------------------------------------------------
    switch (BNDX()) {
        case 0:                   // periodic
            sameNode_periodic_X(Y);

            break;
        case 1:                   // mirror boundary
            sameNode_mirror_X(Y);
            break;
        default:
            cout<<"Not a valid boundary condition." << endl;
            break;
    }
}

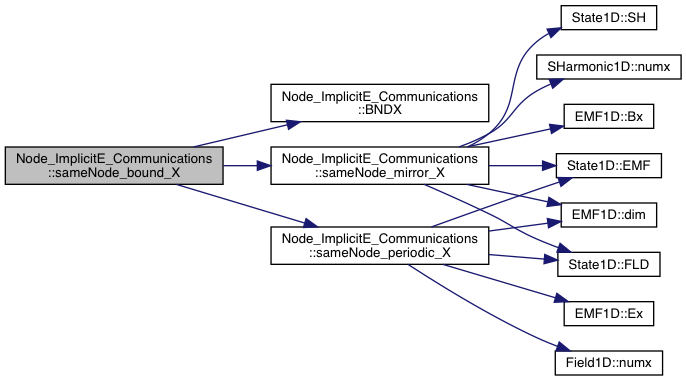

Here is the call graph for this function:

Here is the caller graph for this function:

sameNode_mirror_X()

void Node_ImplicitE_Communications::sameNode_mirror_X ( State1D &  Y )

private

Definition at line 305 of file parallel.cpp.

References EMF1D::Bx(), EMF1D::dim(), State1D::EMF(), State1D::FLD(), Nbc, SHarmonic1D::numx(), and State1D::SH().

Referenced by sameNode_bound_X().

                                                                {
//--------------------------------------------------------------
//  Mirror boundary in the x direction for 1 node
//--------------------------------------------------------------

    size_t Nx(Y.SH(0,0,0).numx());

    // Mirror the fields
    for(int i(3); i < Y.EMF().dim(); ++i){ // "3" as opposed to "0"
        // right boundary
        for (int c(0); c < Nbc; ++c)
            Y.FLD(i)(Nx-c-1) = Y.FLD(i)(Nx-2*Nbc+c);
        // left boundary
        for (int c(0); c < Nbc; ++c)
            Y.FLD(i)(c) = Y.FLD(i)(2*Nbc-c-1);
    }

    //Bx
    for (int c(0); c < Nbc; ++c) {
        Y.EMF().Bx()(c) *= -1.0; // left  boundary
        Y.EMF().Bx()(Nx-Nbc+c) *= -1.0; // right  boundary
    }

}

Here is the call graph for this function:

Here is the caller graph for this function:

sameNode_periodic_X()

void Node_ImplicitE_Communications::sameNode_periodic_X ( State1D &  Y )

private

Definition at line 284 of file parallel.cpp.

References EMF1D::dim(), State1D::EMF(), EMF1D::Ex(), State1D::FLD(), Nbc, and Field1D::numx().

Referenced by sameNode_bound_X().

                                                                  {
//--------------------------------------------------------------
//  Periodic boundary in the x direction for 1 node
//--------------------------------------------------------------

    // Fields:   x0 "Right-Bound ---> Left-Guard"
    for(int i(3); i < Y.EMF().dim(); ++i) // "3" as opposed to "0"
        for(int c(0); c < Nbc; c++) {
            Y.FLD(i)(c) = Y.FLD(i)(Y.EMF().Ex().numx()-2*Nbc+c);
        }

    // Fields:   x0 "Left-Bound ---> Right-Guard"
    for(int i(3); i < Y.EMF().dim(); ++i) // "3" as opposed to "0"
        for(int c(0); c < Nbc; c++) {
            Y.FLD(i)(Y.EMF().Ex().numx()-Nbc+c) = Y.FLD(i)(Nbc+c);
        }

}

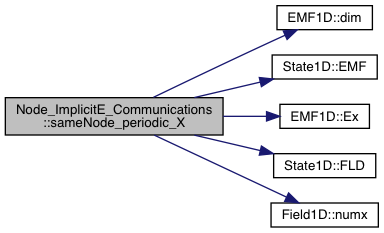

Here is the call graph for this function:

Here is the caller graph for this function:

Send_left_X()

void Node_ImplicitE_Communications::Send_left_X	(	State1D &	Y,
		int	dest
	)

Definition at line 160 of file parallel.cpp.

References EMF1D::dim(), State1D::EMF(), State1D::FLD(), msg_bufX, msg_sizeX, and Nbc.

Referenced by Parallel_Environment_1D::Neighbor_ImplicitE_Communications().

                                                                    {
//--------------------------------------------------------------
//  X-axis : Read data from the left boundary and send them
//           to the node on the left
//--------------------------------------------------------------

    static size_t step_f(Nbc);
    size_t bufind(0);

    // Fields:   x0 " <--- Left-Bound "
    for(int i(3); i < Y.EMF().dim(); ++i){ // "3" as opposed to "0"
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.FLD(i)(Nbc+e);
        }
        bufind += step_f;
    }

    MPI_Send(msg_bufX, msg_sizeX, MPI_DOUBLE_COMPLEX, dest, 1, MPI_COMM_WORLD);
}

Here is the call graph for this function:

Here is the caller graph for this function:

Send_right_X()

void Node_ImplicitE_Communications::Send_right_X	(	State1D &	Y,
		int	dest
	)

Definition at line 114 of file parallel.cpp.

References EMF1D::dim(), State1D::EMF(), State1D::FLD(), msg_bufX, msg_sizeX, Nbc, and Field1D::numx().

Referenced by Parallel_Environment_1D::Neighbor_ImplicitE_Communications().

                                                                     {
//--------------------------------------------------------------
//  X-axis : Read data from the right boundary and send them
//           to the node on the right
//--------------------------------------------------------------

    static size_t step_f(Nbc);
    size_t bufind(0);

    // Fields:   x0 "Right-Bound --> "
    for(size_t i(3); i < Y.EMF().dim(); ++i){  // "3" as opposed to "0"
        for(int e(0); e < Nbc; e++) {
            msg_bufX[bufind + e] = Y.FLD(i)(Y.FLD(i).numx()-2*Nbc+e);
        }
        bufind += step_f;
    }

    MPI_Send(msg_bufX, msg_sizeX, MPI_DOUBLE_COMPLEX, dest, 0, MPI_COMM_WORLD);
}

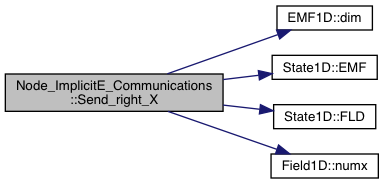

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

bndX

int Node_ImplicitE_Communications::bndX

private

Definition at line 64 of file parallel.h.

Referenced by BNDX().

msg_bufX

complex<double>* Node_ImplicitE_Communications::msg_bufX

private

Definition at line 68 of file parallel.h.

Referenced by Node_ImplicitE_Communications(), Recv_from_left_X(), Recv_from_right_X(), Send_left_X(), Send_right_X(), and ~Node_ImplicitE_Communications().

msg_sizeX

int Node_ImplicitE_Communications::msg_sizeX

private

Definition at line 67 of file parallel.h.

Referenced by Node_ImplicitE_Communications(), Recv_from_left_X(), Recv_from_right_X(), Send_left_X(), and Send_right_X().

Nbc

int Node_ImplicitE_Communications::Nbc

private

Definition at line 64 of file parallel.h.

Referenced by mirror_bound_Xleft(), mirror_bound_Xright(), Node_ImplicitE_Communications(), Recv_from_left_X(), Recv_from_right_X(), sameNode_mirror_X(), sameNode_periodic_X(), Send_left_X(), and Send_right_X().

---

The documentation for this class was generated from the following files:

• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/parallel.h
• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/parallel.cpp
