VlasovFunctor1D_f1_explicitE Class Reference

#include <vlasov_f1.h>

Inheritance diagram for VlasovFunctor1D_f1_explicitE:

Collaboration diagram for VlasovFunctor1D_f1_explicitE:

Public Member Functions
	VlasovFunctor1D_f1_explicitE (vector< size_t > Nl, vector< size_t > Nm, vector< double > pmax, vector< size_t > Np, double xmin, double xmax, size_t Nx)
	~VlasovFunctor1D_f1_explicitE ()
void	operator() (const State1D &Yin, State1D &Yslope)
void	operator() (const State1D &Yin, const State1D &Y2in, State1D &Yslope)
void	operator() (const State1D &Yin, State1D &Yslope, size_t dir)

Private Attributes
vector< Spatial_Advection_1D_f1 >	SA
vector< Electric_Field_1D_f1 >	EF
vector< Current_1D >	JX
vector< Ampere_1D >	AM
vector< Magnetic_Field_1D_f1 >	BF
vector< Faraday_1D >	FA

Detailed Description

Definition at line 102 of file vlasov_f1.h.

Constructor & Destructor Documentation

VlasovFunctor1D_f1_explicitE()

VlasovFunctor1D_f1_explicitE::VlasovFunctor1D_f1_explicitE	(	vector< size_t >	Nl,
		vector< size_t >	Nm,
		vector< double >	pmax,
		vector< size_t >	Np,
		double	xmin,
		double	xmax,
		size_t	Nx
	)

Definition at line 633 of file vlasov_f1.cpp.

References Spatial_Advection_1D_f1::Spatial_Advection_1D_f1().

                                                                                          {
//--------------------------------------------------------------

    for (size_t s(0); s < Nl.size(); ++s){

        double pmin( pmax[s] / ( double(Np[s] * 2 - 1)) );

        SA.push_back( Spatial_Advection_1D_f1(Nl[s], Nm[s], pmin, pmax[s], Np[s], xmin, xmax, Nx) );

        EF.push_back( Electric_Field_1D_f1(Nl[s], Nm[s], pmin, pmax[s], Np[s], xmin, xmax, Nx) );

        JX.push_back( Current_1D(pmin, pmax[s], Np[s], Nx) );

        BF.push_back( Magnetic_Field_1D_f1(Nl[s], Nm[s], pmin, pmax[s], Np[s], xmin, xmax, Nx) );

//        HA.push_back( Hydro_Advection_1D(Nl[s], Nm[s], pmin, pmax[s], Np[s], xmin, xmax, Nx) );

        AM.push_back( Ampere_1D(xmin, xmax, Nx) );

        FA.push_back( Faraday_1D(xmin, xmax, Nx) );

    }
}

Here is the call graph for this function:

~VlasovFunctor1D_f1_explicitE()

VlasovFunctor1D_f1_explicitE::~VlasovFunctor1D_f1_explicitE ( )

inline

Definition at line 109 of file vlasov_f1.h.

References Spatial_Advection_1D_f1::operator()().

{ };

Here is the call graph for this function:

Member Function Documentation

operator()() [1/3]

void VlasovFunctor1D_f1_explicitE::operator() ( const State1D &  Yin, State1D &  Yslope  )

virtual

Implements Algorithms::AbstFunctor< State1D >.

Definition at line 662 of file vlasov_f1.cpp.

References EMF1D::Bx(), EMF1D::By(), EMF1D::Bz(), State1D::DF(), State1D::EMF(), EMF1D::Ex(), EMF1D::Ey(), EMF1D::Ez(), DistFunc1D::Filterp(), and State1D::Species().

                                                                                {
//--------------------------------------------------------------

    Yslope = 0.0;

    for (size_t s(0); s < Yin.Species(); ++s) {

        SA[s](Yin.DF(s),Yslope.DF(s));

        EF[s](Yin.DF(s),Yin.EMF().Ex(),Yin.EMF().Ey(),Yin.EMF().Ez(),Yslope.DF(s));

        JX[s](Yin.DF(s),Yslope.EMF().Ex(),Yslope.EMF().Ey(),Yslope.EMF().Ez());

//        if (Input::List().hydromotion) HA[s](Yin.DF(s),Yin.HYDRO(),Yslope.DF(s));

        BF[s](Yin.DF(s),Yin.EMF().Bx(),Yin.EMF().By(),Yin.EMF().Bz(),Yslope.DF(s));

        AM[s](Yin.EMF(),Yslope.EMF());

        FA[s](Yin.EMF(),Yslope.EMF());

        Yslope.DF(s) = Yslope.DF(s).Filterp();
    }

}

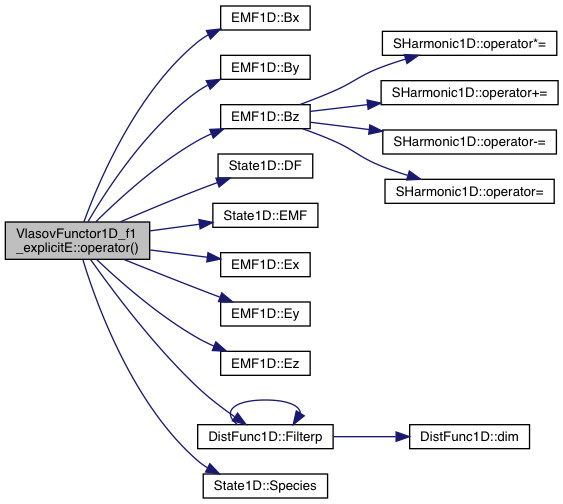

Here is the call graph for this function:

operator()() [2/3]

void VlasovFunctor1D_f1_explicitE::operator()	(	const State1D &	Yin,
		const State1D &	Y2in,
		State1D &	Yslope
	)

Definition at line 689 of file vlasov_f1.cpp.

{}

operator()() [3/3]

void VlasovFunctor1D_f1_explicitE::operator() ( const State1D &  Yin, State1D &  Yslope, size_t  dir  )

virtual

Implements Algorithms::AbstFunctor< State1D >.

Definition at line 688 of file vlasov_f1.cpp.

{}

Field Documentation

AM

vector<Ampere_1D> VlasovFunctor1D_f1_explicitE::AM

private

Definition at line 124 of file vlasov_f1.h.

BF

vector<Magnetic_Field_1D_f1> VlasovFunctor1D_f1_explicitE::BF

private

Definition at line 125 of file vlasov_f1.h.

EF

vector<Electric_Field_1D_f1> VlasovFunctor1D_f1_explicitE::EF

private

Definition at line 122 of file vlasov_f1.h.

FA

vector<Faraday_1D> VlasovFunctor1D_f1_explicitE::FA

private

Definition at line 126 of file vlasov_f1.h.

JX

vector<Current_1D> VlasovFunctor1D_f1_explicitE::JX

private

Definition at line 123 of file vlasov_f1.h.

SA

vector<Spatial_Advection_1D_f1> VlasovFunctor1D_f1_explicitE::SA

private

Definition at line 121 of file vlasov_f1.h.

---

The documentation for this class was generated from the following files:

• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/vlasov_f1.h
• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/vlasov_f1.cpp
