Electric_Field_1D_f1 Class Reference

#include <vlasov_f1.h>

Collaboration diagram for Electric_Field_1D_f1:

Public Member Functions
	Electric_Field_1D_f1 (size_t Nl, size_t Nm, double pmin, double pmax, size_t Np, double xmin, double xmax, size_t Nx)
void	operator() (const DistFunc1D &Din, const Field1D &FEx, const Field1D &FEy, const Field1D &FEz, DistFunc1D &Dh)
void	Implicit_Ex (const DistFunc1D &Din, const Field1D &FEx, DistFunc1D &Dh)
void	Implicit_Ey (const DistFunc1D &Din, const Field1D &FEy, DistFunc1D &Dh)
void	Implicit_Ez (const DistFunc1D &Din, const Field1D &FEz, DistFunc1D &Dh)

Private Member Functions
void	MakeG00 (SHarmonic1D &f)
void	MakeGH (SHarmonic1D &f, size_t l)

Private Attributes
SHarmonic1D	H
SHarmonic1D	G
SHarmonic1D	TMP
complex< double >	A100
complex< double >	C100
complex< double >	A210
complex< double >	B211
complex< double >	C311
complex< double >	A310
valarray< complex< double > >	pr
valarray< complex< double > >	invpr
valarray< complex< double > >	Hp0

Detailed Description

Definition at line 42 of file vlasov_f1.h.

Constructor & Destructor Documentation

Electric_Field_1D_f1()

Electric_Field_1D_f1::Electric_Field_1D_f1	(	size_t	Nl,
		size_t	Nm,
		double	pmin,
		double	pmax,
		size_t	Np,
		double	xmin,
		double	xmax,
		size_t	Nx
	)

Definition at line 37 of file vlasov_f1.cpp.

References A100, A210, A310, B211, C100, C311, Hp0, invpr, and pr.

        : Hp0(Nl+1),
          H(Np,Nx), G(Np,Nx), TMP(Np,Nx),
          pr(Algorithms::MakeAxis(static_cast<complex<double> >(pmin),
                                  static_cast<complex<double> >(pmax),
                                  Np)),
          invpr(pr)
{

//      - - - - - - - - - - - - - - - - - - - - - - - - - - -
         complex<double> lc, mc;

//       Inverted momentum axis
         for (size_t i(0); i < pr.size(); ++i) {
             invpr[i] = 1.0/pr[i];
         }
         double idp = (-1.0)/ (2.0*(pmax-pmin)/double(Np-1)); // -1/(2dp)

//       - - - - - - - - - - - - - - - - - - - - - - - - - - -
        A100 = static_cast<complex<double>>(idp);
        C100 = static_cast<complex<double>>(0.5*idp);
        A210 = static_cast<complex<double>>(1.0/3.0*idp);
        B211 = static_cast<complex<double>>(2.0/3.0);
        A310 = static_cast<complex<double>>(2.0/5.0*idp);
        C311 = static_cast<complex<double>>(-0.5*idp/5.0);

//       - - - - - - - - - - - - - - - - - - - - - - - - - - -
//       -2*Dp*H at the 0 momentum cell
         Hp0[0] = 1.0 / pr[0];
         for (size_t l(1); l < Nl+1; ++l) {
             double ld(l);
             Hp0[l] = Hp0[l-1] * (pr[0]/pr[1]) * (2.0*ld+1.0)/(2.0*ld-1.0);
         }
         Hp0 *= (-2.0)*(pr[1]-pr[0]);

}

Member Function Documentation

Implicit_Ex()

void Electric_Field_1D_f1::Implicit_Ex	(	const DistFunc1D &	Din,
		const Field1D &	FEx,
		DistFunc1D &	Dh
	)

Definition at line 142 of file vlasov_f1.cpp.

References A100, A210, Field1D::array(), G, H, MakeG00(), MakeGH(), SHarmonic1D::mxaxis(), and DistFunc1D::q().

                                                                                                {
//--------------------------------------------------------------
//  This is the calculation for the implicit electric field in x,
//  which is to say Ex as it acts on the first few harmonics.
//--------------------------------------------------------------

    valarray<complex<double> > Ex(FEx.array());
    Ex *= Din.q();

//      m = 0, l = 0
        MakeG00(Din(0,0));
        Ex *= A100;             Dh(1,0) += G.mxaxis(Ex);

//      m = 0, l = 1
        MakeGH(Din(1,0),1);
        Ex *= A210 / A100;   Dh(0,0) += H.mxaxis(Ex);
        // Ex *= A1(1,0) / A2(1,0);   Dh(2,0) += G.mxaxis(Ex);

//      m = 0, l = 2
        // Din(2,0)  = Din(0,0);
        // Din(2,0) *= static_cast<complex<double>>(1.0/3.0);

        // MakeGH(Din(2,0),2);
        // Ex *= A310 / A210;      TMP = H;      Dh(1,0) += H.mxaxis(Ex);


}

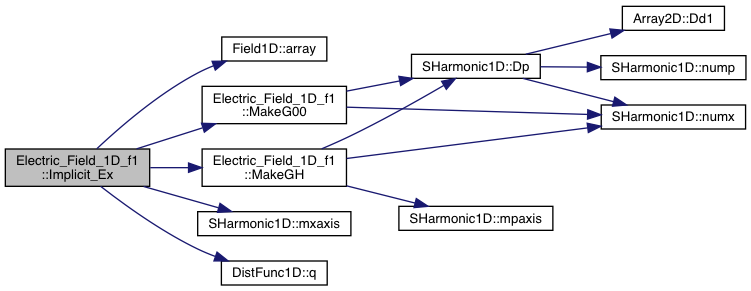

Here is the call graph for this function:

Implicit_Ey()

void Electric_Field_1D_f1::Implicit_Ey	(	const DistFunc1D &	Din,
		const Field1D &	FEy,
		DistFunc1D &	Dh
	)

Definition at line 171 of file vlasov_f1.cpp.

References Field1D::array(), B211, C100, G, H, MakeG00(), MakeGH(), SHarmonic1D::mxaxis(), DistFunc1D::q(), and SHarmonic1D::Re().

                                                                                                {
//--------------------------------------------------------------
//  This is the calculation for the implicit electric field in y
//  and z, which is to say Ex as it acts on the first few harmonics.
//--------------------------------------------------------------

    valarray<complex<double> > Em(FEy.array());
    valarray<complex<double> > Ep(FEy.array());


    Em *= Din.q();;
    Ep *= Din.q();;

//      m = 0, l = 0
        MakeG00(Din(0,0));
        Em *= C100;            Dh(1,1) += G.mxaxis(Em);

//      m = 0, l = 1
        // MakeGH(Din(1,0),1);
        // Em *= C1[1]   / C1[0];  Dh(2,1) += G.mxaxis(Em);

//      m = 0, 1 < l < l0
        // Din(2,0)  = Din(0,0);
        // Din(2,0) *= static_cast<complex<double>>(1.0/3.0);

        // MakeGH(Din(2,0),2);
        // Em *= C311 / C100;                    Dh(1,1) += TMP.mxaxis(Em);

//      m = 0,  l = 3
        // MakeGH(Din(3,0),3);
        // Em *= C3[3]   / C3[2];  Dh(2,1) += H.mxaxis(Em);
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
//      m = 1, l = 1
        MakeGH(Din(1,1),1);
        Ep *= B211;             H = H.mxaxis(Ep); Dh(0,0) += H.Re();
}

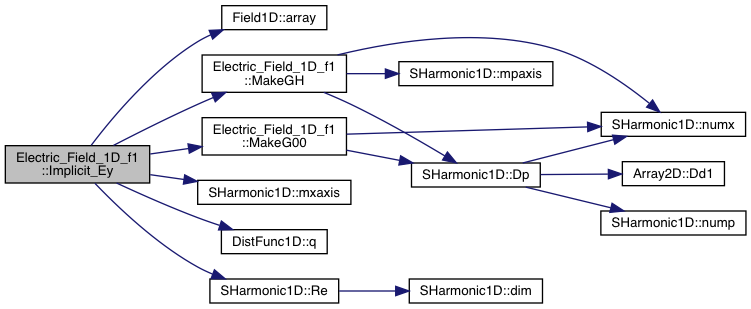

Here is the call graph for this function:

Implicit_Ez()

void Electric_Field_1D_f1::Implicit_Ez	(	const DistFunc1D &	Din,
		const Field1D &	FEz,
		DistFunc1D &	Dh
	)

Definition at line 212 of file vlasov_f1.cpp.

References Field1D::array(), B211, C100, C311, G, H, MakeG00(), MakeGH(), SHarmonic1D::mxaxis(), SHarmonic1D::Re(), and TMP.

                                                                                                {
//--------------------------------------------------------------
//  This is the calculation for the implicit electric field in y
//  and z, which is to say Ex as it acts on the first few harmonics.
//--------------------------------------------------------------
    complex<double> ii(0.0,1.0);


    valarray<complex<double> > Em(FEz.array());
    Em *= (-1.0)*ii;


    valarray<complex<double> > Ep(FEz.array());
    Ep *= ii;
    //      m = 0, l = 0
        MakeG00(Din(0,0));
        Em *= C100;            Dh(1,1) += G.mxaxis(Em);

//      m = 0, l = 1
        // MakeGH(Din(1,0),1);
        // Em *= C1[1]   / C1[0];  Dh(2,1) += G.mxaxis(Em);

//      m = 0, 1 < l < l0
        Din(2,0)  = Din(0,0);
        Din(2,0) *= static_cast<complex<double>>(1.0/3.0);

        MakeGH(Din(2,0),2);
        Em *= C311 / C100;                    Dh(1,1) += TMP.mxaxis(Em);

// //      m = 0,  l = 3
//         MakeGH(Din(3,0),3);
//         Em *= C3[3]   / C3[2];  Dh(2,1) += H.mxaxis(Em);
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -


// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
//      m = 1, l = 1
        MakeGH(Din(1,1),1);
        Ep *= B211;             H = H.mxaxis(Ep); Dh(0,0) += H.Re();
}

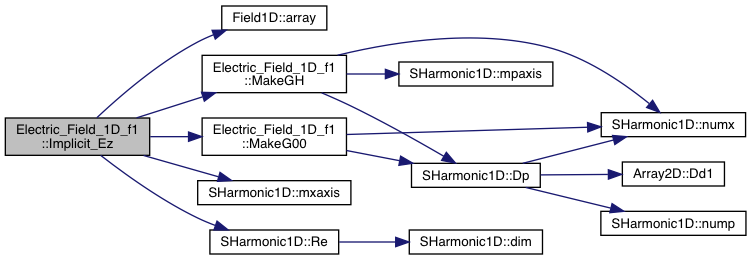

Here is the call graph for this function:

MakeG00()

void Electric_Field_1D_f1::MakeG00 ( SHarmonic1D &  f )

private

Definition at line 278 of file vlasov_f1.cpp.

References SHarmonic1D::Dp(), G, SHarmonic1D::numx(), and pr.

Referenced by Implicit_Ex(), Implicit_Ey(), Implicit_Ez(), and operator()().

                                                 {
//--------------------------------------------------------------
    G = f; G = G.Dp();

    complex<double> p0p1_sq( pr[0]*pr[0]/(pr[1]*pr[1]) ),
            inv_mp0p1_sq( 1.0/(1.0-p0p1_sq) ),
            g_r = -4.0*(pr[1]-pr[0]) * pr[0]/(pr[1]*pr[1]),
            f00;

    for (size_t i(0); i < f.numx(); ++i) {
        f00    = ( f(0,i) - f(1,i) * p0p1_sq) * inv_mp0p1_sq;
        G(0,i) = ( f(1,i) - f00) * g_r;
    }
}

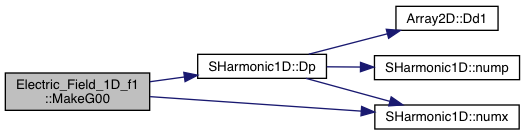

Here is the call graph for this function:

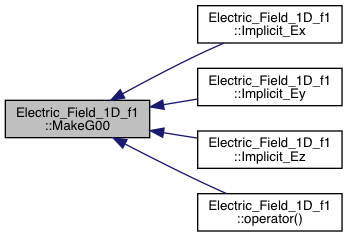

Here is the caller graph for this function:

MakeGH()

void Electric_Field_1D_f1::MakeGH ( SHarmonic1D &  f, size_t  l  )

private

Definition at line 257 of file vlasov_f1.cpp.

References SHarmonic1D::Dp(), G, H, Hp0, invpr, SHarmonic1D::mpaxis(), SHarmonic1D::numx(), and pr.

Referenced by Implicit_Ex(), Implicit_Ey(), Implicit_Ez(), and operator()().

                                                          {
//--------------------------------------------------------------
    valarray<complex<double> > invpax(invpr);
    complex<double> ld(el);

    invpax *= (-2.0)*(ld+1.0) * (pr[1]-pr[0]);

    G = f;                   H = f;
    G = G.Dp();
    H  = H.mpaxis(invpax);
    H += G;
    G *= -(2.0*ld+1.0)/ld;
    G += H;

    for (size_t i(0); i < G.numx(); ++i) G(0,i) = 0.0;
    for (size_t i(0); i < H.numx(); ++i) H(0,i) = f(1,i) * Hp0[el];
}

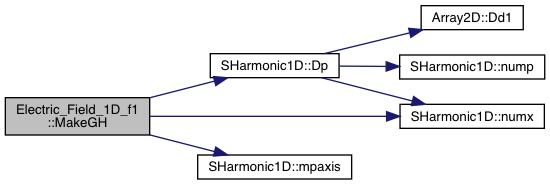

Here is the call graph for this function:

Here is the caller graph for this function:

operator()()

void Electric_Field_1D_f1::operator()	(	const DistFunc1D &	Din,
		const Field1D &	FEx,
		const Field1D &	FEy,
		const Field1D &	FEz,
		DistFunc1D &	Dh
	)

Definition at line 81 of file vlasov_f1.cpp.

References A100, A210, Field1D::array(), B211, C100, G, H, DistFunc1D::l0(), DistFunc1D::m0(), MakeG00(), MakeGH(), SHarmonic1D::mxaxis(), DistFunc1D::q(), SHarmonic1D::Re(), and TMP.

                                                   {
//--------------------------------------------------------------
//  This is the core calculation for the electric field
//--------------------------------------------------------------

    complex<double> ii(0.0,1.0);

    valarray<complex<double> > Ex(FEx.array());
    valarray<complex<double> > Em(FEz.array());
    Em *= (-1.0)*ii;
    Em += FEy.array();
    valarray<complex<double> > Ep(FEz.array());
    Ep *= ii;
    Ep += FEy.array();

    Ex *= Din.q();
    Em *= Din.q();
    Ep *= Din.q();

    size_t l0(Din.l0());
    size_t m0(Din.m0());


// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
//      m = 0, l = 0
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    MakeG00(Din(0,0));
    Ex *= A100; TMP = G; Dh(1,0) += G.mxaxis(Ex);
    Em *= C100;            Dh(1,1) += TMP.mxaxis(Em);

// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
//      m = 0, l = 1
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
    MakeGH(Din(1,0),1);
    Ex *= A210 / A100;          Dh(0,0) += H.mxaxis(Ex);

// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
//      m = 0, 1 < l < l0
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

        // Din(2,0)  = Din(0,0);
        // Din(2,0) *= static_cast<complex<double>>(1.0/3.0);

        // MakeGH(Din(2,0),2);
        // Ex *= A310 / A210;      TMP = H;      Dh(1,0) += H.mxaxis(Ex);
        // Em *= C311 / C100;                    Dh(1,1) += TMP.mxaxis(Em);

// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
//      m = 1, l = 1
// - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
        MakeGH(Din(1,1),1);
        Ep *= B211;              H = H.mxaxis(Ep);     Dh(0,0) += H.Re();

}

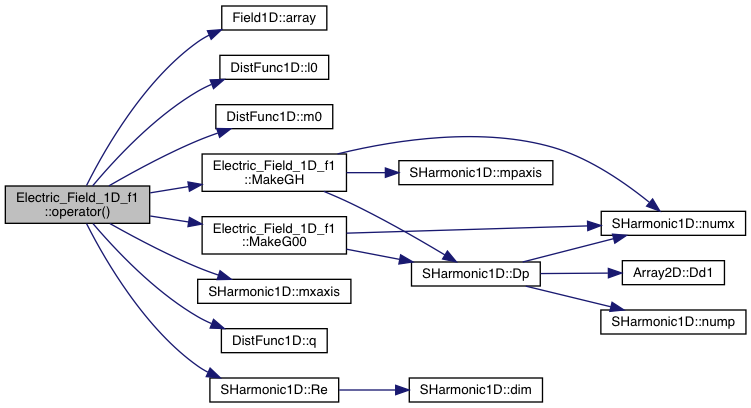

Here is the call graph for this function:

Field Documentation

A100

complex<double> Electric_Field_1D_f1::A100

private

Definition at line 63 of file vlasov_f1.h.

Referenced by Electric_Field_1D_f1(), Implicit_Ex(), and operator()().

A210

complex<double> Electric_Field_1D_f1::A210

private

Definition at line 63 of file vlasov_f1.h.

Referenced by Electric_Field_1D_f1(), Implicit_Ex(), and operator()().

A310

complex<double> Electric_Field_1D_f1::A310

private

Definition at line 63 of file vlasov_f1.h.

Referenced by Electric_Field_1D_f1().

B211

complex<double> Electric_Field_1D_f1::B211

private

Definition at line 63 of file vlasov_f1.h.

Referenced by Electric_Field_1D_f1(), Implicit_Ey(), Implicit_Ez(), and operator()().

C100

complex<double> Electric_Field_1D_f1::C100

private

Definition at line 63 of file vlasov_f1.h.

Referenced by Electric_Field_1D_f1(), Implicit_Ey(), Implicit_Ez(), and operator()().

C311

complex<double> Electric_Field_1D_f1::C311

private

Definition at line 63 of file vlasov_f1.h.

Referenced by Electric_Field_1D_f1(), and Implicit_Ez().

G

SHarmonic1D Electric_Field_1D_f1::G

private

Definition at line 61 of file vlasov_f1.h.

Referenced by Implicit_Ex(), Implicit_Ey(), Implicit_Ez(), MakeG00(), MakeGH(), and operator()().

H

SHarmonic1D Electric_Field_1D_f1::H

private

Definition at line 61 of file vlasov_f1.h.

Referenced by Implicit_Ex(), Implicit_Ey(), Implicit_Ez(), MakeGH(), and operator()().

Hp0

valarray< complex<double> > Electric_Field_1D_f1::Hp0

private

Definition at line 69 of file vlasov_f1.h.

Referenced by Electric_Field_1D_f1(), and MakeGH().

invpr

valarray< complex<double> > Electric_Field_1D_f1::invpr

private

Definition at line 69 of file vlasov_f1.h.

Referenced by Electric_Field_1D_f1(), and MakeGH().

pr

valarray< complex<double> > Electric_Field_1D_f1::pr

private

Definition at line 69 of file vlasov_f1.h.

Referenced by Electric_Field_1D_f1(), MakeG00(), and MakeGH().

TMP

SHarmonic1D Electric_Field_1D_f1::TMP

private

Definition at line 61 of file vlasov_f1.h.

Referenced by Implicit_Ez(), and operator()().

---

The documentation for this class was generated from the following files:

• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/vlasov_f1.h
• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/vlasov_f1.cpp
