#include <functors.h>

Inheritance diagram for VlasovFunctor1D_momentumpush:

Collaboration diagram for VlasovFunctor1D_momentumpush:

Public Member Functions
	VlasovFunctor1D_momentumpush (vector< size_t > Nl, vector< size_t > Nm, vector< double > pmax, vector< size_t > Np, double xmin, double xmax, size_t Nx)

	~VlasovFunctor1D_momentumpush ()

void	operator() (const State1D &Yin, State1D &Yslope)

void	operator() (const State1D &Yin, State1D &Yslope, size_t dir)

Private Attributes
vector< Electric_Field_1D >	EF

vector< Current_1D >	JX

vector< Ampere_1D >	AM

vector< Magnetic_Field_1D >	BF

vector< Faraday_1D >	FA

Detailed Description

Definition at line 67 of file functors.h.

Constructor & Destructor Documentation

◆ VlasovFunctor1D_momentumpush()

VlasovFunctor1D_momentumpush::VlasovFunctor1D_momentumpush	(	vector< size_t >	Nl,
		vector< size_t >	Nm,
		vector< double >	pmax,
		vector< size_t >	Np,
		double	xmin,
		double	xmax,
		size_t	Nx
	)

Definition at line 213 of file functors.cpp.

References VlasovFunctor1D_explicitE::AM, VlasovFunctor1D_explicitE::BF, VlasovFunctor1D_explicitE::EF, VlasovFunctor1D_explicitE::FA, and VlasovFunctor1D_explicitE::JX.

                                                                             {
 //--------------------------------------------------------------

     for (size_t s(0); s < Nl.size(); ++s){

         EF.push_back( Electric_Field_1D(Nl[s], Nm[s], 0.0, pmax[s], Np[s], xmin, xmax, Nx) );

         JX.push_back( Current_1D(0.0, pmax[s], Np[s], Nx) );

         BF.push_back( Magnetic_Field_1D(Nl[s], Nm[s], 0.0, pmax[s], Np[s], xmin, xmax, Nx) );

         AM.push_back( Ampere_1D(xmin, xmax, Nx) );

         FA.push_back( Faraday_1D(xmin, xmax, Nx) );

     }
 }

◆ ~VlasovFunctor1D_momentumpush()

VlasovFunctor1D_momentumpush::~VlasovFunctor1D_momentumpush ( )

inline

Definition at line 74 of file functors.h.

References VlasovFunctor1D_explicitE::operator()().

74 { };

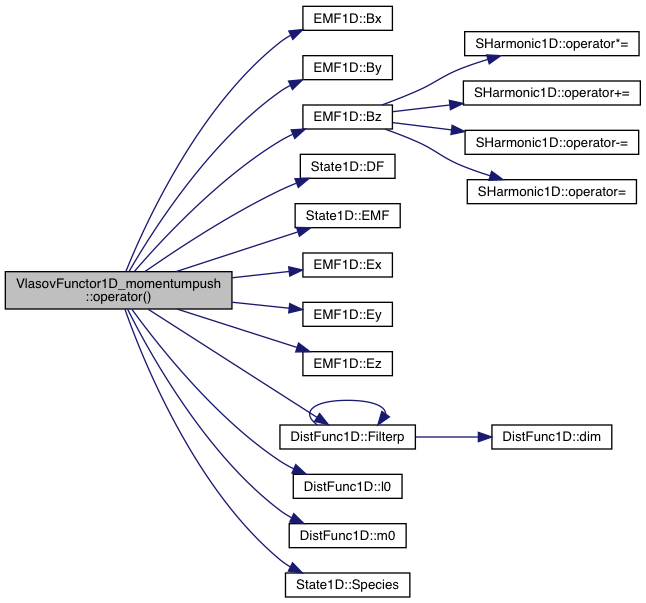

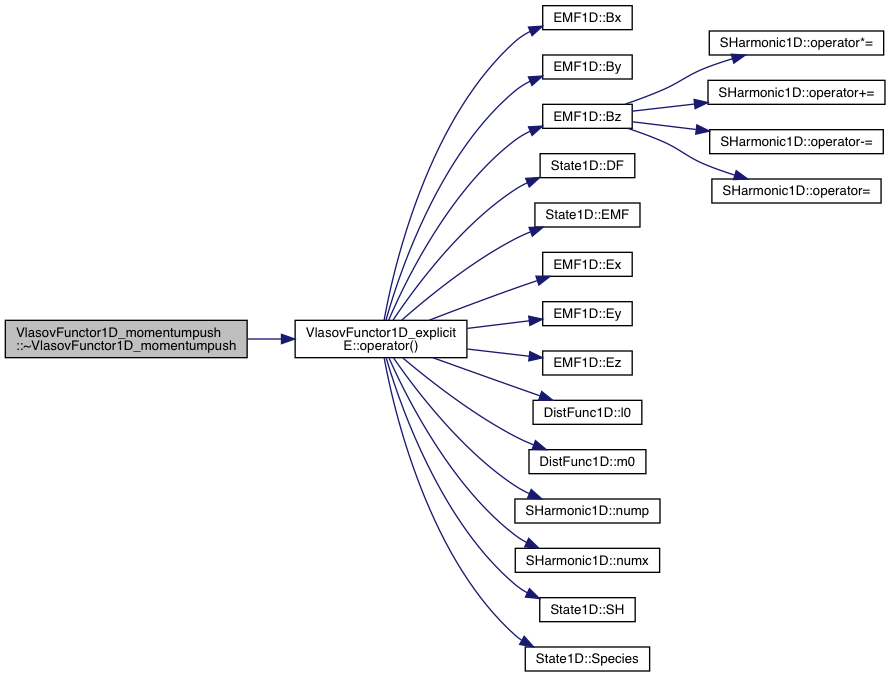

Here is the call graph for this function:

Member Function Documentation

◆ operator()() [1/2]

void VlasovFunctor1D_momentumpush::operator()	(	const State1D &	Yin,
		State1D &	Yslope
	)

virtual

Implements Algorithms::AbstFunctor< State1D >.

Definition at line 236 of file functors.cpp.

References VlasovFunctor1D_explicitE::AM, VlasovFunctor1D_explicitE::BF, EMF1D::Bx(), EMF1D::By(), EMF1D::Bz(), State1D::DF(), VlasovFunctor1D_explicitE::EF, State1D::EMF(), EMF1D::Ex(), EMF1D::Ey(), EMF1D::Ez(), VlasovFunctor1D_explicitE::FA, DistFunc1D::Filterp(), VlasovFunctor1D_explicitE::JX, DistFunc1D::l0(), DistFunc1D::m0(), and State1D::Species().

                                                                                 {
 //--------------------------------------------------------------

     Yslope = 0.0;

     for (size_t s(0); s < Yin.Species(); ++s) {

         if (Yin.DF(s).l0() == 1) {

             EF[s].f1only(Yin.DF(s),Yin.EMF().Ex(),Yin.EMF().Ey(),Yin.EMF().Ez(),Yslope.DF(s));

             BF[s].f1only(Yin.DF(s),Yin.EMF().Bx(),Yin.EMF().By(),Yin.EMF().Bz(),Yslope.DF(s));

             JX[s](Yin.DF(s),Yslope.EMF().Ex(),Yslope.EMF().Ey(),Yslope.EMF().Ez());

             AM[s](Yin.EMF(),Yslope.EMF());

             FA[s](Yin.EMF(),Yslope.EMF());

         }
         else if (Yin.DF(s).m0() == 0) {

             EF[s].es1d(Yin.DF(s),Yin.EMF().Ex(),Yin.EMF().Ey(),Yin.EMF().Ez(),Yslope.DF(s));

             JX[s].es1d(Yin.DF(s),Yslope.EMF().Ex());

         }

         else {

             EF[s](Yin.DF(s),Yin.EMF().Ex(),Yin.EMF().Ey(),Yin.EMF().Ez(),Yslope.DF(s));

             BF[s](Yin.DF(s),Yin.EMF().Bx(),Yin.EMF().By(),Yin.EMF().Bz(),Yslope.DF(s));

             JX[s](Yin.DF(s),Yslope.EMF().Ex(),Yslope.EMF().Ey(),Yslope.EMF().Ez());

             AM[s](Yin.EMF(),Yslope.EMF());

             FA[s](Yin.EMF(),Yslope.EMF());

         }

         Yslope.DF(s) = Yslope.DF(s).Filterp();
     }

 }
