OSHUN  beta
Arbitrary Order Spherical-Harmonic 1D-3P Vlasov-Fokker-Planck-Maxwell code
Typedefs | Functions
Setup_Y Namespace Reference

Typedefs

typedef exprtk::symbol_table< double > symbol_table_t

typedef exprtk::expression< double > expression_t

typedef exprtk::parser< double > parser_t

typedef exprtk::parser_error::type error_t


Functions

void checkparse (parser_t &parser, std::string &expression_str, expression_t &expression)

void parseprofile (const valarray< double > &grid, std::string &str_profile, valarray< double > &profile)
 { function_description } More...

void parseprofile (const double &input, std::string &str_profile, double &ouput)
 { function_description } More...

void parsetwovariableprofile (const valarray< double > &grid, const double &input, std::string &str_profile, valarray< double > &ouput)
 { function_description } More...

void init_f0 (size_t s, SHarmonic1D &h, const valarray< double > &p, const valarray< double > &x, valarray< double > &density, valarray< double > &temperature, const double mass, const valarray< double > &pedestal)

void init_f1 (size_t s, SHarmonic1D &h, const valarray< double > &p, const valarray< double > &x, valarray< double > &density, valarray< double > &temperature, valarray< double > &f10x, const SHarmonic1D &f0, const double mass)

void init_f2 (size_t s, SHarmonic1D &h, const valarray< double > &p, const valarray< double > &x, valarray< double > &density, valarray< double > &temperature, valarray< double > &f20x, const double mass)

void initialize (State1D &Y, Grid_Info &grid)

void applyexternalfields (Grid_Info &grid, State1D &Y, double time)

void applytravelingwave (Grid_Info &grid, State1D &Y, double time)


Typedef Documentation

◆ error_t

typedef exprtk::parser_error::type Setup_Y::error_t

Definition at line 58 of file setup.h.

◆ expression_t

typedef exprtk::expression<double> Setup_Y::expression_t

Definition at line 56 of file setup.h.

◆ parser_t

typedef exprtk::parser<double> Setup_Y::parser_t

Definition at line 57 of file setup.h.

◆ symbol_table_t

typedef exprtk::symbol_table<double> Setup_Y::symbol_table_t

Definition at line 55 of file setup.h.

Function Documentation

◆ applyexternalfields()

void Setup_Y::applyexternalfields ( Grid_Info &  grid,
State1D &  Y,
double  time
)

Definition at line 51 of file setup.cpp.

References Grid_Info::axis, EMF1D::Bx(), Input::Input_List::bx_profile_str, EMF1D::By(), Input::Input_List::by_profile_str, EMF1D::Bz(), Input::Input_List::bz_profile_str, State1D::EMF(), EMF1D::Ex(), Input::Input_List::ex_profile_str, EMF1D::Ey(), Input::Input_List::ey_profile_str, EMF1D::Ez(), Input::Input_List::ez_profile_str, Input::List(), SHarmonic1D::numx(), Algorithms::AxisBundle< T >::Nx(), parseprofile(), State1D::SH(), and Algorithms::AxisBundle< T >::x().

Referenced by main().

52 {
53
54  valarray<double> Ex_profile( grid.axis.Nx(0));
55  valarray<double> Ey_profile( grid.axis.Nx(0));
56  valarray<double> Ez_profile( grid.axis.Nx(0));
57  valarray<double> Bx_profile( grid.axis.Nx(0));
58  valarray<double> By_profile( grid.axis.Nx(0));
59  valarray<double> Bz_profile( grid.axis.Nx(0));
60
61  double ex_time_coeff(0.0);
62  double ey_time_coeff(0.0);
63  double ez_time_coeff(0.0);
64  double bx_time_coeff(0.0);
65  double by_time_coeff(0.0);
66  double bz_time_coeff(0.0);
67
68  parseprofile(grid.axis.x(0), Input::List().ex_profile_str, Ex_profile);
69  parseprofile(grid.axis.x(0), Input::List().ey_profile_str, Ey_profile);
70  parseprofile(grid.axis.x(0), Input::List().ez_profile_str, Ez_profile);
71  parseprofile(grid.axis.x(0), Input::List().bx_profile_str, Bx_profile);
72  parseprofile(grid.axis.x(0), Input::List().by_profile_str, By_profile);
73  parseprofile(grid.axis.x(0), Input::List().bz_profile_str, Bz_profile);
74
75  parseprofile(time, Input::List().ex_time_profile_str, ex_time_coeff);
76  parseprofile(time, Input::List().ey_time_profile_str, ey_time_coeff);
77  parseprofile(time, Input::List().ez_time_profile_str, ez_time_coeff);
78  parseprofile(time, Input::List().bx_time_profile_str, bx_time_coeff);
79  parseprofile(time, Input::List().by_time_profile_str, by_time_coeff);
80  parseprofile(time, Input::List().bz_time_profile_str, bz_time_coeff);
81
82  for (size_t ix(0);ix<Y.SH(0,0,0).numx();++ix)
83  {
84  if (ex_time_coeff > 1e-20) Y.EMF().Ex()(ix) = Ex_profile[ix]*ex_time_coeff;
85  if (ey_time_coeff > 1e-20) Y.EMF().Ey()(ix) = Ey_profile[ix]*ey_time_coeff;
86  if (ez_time_coeff > 1e-20) Y.EMF().Ez()(ix) = Ez_profile[ix]*ez_time_coeff;
87  if (bx_time_coeff > 1e-20) Y.EMF().Bx()(ix) = Bx_profile[ix]*bx_time_coeff;
88  if (by_time_coeff > 1e-20) Y.EMF().By()(ix) = By_profile[ix]*by_time_coeff;
89  if (bz_time_coeff > 1e-20) Y.EMF().Bz()(ix) = Bz_profile[ix]*bz_time_coeff;
90
91  }
92 }
EMF1D::By
Field1D & By()
Definition: state.h:294
Input::Input_List::bz_profile_str
std::string bz_profile_str
Definition: input.h:136
Input::Input_List::by_profile_str
std::string by_profile_str
Definition: input.h:135
Input::Input_List::ex_profile_str
std::string ex_profile_str
Definition: input.h:131
Input::Input_List::ey_profile_str
std::string ey_profile_str
Definition: input.h:132
SHarmonic1D::numx
size_t numx() const
Definition: state.h:72
EMF1D::Ez
Field1D & Ez()
Definition: state.h:292
EMF1D::Bx
Field1D & Bx()
Definition: state.h:293
Input::Input_List::ez_profile_str
std::string ez_profile_str
Definition: input.h:133
EMF1D::Bz
Field1D & Bz()
Definition: state.h:295
State1D::SH
SHarmonic1D & SH(size_t s, size_t lh, size_t mh)
Definition: state.h:605
EMF1D::Ex
Field1D & Ex()
Definition: state.h:290
Grid_Info::axis
const Algorithms::AxisBundle< double > axis
Definition: setup.h:47
Input::List
Input_List & List()
Definition: input.cpp:1585
Input::Input_List::bx_profile_str
std::string bx_profile_str
Definition: input.h:134
EMF1D::Ey
Field1D & Ey()
Definition: state.h:291
Algorithms::AxisBundle::Nx
size_t Nx(size_t i) const
Definition: lib-algorithms.h:98
Setup_Y::parseprofile
void parseprofile(const valarray< double > &grid, std::string &str_profile, valarray< double > &profile)
{ function_description }
Definition: setup.cpp:410
Algorithms::AxisBundle::x
valarray< T > x(size_t i) const
Definition: lib-algorithms.h:97
State1D::EMF
EMF1D & EMF() const
Definition: state.h:610

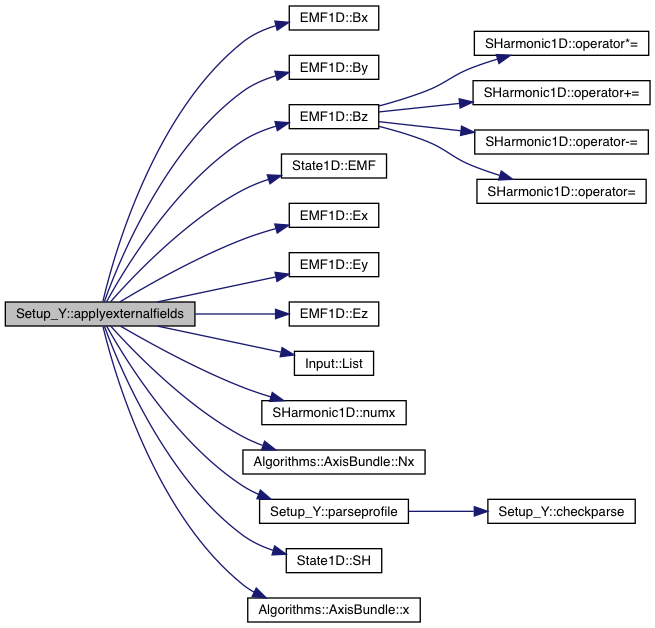

Here is the call graph for this function:
Here is the caller graph for this function:

◆ applytravelingwave()

void Setup_Y::applytravelingwave ( Grid_Info &  grid,
State1D &  Y,
double  time
)

Parse the strings

Definition at line 95 of file setup.cpp.

References Grid_Info::axis, EMF1D::Bx(), Input::Input_List::bx_wave_profile_str, EMF1D::By(), Input::Input_List::by_wave_profile_str, EMF1D::Bz(), Input::Input_List::bz_wave_profile_str, State1D::EMF(), EMF1D::Ex(), Input::Input_List::ex_wave_profile_str, EMF1D::Ey(), Input::Input_List::ey_wave_profile_str, EMF1D::Ez(), Input::Input_List::ez_wave_profile_str, Input::List(), Input::Input_List::num_waves, SHarmonic1D::numx(), Algorithms::AxisBundle< T >::Nx(), parsetwovariableprofile(), State1D::SH(), Input::Input_List::trav_wave_center, Input::Input_List::trav_wave_fall, Input::Input_List::trav_wave_flat, Input::Input_List::trav_wave_rise, and Algorithms::AxisBundle< T >::x().

Referenced by main().

96 {
97
98  for (size_t n(0); n < Input::List().num_waves; ++n)
99  {
100
101  valarray<double> Ex_profile( grid.axis.Nx(0));
102  valarray<double> Ey_profile( grid.axis.Nx(0));
103  valarray<double> Ez_profile( grid.axis.Nx(0));
104  valarray<double> Bx_profile( grid.axis.Nx(0));
105  valarray<double> By_profile( grid.axis.Nx(0));
106  valarray<double> Bz_profile( grid.axis.Nx(0));
107
108
110  parsetwovariableprofile(grid.axis.x(0), time, Input::List().ex_wave_profile_str[n], Ex_profile);
111  parsetwovariableprofile(grid.axis.x(0), time, Input::List().ey_wave_profile_str[n], Ey_profile);
112  parsetwovariableprofile(grid.axis.x(0), time, Input::List().ez_wave_profile_str[n], Ez_profile);
113  parsetwovariableprofile(grid.axis.x(0), time, Input::List().bx_wave_profile_str[n], Bx_profile);
114  parsetwovariableprofile(grid.axis.x(0), time, Input::List().by_wave_profile_str[n], By_profile);
115  parsetwovariableprofile(grid.axis.x(0), time, Input::List().bz_wave_profile_str[n], Bz_profile);
116
117  double time_coeff(-1.0);
118
119  // parseprofile(time, Input::List().wave_time_envelope_str[n], time_coeff);
120
121  double pulse_start(Input::List().trav_wave_center[n] -
122  Input::List().trav_wave_flat[n]*0.5 -
123  Input::List().trav_wave_rise[n] );
124
125  double pulse_end(Input::List().trav_wave_center[n] +
126  Input::List().trav_wave_flat[n]*0.5 +
127  Input::List().trav_wave_fall[n] );
128
129  double normalized_time(0.0);
130
131  // std::cout << "\n pulse_start, end = " << pulse_start << "," << pulse_end;
132
133
134  if (time >= pulse_start && time <= pulse_end)
135  {
136  if (time < Input::List().trav_wave_center[n] - 0.5*Input::List().trav_wave_flat[n])
137  {
138  normalized_time = (time - pulse_start)/ Input::List().trav_wave_rise[n];
139
140  time_coeff = 6.0 * pow(normalized_time,5.0);
141  time_coeff -= 15.0 * pow(normalized_time,4.0);
142  time_coeff += 10.0 * pow(normalized_time,3.0);
143  }
144  else if (time >= Input::List().trav_wave_center[n] - 0.5*Input::List().trav_wave_flat[n] &&
145  time <= Input::List().trav_wave_center[n] + 0.5*Input::List().trav_wave_flat[n])
146  {
147  time_coeff = 1.0;
148  }
149  else if (time > Input::List().trav_wave_center[n] + 0.5*Input::List().trav_wave_flat[n])
150  {
151  normalized_time = (time - (Input::List().trav_wave_center[n] + 0.5*Input::List().trav_wave_flat[n]))
152  / Input::List().trav_wave_fall[n];
153
154  time_coeff = 15.0 * pow(normalized_time,4.0);
155  time_coeff -= 6.0 * pow(normalized_time,5.0);
156  time_coeff -= 10.0 * pow(normalized_time,3.0);
157  time_coeff += 1.0;
158  }
159  }
160
161  if (time_coeff > 0.0)
162  {
163  for (size_t ix(0);ix<Y.SH(0,0,0).numx();++ix)
164  {
165  Y.EMF().Ex()(ix) += Ex_profile[ix]*time_coeff;
166  Y.EMF().Ey()(ix) += Ey_profile[ix]*time_coeff;
167  Y.EMF().Ez()(ix) += Ez_profile[ix]*time_coeff;
168  Y.EMF().Bx()(ix) += Bx_profile[ix]*time_coeff;
169  Y.EMF().By()(ix) += By_profile[ix]*time_coeff;
170  Y.EMF().Bz()(ix) += Bz_profile[ix]*time_coeff;
171  }
172  }
173  }
174 }
Input::Input_List::ez_wave_profile_str
std::vector< std::string > ez_wave_profile_str
Definition: input.h:140
EMF1D::By
Field1D & By()
Definition: state.h:294
Input::Input_List::bz_wave_profile_str
std::vector< std::string > bz_wave_profile_str
Definition: input.h:143
Input::Input_List::trav_wave_center
std::vector< double > trav_wave_center
Definition: input.h:148
Input::Input_List::ex_wave_profile_str
std::vector< std::string > ex_wave_profile_str
Definition: input.h:138
Input::Input_List::trav_wave_rise
std::vector< double > trav_wave_rise
Definition: input.h:145
Setup_Y::parsetwovariableprofile
void parsetwovariableprofile(const valarray< double > &grid, const double &input, std::string &str_profile, valarray< double > &ouput)
{ function_description }
Definition: setup.cpp:633
SHarmonic1D::numx
size_t numx() const
Definition: state.h:72
EMF1D::Ez
Field1D & Ez()
Definition: state.h:292
Input::Input_List::trav_wave_flat
std::vector< double > trav_wave_flat
Definition: input.h:146
Input::Input_List::trav_wave_fall
std::vector< double > trav_wave_fall
Definition: input.h:147
Input::Input_List::by_wave_profile_str
std::vector< std::string > by_wave_profile_str
Definition: input.h:142
EMF1D::Bx
Field1D & Bx()
Definition: state.h:293
EMF1D::Bz
Field1D & Bz()
Definition: state.h:295
State1D::SH
SHarmonic1D & SH(size_t s, size_t lh, size_t mh)
Definition: state.h:605
EMF1D::Ex
Field1D & Ex()
Definition: state.h:290
Grid_Info::axis
const Algorithms::AxisBundle< double > axis
Definition: setup.h:47
Input::Input_List::bx_wave_profile_str
std::vector< std::string > bx_wave_profile_str
Definition: input.h:141
Input::List
Input_List & List()
Definition: input.cpp:1585
Input::Input_List::num_waves
int num_waves
Definition: input.h:118
EMF1D::Ey
Field1D & Ey()
Definition: state.h:291
Input::Input_List::ey_wave_profile_str
std::vector< std::string > ey_wave_profile_str
Definition: input.h:139
Algorithms::AxisBundle::Nx
size_t Nx(size_t i) const
Definition: lib-algorithms.h:98
Algorithms::AxisBundle::x
valarray< T > x(size_t i) const
Definition: lib-algorithms.h:97
State1D::EMF
EMF1D & EMF() const
Definition: state.h:610

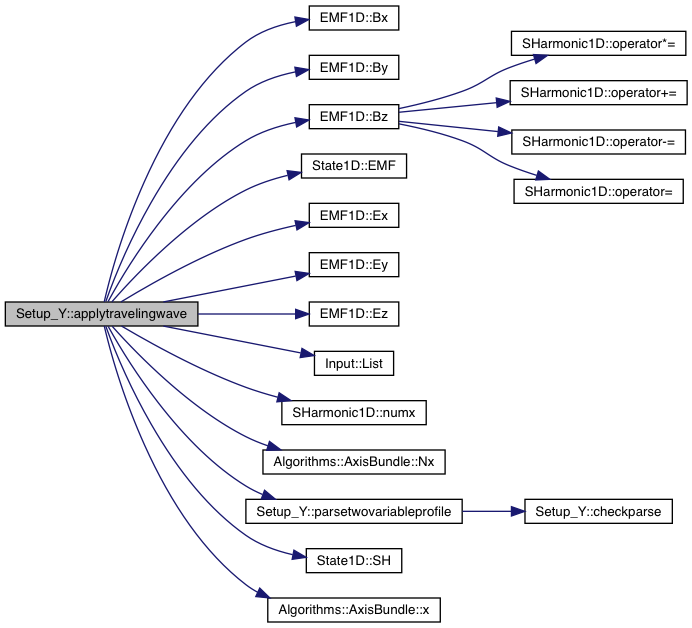

Here is the call graph for this function:
Here is the caller graph for this function:

◆ checkparse()

void Setup_Y::checkparse ( parser_t &  parser,
std::string &  expression_str,
expression_t &  expression
)

Definition at line 375 of file setup.cpp.

Referenced by parseprofile(), and parsetwovariableprofile().

375  {
376 //----------------------------------------------------------------------------------------------------------------------------
377 //----------------------------------------------------------------------------------------------------------------------------
378
379
380  if (!parser.compile(expression_str,expression))
381  {
382  printf("Error: %s\tExpression: %s\n",
383  parser.error().c_str(),
384  expression_str.c_str());
385
386  for (std::size_t i = 0; i < parser.error_count(); ++i)
387  {
388  error_t error = parser.get_error(i);
389  printf("Error: %02d Position: %02d Type: [%s] Msg: %s Expr: %s\n",
390  static_cast<int>(i),
391  static_cast<int>(error.token.position),
392  exprtk::parser_error::to_str(error.mode).c_str(),
393  error.diagnostic.c_str(),
394  expression_str.c_str());
395  }
396
397  exit(1);
398  }
399
400
401 }
Setup_Y::error_t
exprtk::parser_error::type error_t
Definition: setup.h:58
Here is the caller graph for this function:

◆ init_f0()

void Setup_Y::init_f0 ( size_t  s,
SHarmonic1D &  h,
const valarray< double > &  p,
const valarray< double > &  x,
valarray< double > &  density,
valarray< double > &  temperature,
const double  mass,
const valarray< double > &  pedestal
)

Definition at line 258 of file setup.cpp.

References Input::List(), SHarmonic1D::nump(), SHarmonic1D::numx(), and Input::Input_List::super_gaussian_m.

Referenced by initialize().

259  {
260 //-----------------------------------------------------------------------------
261 //-----------------------------------------------------------------------------
262  double alpha, coeff, coefftemp;
263  double m = Input::List().super_gaussian_m;
264
265  alpha = sqrt(3.0*tgamma(3.0/m)/2.0/tgamma(5.0/m));
266  coeff = m/alpha/alpha/alpha/tgamma(3.0/m);
267  coeff *= sqrt(M_PI)/4.0;
268
269 // std::cout << "\n alpha = " << alpha << ", coeff = " << coeff << "\n";
270  for (int j(0); j < h.numx(); ++j){
271
272  coefftemp = coeff*density[j]/pow(2.0*M_PI*temperature[j]*mass,1.5);
273  for (int k(0); k < h.nump(); ++k){
274  // New formulation for temperature distribution and super-Gaussians
275  h(k,j) = coefftemp*exp(-1.0*pow((p[k])/alpha/sqrt(2.0*temperature[j]*mass),m));
276  h(k,j)+= pedestal[j];
277
278  // h(k,j)= coefftemp*exp(-pow((p[k]-3.0)/alpha/sqrt(2.0*temperature[j]/mass),m));
279  // if (p[k] < 3.0) h(k,j) += 1e-2;
280 // if (j==3) std :: cout << "p = " << p[k] << ", h = " << h(k,j).real() << "\n";
281
282  }
283
284  // h(0,j) = 1.425577e2;
285  // h(1,j) = 1.497164e1;
286  // h(2,j) = 1.527841e-1;
287  // h(3,j) = 1.515014e-4;
288  // h(4,j) = 1.459772e-8;
289  // h(5,j) = 1.366732e-13;
290  // h(6,j) = 1.243401e-19;
291  // h(7,j) = 1.099181e-26;
292
293
294
295  }
296
297 }
SHarmonic1D::numx
size_t numx() const
Definition: state.h:72
Input::Input_List::super_gaussian_m
double super_gaussian_m
Definition: input.h:91
SHarmonic1D::nump
size_t nump() const
Definition: state.h:71
Input::List
Input_List & List()
Definition: input.cpp:1585
Here is the call graph for this function:
Here is the caller graph for this function:

◆ init_f1()

void Setup_Y::init_f1 ( size_t  s,
SHarmonic1D &  h,
const valarray< double > &  p,
const valarray< double > &  x,
valarray< double > &  density,
valarray< double > &  temperature,
valarray< double > &  f10x,
const SHarmonic1D &  f0,
const double  mass
)

Definition at line 300 of file setup.cpp.

References SHarmonic1D::Dp(), Input::List(), SHarmonic1D::nump(), SHarmonic1D::numx(), and Input::Input_List::super_gaussian_m.

Referenced by initialize().

301  {
302 //----------------------------------------------------------------------------------------------------------------------
303 //----------------------------------------------------------------------------------------------------------------------
304  double alpha, coeff, coefftemp;
305  double m = Input::List().super_gaussian_m;
306
307  SHarmonic1D df0(f0); df0.Dp();
308
309  double idp = -0.5/(p[1]-p[0]);
310
311  alpha = sqrt(3.0*tgamma(3.0/m)/2.0/tgamma(5.0/m));
312  coeff = m/4.0*sqrt(M_PI)*alpha/alpha/alpha/tgamma(3.0/m);
313
314  for (int j(0); j < h.numx(); ++j){
315
316  coefftemp = coeff*density[j]/pow(2.0*M_PI*temperature[j]*mass,1.5)*f10x[j];
317  for (int k(0); k < h.nump(); ++k){
318  // New formulation for temperature distribution and super-Gaussians
319 // h(k,j) = coefftemp*exp(-pow((p[k])/alpha/sqrt(2.0*temperature[j]*mass),m))*pow(p[k],3.0)*(p[k]/mass/temperature[j]);
320  h(k,j) = idp*df0(k,j)*pow(p[k],3.0)*f10x[j];
321
322  // h(k,j)= coefftemp*exp(-pow((p[k]-3.0)/alpha/sqrt(2.0*temperature[j]/mass),m));
323  // if (p[k] < 3.0) h(k,j) += 1e-2;
324 // if (j==3) std :: cout << "p = " << p[k] << ", h = " << h(k,j) << "\n";
325
326  }
327
328  }
329
330 }
SHarmonic1D::numx
size_t numx() const
Definition: state.h:72
SHarmonic1D
A 1D Spherical Harmonic.
Definition: state.h:57
Input::Input_List::super_gaussian_m
double super_gaussian_m
Definition: input.h:91
SHarmonic1D::nump
size_t nump() const
Definition: state.h:71
Input::List
Input_List & List()
Definition: input.cpp:1585

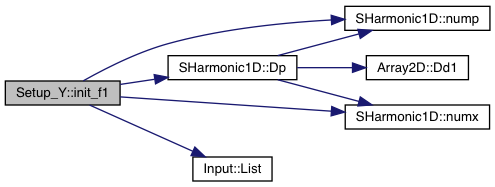

Here is the call graph for this function:
Here is the caller graph for this function:

◆ init_f2()

void Setup_Y::init_f2 ( size_t  s,
SHarmonic1D &  h,
const valarray< double > &  p,
const valarray< double > &  x,
valarray< double > &  density,
valarray< double > &  temperature,
valarray< double > &  f20x,
const double  mass
)

Definition at line 333 of file setup.cpp.

References SHarmonic1D::nump(), and SHarmonic1D::numx().

334  {
335 //-----------------------------------------------------------------------------
336 //-----------------------------------------------------------------------------
337  double alpha, coeff, coefftemp;
338  //Matrix2D<double> coeff(pt);
339  double m = 2.0;
340
341  alpha = sqrt(3.0*tgamma(3.0/m)/2.0/tgamma(5.0/m));
342  // coeff = m/4.0/M_PI/alpha/alpha/alpha/tgamma(3.0/m);
343  coeff = 1.0;
344
345  for (int j(0); j < h.numx(); ++j){
346  // std::cout << "temp = " << temperature[j] << "\n";
347  // coefftemp = coeff*density(s,j)/pow(temperature(s,j),1.5);
348  coefftemp = coeff*density[j]/pow(2.0*M_PI*temperature[j]/mass,1.5);
349  for (int k(0); k < h.nump(); ++k){
350  // New formulation for temperature distribution and super-Gaussians
351
352
353  // h(k,j)= coefftemp*exp(-pow(p[k]/alpha/sqrt(temperature(s,j)),m));
354  h(k,j)= 2.0*coefftemp*exp(-pow((p[k]-3.0)/alpha/sqrt(2.0*temperature[j]/mass),m));
355  // if (j==3) std :: cout << "p = " << p[k] << ", h = " << h(k,j) << "\n";
356  // h(i,j,k) *= coeff(j,k);
357  // std::cout << h(k,j) << "\n";
358  }
359
360
361  // Old formulation for momentum distribution
362  // alpha(j,k) = 1.0/(2.0*pt(j,k)*pt(j,k));
363  // coeff(j,k) = 1.0/(sqrt(2.0*M_PI)*2.0*M_PI*pt(j,k)*pt(j,k)*pt(j,k));
364  // std::cout << "pt=" << pt(j,k) << "\n";
365  }
366
367 }
SHarmonic1D::numx
size_t numx() const
Definition: state.h:72
SHarmonic1D::nump
size_t nump() const
Definition: state.h:71
Here is the call graph for this function:

◆ initialize()

void Setup_Y::initialize ( State1D &  Y,
Grid_Info &  grid
)

Definition at line 177 of file setup.cpp.

References Grid_Info::axis, Input::Input_List::dens_profile_str, Hydro1D::density(), Hydro1D::densityarray(), State1D::DF(), State1D::EMF(), Input::Input_List::f10x_profile_str, Input::Input_List::f_pedestal, State1D::HYDRO(), Input::Input_List::hydro_dens_profile_str, Input::Input_List::hydro_temp_profile_str, Input::Input_List::hydro_vel_profile_str, Input::Input_List::hydro_Z_profile_str, init_f0(), init_f1(), Input::Input_List::init_f1, Input::List(), DistFunc1D::mass(), Algorithms::AxisBundle< T >::Nx(), Algorithms::AxisBundle< T >::p(), parseprofile(), Input::Input_List::qs, State1D::SH(), Input::Input_List::temp_profile_str, Hydro1D::temperature(), Hydro1D::temperaturearray(), Hydro1D::vx(), Hydro1D::vxarray(), Hydro1D::vyarray(), Hydro1D::vzarray(), Algorithms::AxisBundle< T >::x(), Hydro1D::Z(), and Hydro1D::Zarray().

Referenced by main().

177  {
178 //--------------------------------------------------------------
179 // Initialization of the harmonics and the fields
180 //--------------------------------------------------------------
181
182  Y = 0.0;
183
184  valarray<double> dens_profile( grid.axis.Nx(0));
185  valarray<double> temp_profile( grid.axis.Nx(0));
186  valarray<double> f10x_profile( grid.axis.Nx(0));
187  valarray<double> f20x_profile( grid.axis.Nx(0));
188  valarray<double> pedestal_profile( grid.axis.Nx(0));
189
190  valarray<double> hydro_dens_profile( grid.axis.Nx(0));
191  valarray<double> hydro_temp_profile( grid.axis.Nx(0));
192  valarray<double> hydro_vel_profile( grid.axis.Nx(0));
193  valarray<double> hydro_Z_profile( grid.axis.Nx(0));
194
195
196
197  for (size_t s(0); s < Input::List().qs.size(); ++s) {
198
199  Y.SH(s,0,0) = 0.0;
200
201  temp_profile = 0.0;
202
203  parseprofile(grid.axis.x(0), Input::List().dens_profile_str[s], dens_profile);
204  parseprofile(grid.axis.x(0), Input::List().temp_profile_str[s], temp_profile);
205
206  parseprofile(grid.axis.x(0), Input::List().f10x_profile_str[s], f10x_profile);
207  // parseprofile(grid.axis.x(0), Input::List().f20x_profile_str[s], f20x_profile);
208  parseprofile(grid.axis.x(0), Input::List().f_pedestal[s], pedestal_profile);
209
210  init_f0(s, Y.SH(s,0,0), grid.axis.p(s), grid.axis.x(0), dens_profile, temp_profile, Y.DF(s).mass(), pedestal_profile);
211
212  if (Input::List().init_f1) init_f1(s, Y.SH(s,1,0), grid.axis.p(s), grid.axis.x(0), dens_profile, temp_profile, f10x_profile, Y.SH(s,0,0), Y.DF(s).mass());
213
214  // if (Input::List().init_f2) init_f2(s, Y.SH(s,2,0), grid.axis.p(s), grid.axis.x(0), dens_profile, temp_profile, f20x_profile, Y.DF(s).mass());
215
216  }
217
218 // - - - - - - - - - - - - - - - - - - - - - - - - - - - -
219 // - - - - - - - - - - - - - - - - - - - - - - - - - - - -
220 // Setup the electromagnetic fields
221 // - - - - - - - - - - - - - - - - - - - - - - - - - - - -
222 // - - - - - - - - - - - - - - - - - - - - - - - - - - - -
223
224  Y.EMF() = static_cast<complex<double> >(0.0);
225
226  parseprofile(grid.axis.x(0), Input::List().hydro_dens_profile_str, hydro_dens_profile);
227  parseprofile(grid.axis.x(0), Input::List().hydro_temp_profile_str, hydro_temp_profile);
228  parseprofile(grid.axis.x(0), Input::List().hydro_vel_profile_str, hydro_vel_profile);
229  parseprofile(grid.axis.x(0), Input::List().hydro_Z_profile_str, hydro_Z_profile);
230
231
232  Y.HYDRO().vxarray() = 0.0;
233  Y.HYDRO().vyarray() = 0.0;
234  Y.HYDRO().vzarray() = 0.0;
235  Y.HYDRO().densityarray() = 1.0;
236  Y.HYDRO().temperaturearray() = 1.0;
237  Y.HYDRO().Zarray() = 1.0;
238
239
240  for (size_t i(0); i < temp_profile.size(); ++i)
241  {
242
243  Y.HYDRO().density(i) = hydro_dens_profile[i];
244  Y.HYDRO().temperature(i) = hydro_temp_profile[i];
245  Y.HYDRO().vx(i) = hydro_vel_profile[i];
246  Y.HYDRO().Z(i) = hydro_Z_profile[i];
247 // Y.HYDRO().vy(i) = hydro_vel_profile[i];
248 // Y.HYDRO().vz(i) = hydro_vel_profile[i];
249  // std::cout << "velocity(" << grid.axis.x(0)[i] << ")=" << Y.HYDRO().velocity(i) << "\n";
250  }
251
252 }
Hydro1D::temperaturearray
valarray< double > & temperaturearray() const
Definition: state.h:549
Setup_Y::init_f0
void init_f0(size_t s, SHarmonic1D &h, const valarray< double > &p, const valarray< double > &x, valarray< double > &density, valarray< double > &temperature, const double mass, const valarray< double > &pedestal)
Definition: setup.cpp:258
Input::Input_List::hydro_dens_profile_str
std::string hydro_dens_profile_str
Definition: input.h:108
Input::Input_List::qs
std::vector< double > qs
Definition: input.h:154
DistFunc1D::mass
double mass() const
Definition: state.h:400
Input::Input_List::temp_profile_str
std::vector< std::string > temp_profile_str
Definition: input.h:103
Input::Input_List::hydro_temp_profile_str
std::string hydro_temp_profile_str
Definition: input.h:109
Input::Input_List::f_pedestal
std::vector< std::string > f_pedestal
Definition: input.h:106
Setup_Y::init_f1
void init_f1(size_t s, SHarmonic1D &h, const valarray< double > &p, const valarray< double > &x, valarray< double > &density, valarray< double > &temperature, valarray< double > &f10x, const SHarmonic1D &f0, const double mass)
Definition: setup.cpp:300
Hydro1D::vyarray
valarray< double > & vyarray() const
Definition: state.h:547
Input::Input_List::hydro_vel_profile_str
std::string hydro_vel_profile_str
Definition: input.h:110
Hydro1D::Zarray
valarray< double > & Zarray() const
Definition: state.h:550
State1D::HYDRO
Hydro1D & HYDRO()
Definition: state.h:613
Hydro1D::temperature
double & temperature(size_t i)
Definition: state.h:539
Hydro1D::Z
double & Z(size_t i)
Definition: state.h:542
State1D::DF
DistFunc1D & DF(size_t s)
Definition: state.h:602
State1D::SH
SHarmonic1D & SH(size_t s, size_t lh, size_t mh)
Definition: state.h:605
Input::Input_List::f10x_profile_str
std::vector< std::string > f10x_profile_str
Definition: input.h:104
Hydro1D::densityarray
valarray< double > & densityarray() const
Definition: state.h:545
Hydro1D::vzarray
valarray< double > & vzarray() const
Definition: state.h:548
Hydro1D::vx
double & vx(size_t i)
Definition: state.h:530
Algorithms::AxisBundle::p
valarray< T > p(size_t i) const
Definition: lib-algorithms.h:112
Grid_Info::axis
const Algorithms::AxisBundle< double > axis
Definition: setup.h:47
Input::Input_List::hydro_Z_profile_str
std::string hydro_Z_profile_str
Definition: input.h:111
Input::List
Input_List & List()
Definition: input.cpp:1585
Input::Input_List::init_f1
bool init_f1
Definition: input.h:87
Hydro1D::density
double & density(size_t i)
Definition: state.h:527
Input::Input_List::dens_profile_str
std::vector< std::string > dens_profile_str
Initialization.
Definition: input.h:102
Algorithms::AxisBundle::Nx
size_t Nx(size_t i) const
Definition: lib-algorithms.h:98
Hydro1D::vxarray
valarray< double > & vxarray() const
Definition: state.h:546
Setup_Y::parseprofile
void parseprofile(const valarray< double > &grid, std::string &str_profile, valarray< double > &profile)
{ function_description }
Definition: setup.cpp:410
Algorithms::AxisBundle::x
valarray< T > x(size_t i) const
Definition: lib-algorithms.h:97
State1D::EMF
EMF1D & EMF() const
Definition: state.h:610

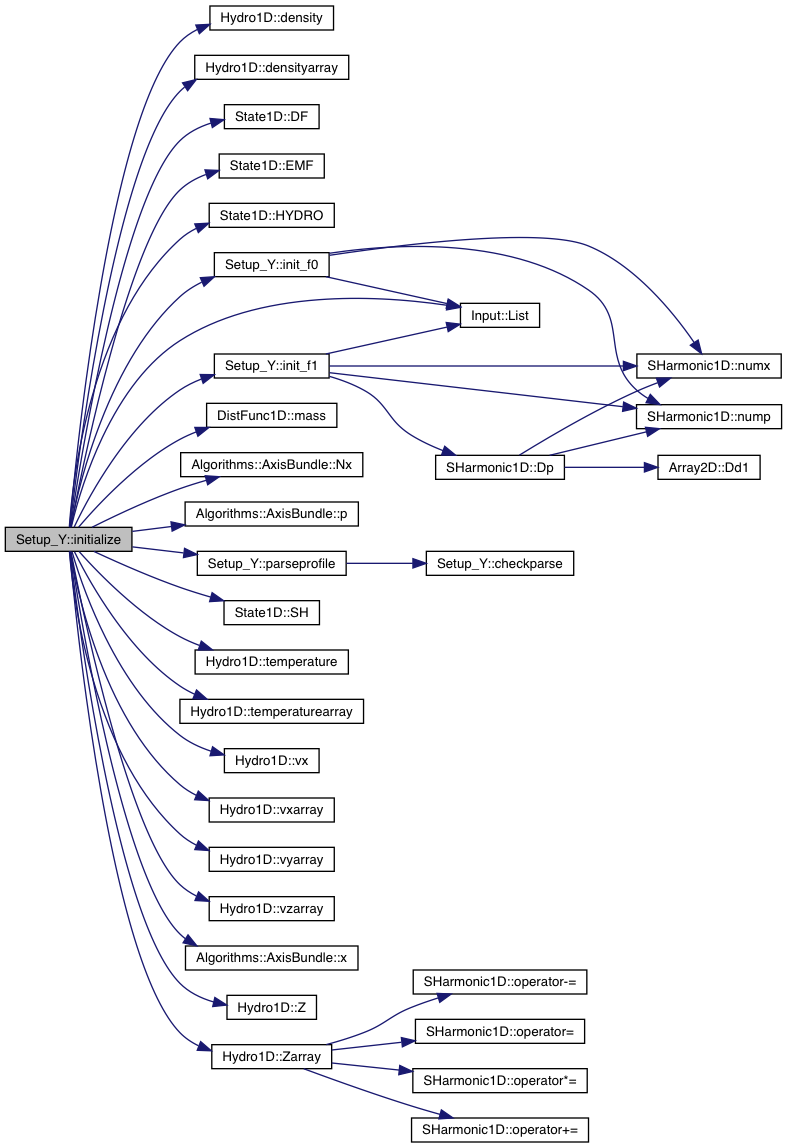

Here is the call graph for this function:

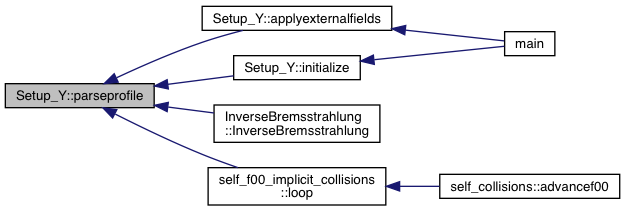

Here is the caller graph for this function:

◆ parseprofile() [1/2]

void Setup_Y::parseprofile ( const valarray< double > &  grid,
std::string &  str_profile,
valarray< double > &  profile
)

{ function_description }

Parameters
str_profileThe string profile
profileThe profile

Find curly brackets

Uniform profile, convert string to double and set.

Profile defined by function

Grab everything inside curly brackets

Definition at line 410 of file setup.cpp.

References checkparse().

Referenced by applyexternalfields(), initialize(), InverseBremsstrahlung::InverseBremsstrahlung(), and self_f00_implicit_collisions::loop().

410  {
411
413  std::size_t posL = str_profile.find("{");
414  std::size_t posR = str_profile.find("}");
415
417  if (str_profile[0] == 'c')
418  {
419  // std::cout<< "expression_str is " << str_profile.substr(posL+1,posR-(posL+1)) << "\n";
420  profile = std::stod(str_profile.substr(posL+1,posR-(posL+1)));
421  }
422
424  if (str_profile[0] == 'f')
425  {
427  std::string expression_str = str_profile.substr(posL+1,posR-(posL+1));
428
429  symbol_table_t symbol_table;
430  symbol_table.add_constants();
431  double xstr;
432  symbol_table.add_variable("x",xstr);
433
434  expression_t expression;
435
436  expression.register_symbol_table(symbol_table);
437
438  parser_t parser;
439
440  checkparse(parser, expression_str, expression);
441
442  for (size_t i(0); i < profile.size(); ++i) {
443  xstr = grid[i];
444  // std::cout<< "i= " << i << ",xstr = " << xstr << "\n";
445
446  // result =
447  // Temperature_map(s,i) = expression_Temperature.value();
448  profile[i] = expression.value();
449  // std::cout << i << " , " << grid[i] << " , " << profile[i] << "\n";
450  // printf("Result: %10.5f\n",expression.value());
451  }
452  }
453
454  if (str_profile[0] == 'p'){
455  std::string pcw_pairs = str_profile.substr(posL+1,posR-(posL+1));
456  vector<size_t> positions_comma, positions_semicolon; // holds all the positions that sub occurs within str
457  vector<double> loc,val;
458  size_t pos = pcw_pairs.find(',', 0);
459  while(pos != string::npos)
460  {
461  positions_comma.push_back(pos);
462  pos = pcw_pairs.find(',',pos+1);
463  }
464
465  pos = pcw_pairs.find(';', 0);
466  while(pos != string::npos)
467  {
468  positions_semicolon.push_back(pos);
469  pos = pcw_pairs.find(';',pos+1);
470  }
471
472  if (positions_comma.size() != positions_semicolon.size()){
473  std::cout << "Error in piecewise input, the values must be supplied in pairs with ',' in between the two values in each pair, and ending each pair with a ';'. E.g. {0.1,1.0;0.2,1.5;} \n";
474
475  exit(1);
476  }
477
478
479  loc.push_back(std::stod(pcw_pairs.substr(0,positions_comma[0]-1)));
480  val.push_back(std::stod(pcw_pairs.substr(positions_comma[0]+1,positions_semicolon[0]-positions_comma[0]-1)));
481
482  // std::cout << "loc0 = " << loc[0] << endl;
483  // std::cout << "val0 = " << val[0] << endl;
484
485  for (size_t i(1); i < positions_comma.size(); ++i) {
486
487  loc.push_back(std::stod(pcw_pairs.substr(positions_semicolon[i-1]+1,positions_comma[i]-positions_semicolon[i-1]-1)));
488  val.push_back(std::stod(pcw_pairs.substr(positions_comma[i]+1,positions_semicolon[i]-positions_comma[i]-1)));
489
490  // std::cout << "loci = " << loc[i] << endl;
491  // std::cout << "vali = " << val[i] << endl;
492
493  }
494
495
496  double tmp_x, xx;
497  size_t t(0);
498  for (size_t i(0); i < grid.size(); ++i) {
499  t = 1;
500  xx = grid[i];
501  if (grid[i] < loc[0]) xx += loc[loc.size()-1] - loc[0];
502  if (grid[i] > loc[loc.size()-1]) xx += loc[0]-loc[loc.size()-1] ;
503
504  while ((xx > loc[t]) && (t < loc.size()-1)) ++t;
505  tmp_x = val[t-1] + (val[t]-val[t-1])/(loc[t]-loc[t-1])
506  * (xx - loc[t-1]);
507  // std::cout << i << " " << x[i] << " " << tmp_x << std::endl;
508  // for (size_t j(0); j < Temp.dim2(); ++j) Temp(i,j) *= tmp_x;
509  profile[i] = tmp_x;
510  }
511  }
512 }
Setup_Y::parser_t
exprtk::parser< double > parser_t
Definition: setup.h:57
Setup_Y::expression_t
exprtk::expression< double > expression_t
Definition: setup.h:56
Setup_Y::symbol_table_t
exprtk::symbol_table< double > symbol_table_t
Definition: setup.h:55
Setup_Y::checkparse
void checkparse(parser_t &parser, std::string &expression_str, expression_t &expression)
Definition: setup.cpp:375
Here is the call graph for this function:

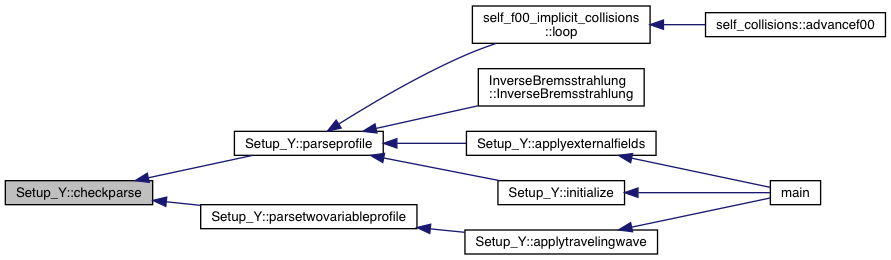

Here is the caller graph for this function:

◆ parseprofile() [2/2]

void Setup_Y::parseprofile ( const double &  input,
std::string &  str_profile,
double &  output
)

{ function_description }

Parameters
str_profileThe string profile
profileThe profile

Find curly brackets

Uniform profile, convert string to double and set.

Profile defined by function

Grab everything inside curly brackets

Definition at line 521 of file setup.cpp.

References checkparse().

521  {
522
524  std::size_t posL = str_profile.find("{");
525  std::size_t posR = str_profile.find("}");
526
528  if (str_profile[0] == 'c')
529  {
530  // std::cout<< "expression_str is " << str_profile.substr(posL+1,posR-(posL+1)) << "\n";
531  output = std::stod(str_profile.substr(posL+1,posR-(posL+1)));
532  }
533
535  if (str_profile[0] == 'f')
536  {
538  std::string expression_str = str_profile.substr(posL+1,posR-(posL+1));
539
540  symbol_table_t symbol_table;
541  symbol_table.add_constants();
542  double xstr;
543  symbol_table.add_variable("t",xstr);
544
545  expression_t expression;
546
547  expression.register_symbol_table(symbol_table);
548
549  parser_t parser;
550
551  checkparse(parser, expression_str, expression);
552
553  // for (size_t i(0); i < profile.size(); ++i) {
554  xstr = input;
555  // std::cout<< "i= " << i << ",xstr = " << xstr << "\n";
556
557  // result =
558  // Temperature_map(s,i) = expression_Temperature.value();
559  output = expression.value();
560  // std::cout << " \n 10: " << input << " , " << output << "\n";
561  // exit(1);
562  // printf("Result: %10.5f\n",expression.value());
563
564  }
565
566  // if (str_profile[0] == 'p'){
567  // std::string pcw_pairs = str_profile.substr(posL+1,posR-(posL+1));
568  // vector<size_t> positions_comma, positions_semicolon; // holds all the positions that sub occurs within str
569  // vector<double> loc,val;
570  // size_t pos = pcw_pairs.find(',', 0);
571  // while(pos != string::npos)
572  // {
573  // positions_comma.push_back(pos);
574  // pos = pcw_pairs.find(',',pos+1);
575  // }
576
577  // pos = pcw_pairs.find(';', 0);
578  // while(pos != string::npos)
579  // {
580  // positions_semicolon.push_back(pos);
581  // pos = pcw_pairs.find(';',pos+1);
582  // }
583
584  // if (positions_comma.size() != positions_semicolon.size()){
585  // std::cout << "Error in piecewise input, the values must be supplied in pairs with ',' in between the two values in each pair, and ending each pair with a ';'. E.g. {0.1,1.0;0.2,1.5;} \n";
586
587  // exit(1);
588  // }
589
590
591  // loc.push_back(std::stod(pcw_pairs.substr(0,positions_comma[0]-1)));
592  // val.push_back(std::stod(pcw_pairs.substr(positions_comma[0]+1,positions_semicolon[0]-positions_comma[0]-1)));
593
594  // // std::cout << "loc0 = " << loc[0] << endl;
595  // // std::cout << "val0 = " << val[0] << endl;
596
597  // for (size_t i(1); i < positions_comma.size(); ++i) {
598
599  // loc.push_back(std::stod(pcw_pairs.substr(positions_semicolon[i-1]+1,positions_comma[i]-positions_semicolon[i-1]-1)));
600  // val.push_back(std::stod(pcw_pairs.substr(positions_comma[i]+1,positions_semicolon[i]-positions_comma[i]-1)));
601
602  // // std::cout << "loci = " << loc[i] << endl;
603  // // std::cout << "vali = " << val[i] << endl;
604
605  // }
606
607
608  // double tmp_x, xx;
609  // size_t t(0);
610  // for (size_t i(0); i < grid.size(); ++i) {
611  // t = 1;
612  // xx = grid[i];
613  // if (grid[i] < loc[0]) xx += loc[loc.size()-1] - loc[0];
614  // if (grid[i] > loc[loc.size()-1]) xx += loc[0]-loc[loc.size()-1] ;
615
616  // while ((xx > loc[t]) && (t < loc.size()-1)) ++t;
617  // tmp_x = val[t-1] + (val[t]-val[t-1])/(loc[t]-loc[t-1])
618  // * (xx - loc[t-1]);
619  // // std::cout << i << " " << x[i] << " " << tmp_x << std::endl;
620  // // for (size_t j(0); j < Temp.dim2(); ++j) Temp(i,j) *= tmp_x;
621  // profile[i] = tmp_x;
622  // }
623  // }
624 }
Setup_Y::parser_t
exprtk::parser< double > parser_t
Definition: setup.h:57
Setup_Y::expression_t
exprtk::expression< double > expression_t
Definition: setup.h:56
Setup_Y::symbol_table_t
exprtk::symbol_table< double > symbol_table_t
Definition: setup.h:55
Setup_Y::checkparse
void checkparse(parser_t &parser, std::string &expression_str, expression_t &expression)
Definition: setup.cpp:375
Here is the call graph for this function:

◆ parsetwovariableprofile()

void Setup_Y::parsetwovariableprofile ( const valarray< double > &  grid,
const double &  input,
std::string &  str_profile,
valarray< double > &  output
)

{ function_description }

Parameters
str_profileThe string profile
profileThe profile

Find curly brackets

Uniform profile, convert string to double and set.

Profile defined by function

Grab everything inside curly brackets

Definition at line 633 of file setup.cpp.

References checkparse().

Referenced by applytravelingwave().

633  {
634
636  std::size_t posL = str_profile.find("{");
637  std::size_t posR = str_profile.find("}");
638
640  if (str_profile[0] == 'c')
641  {
642  // std::cout<< "expression_str is " << str_profile.substr(posL+1,posR-(posL+1)) << "\n";
643  output = std::stod(str_profile.substr(posL+1,posR-(posL+1)));
644  }
645
647  if (str_profile[0] == 'f')
648  {
650  std::string expression_str = str_profile.substr(posL+1,posR-(posL+1));
651
652  symbol_table_t symbol_table;
653  symbol_table.add_constants();
654  double xstr, tstr;
655  symbol_table.add_variable("x",xstr);
656  symbol_table.add_variable("t",tstr);
657
658  expression_t expression;
659
660  expression.register_symbol_table(symbol_table);
661
662  parser_t parser;
663
664  checkparse(parser, expression_str, expression);
665  tstr = input;
666
667  for (size_t i(0); i < output.size(); ++i) {
668  xstr = grid[i];
669
670  output[i] = expression.value();
671  }
672
673
674
675  }
676
677 }
Setup_Y::parser_t
exprtk::parser< double > parser_t
Definition: setup.h:57
Setup_Y::expression_t
exprtk::expression< double > expression_t
Definition: setup.h:56
Setup_Y::symbol_table_t
exprtk::symbol_table< double > symbol_table_t
Definition: setup.h:55
Setup_Y::checkparse
void checkparse(parser_t &parser, std::string &expression_str, expression_t &expression)
Definition: setup.cpp:375
Here is the call graph for this function:
Here is the caller graph for this function:
