VlasovFunctor1D_implicitE_p2 Class Reference

#include <functors.h>

Inheritance diagram for VlasovFunctor1D_implicitE_p2:

Collaboration diagram for VlasovFunctor1D_implicitE_p2:

Public Member Functions
	VlasovFunctor1D_implicitE_p2 (vector< size_t > Nl, vector< size_t > Nm, vector< double > pmax, vector< size_t > Np, double xmin, double xmax, size_t Nx)
	~VlasovFunctor1D_implicitE_p2 ()
void	operator() (const State1D &Yin, State1D &Yslope)
void	operator() (const State1D &Yin, const State1D &Y2in, State1D &Yslope)
void	operator() (const State1D &Yin, State1D &Yslope, size_t dir)

Private Attributes
vector< Electric_Field_1D >	EF
vector< Faraday_1D >	FA

Detailed Description

Definition at line 180 of file functors.h.

Constructor & Destructor Documentation

VlasovFunctor1D_implicitE_p2()

VlasovFunctor1D_implicitE_p2::VlasovFunctor1D_implicitE_p2	(	vector< size_t >	Nl,
		vector< size_t >	Nm,
		vector< double >	pmax,
		vector< size_t >	Np,
		double	xmin,
		double	xmax,
		size_t	Nx
	)

Definition at line 430 of file functors.cpp.

References VlasovFunctor1D_explicitE::EF, and VlasovFunctor1D_explicitE::FA.

                                                                                                {
// //--------------------------------------------------------------

    for (size_t s(0); s < Nl.size(); ++s){

        FA.push_back( Faraday_1D(xmin, xmax, Nx) );
        EF.push_back( Electric_Field_1D(Nl[s], Nm[s], 0.0, pmax[s], Np[s], xmin, xmax, Nx) );

    }

}

~VlasovFunctor1D_implicitE_p2()

VlasovFunctor1D_implicitE_p2::~VlasovFunctor1D_implicitE_p2 ( )

inline

Definition at line 187 of file functors.h.

References VlasovFunctor1D_explicitE::operator()().

{ };

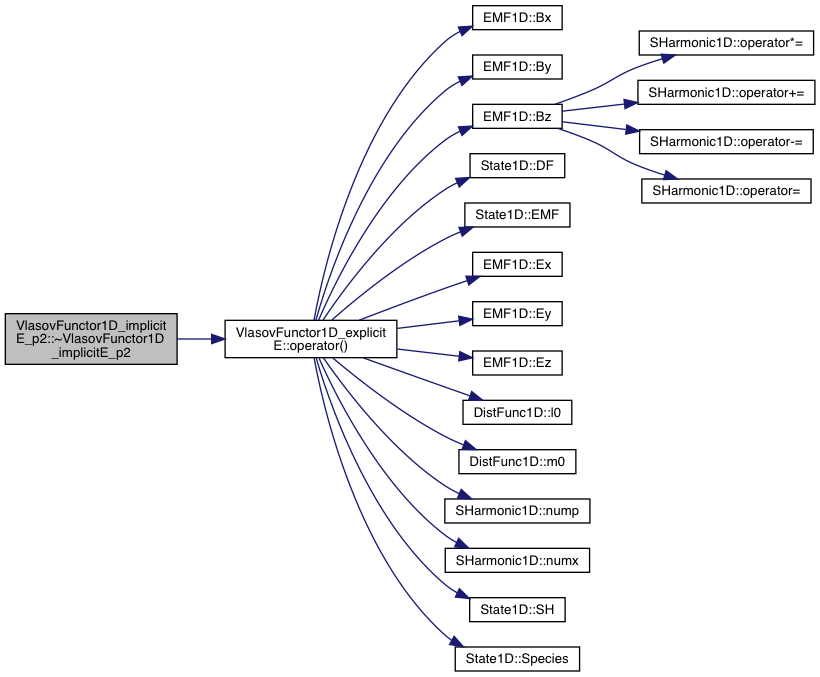

Here is the call graph for this function:

Member Function Documentation

operator()() [1/3]

void VlasovFunctor1D_implicitE_p2::operator() ( const State1D &  Yin, State1D &  Yslope  )

virtual

Implements Algorithms::AbstFunctor< State1D >.

Definition at line 443 of file functors.cpp.

References State1D::DF(), VlasovFunctor1D_explicitE::EF, State1D::EMF(), EMF1D::Ex(), EMF1D::Ey(), EMF1D::Ez(), VlasovFunctor1D_explicitE::FA, DistFunc1D::Filterp(), DistFunc1D::l0(), and State1D::Species().

                                                                                {
// //---------------------------------------------------------------------------------------------------

    Yslope = 0.0;

    for (size_t s(0); s < Yin.Species(); ++s) {
        FA[s](Yin.EMF(),Yslope.EMF());

        if (Yin.DF(s).l0() == 1) EF[s].f1only(Yin.DF(s),Yin.EMF().Ex(),Yin.EMF().Ey(),Yin.EMF().Ez(),Yslope.DF(s));
        else                     EF[s](Yin.DF(s),Yin.EMF().Ex(),Yin.EMF().Ey(),Yin.EMF().Ez(),Yslope.DF(s));

        Yslope.DF(s) = Yslope.DF(s).Filterp();

    }

}

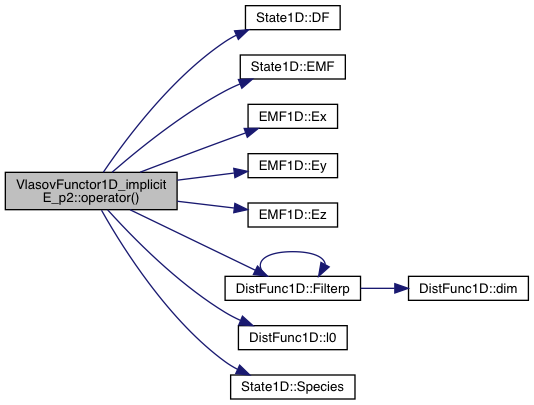

Here is the call graph for this function:

operator()() [2/3]

void VlasovFunctor1D_implicitE_p2::operator()	(	const State1D &	Yin,
		const State1D &	Y2in,
		State1D &	Yslope
	)

operator()() [3/3]

void VlasovFunctor1D_implicitE_p2::operator() ( const State1D &  Yin, State1D &  Yslope, size_t  dir  )

virtual

Implements Algorithms::AbstFunctor< State1D >.

Definition at line 461 of file functors.cpp.

References State1D::DF(), VlasovFunctor1D_explicitE::EF, State1D::EMF(), EMF1D::Ex(), EMF1D::Ey(), EMF1D::Ez(), DistFunc1D::Filterp(), DistFunc1D::l0(), and State1D::Species().

                                                                                                  {
//--------------------------------------------------------------------------------------------------

    Yslope = 0.0;

    if (direction == 1)
    {
        for (size_t s(0); s < Yin.Species(); ++s) {
            if (Yin.DF(s).l0() == 1) EF[s].Implicit_Ex_f1only(Yin.DF(s),Yin.EMF().Ex(),Yslope.DF(s));
            else                     EF[s].Implicit_Ex(Yin.DF(s),Yin.EMF().Ex(),Yslope.DF(s));
            Yslope.DF(s) = Yslope.DF(s).Filterp();
        }
    }
    else if (direction == 2)
    {
        for (size_t s(0); s < Yin.Species(); ++s) {
            if (Yin.DF(s).l0() == 1) EF[s].Implicit_Ey_f1only(Yin.DF(s),Yin.EMF().Ey(),Yslope.DF(s));
            else                     EF[s].Implicit_Ey(Yin.DF(s),Yin.EMF().Ey(),Yslope.DF(s));
            Yslope.DF(s) = Yslope.DF(s).Filterp();
        }
    }
    else
    {
        // complex<double> ii(0.0,1.0);
        for (size_t s(0); s < Yin.Species(); ++s) {
            if (Yin.DF(s).l0() == 1) EF[s].Implicit_Ez_f1only(Yin.DF(s),Yin.EMF().Ez(),Yslope.DF(s));
            else                     EF[s].Implicit_Ez(Yin.DF(s),Yin.EMF().Ez(),Yslope.DF(s));
            Yslope.DF(s) = Yslope.DF(s).Filterp();
        }
    }

}

Here is the call graph for this function:

Field Documentation

EF

vector<Electric_Field_1D> VlasovFunctor1D_implicitE_p2::EF

private

Definition at line 197 of file functors.h.

FA

vector<Faraday_1D> VlasovFunctor1D_implicitE_p2::FA

private

Definition at line 201 of file functors.h.

---

The documentation for this class was generated from the following files:

• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/functors.h
• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/functors.cpp
