VlasovFunctor1D_implicitE_p1 Class Reference

#include <functors.h>

Inheritance diagram for VlasovFunctor1D_implicitE_p1:

Collaboration diagram for VlasovFunctor1D_implicitE_p1:

Public Member Functions
	VlasovFunctor1D_implicitE_p1 (vector< size_t > Nl, vector< size_t > Nm, vector< double > pmax, vector< size_t > Np, double xmin, double xmax, size_t Nx)
	~VlasovFunctor1D_implicitE_p1 ()
void	operator() (const State1D &Yin, State1D &Yslope)
void	operator() (const State1D &Yin, const State1D &Y2in, State1D &Yslope)
void	operator() (const State1D &Yin, State1D &Yslope, size_t dir)

Private Attributes
vector< Spatial_Advection_1D >	SA
vector< Magnetic_Field_1D >	BF
vector< Hydro_Advection_1D >	HA

Detailed Description

Definition at line 128 of file functors.h.

Constructor & Destructor Documentation

VlasovFunctor1D_implicitE_p1()

VlasovFunctor1D_implicitE_p1::VlasovFunctor1D_implicitE_p1	(	vector< size_t >	Nl,
		vector< size_t >	Nm,
		vector< double >	pmax,
		vector< size_t >	Np,
		double	xmin,
		double	xmax,
		size_t	Nx
	)

Definition at line 345 of file functors.cpp.

References VlasovFunctor1D_explicitE::BF, and VlasovFunctor1D_explicitE::SA.

                                                                                                {
// //--------------------------------------------------------------

    for (size_t s(0); s < Nl.size(); ++s){

        SA.push_back( Spatial_Advection_1D(Nl[s], Nm[s], 0.0, pmax[s], Np[s], xmin, xmax, Nx) );

        HA.push_back( Hydro_Advection_1D(Nl[s], Nm[s], 0.0, pmax[s], Np[s], xmin, xmax, Nx) );

        BF.push_back( Magnetic_Field_1D(Nl[s], Nm[s], 0.0, pmax[s], Np[s], xmin, xmax, Nx) );

    }

}

~VlasovFunctor1D_implicitE_p1()

VlasovFunctor1D_implicitE_p1::~VlasovFunctor1D_implicitE_p1 ( )

inline

Definition at line 135 of file functors.h.

References VlasovFunctor1D_explicitE::operator()().

{ };

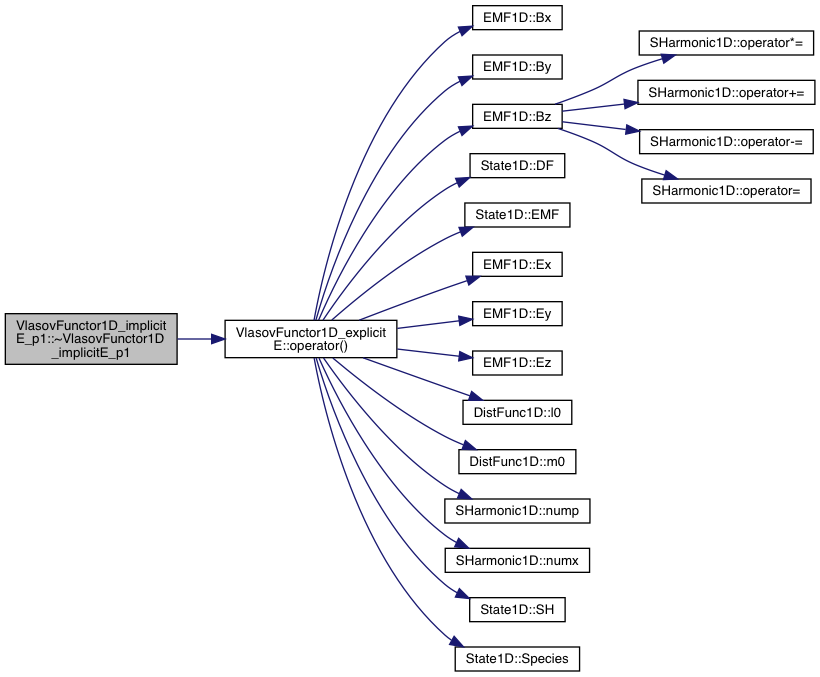

Here is the call graph for this function:

Member Function Documentation

operator()() [1/3]

void VlasovFunctor1D_implicitE_p1::operator() ( const State1D &  Yin, State1D &  Yslope  )

virtual

Implements Algorithms::AbstFunctor< State1D >.

Definition at line 364 of file functors.cpp.

References VlasovFunctor1D_explicitE::BF, EMF1D::Bx(), EMF1D::By(), EMF1D::Bz(), State1D::DF(), State1D::EMF(), DistFunc1D::Filterp(), DistFunc1D::l0(), VlasovFunctor1D_explicitE::SA, and State1D::Species().

                                                                                {
//--------------------------------------------------------------

    Yslope = 0.0;

    for (size_t s(0); s < Yin.Species(); ++s) {


        if (Yin.DF(s).l0() == 1) {
            SA[s].f1only(Yin.DF(s),Yslope.DF(s));
            BF[s].f1only(Yin.DF(s),Yin.EMF().Bx(),Yin.EMF().By(),Yin.EMF().Bz(),Yslope.DF(s));
            // HA[s](Yin.DF(s),Yin.HYDRO(),Yslope.DF(s));
        }
        else {
            SA[s](Yin.DF(s),Yslope.DF(s));
            BF[s](Yin.DF(s),Yin.EMF().Bx(),Yin.EMF().By(),Yin.EMF().Bz(),Yslope.DF(s));
            // HA[s](Yin.DF(s),Yin.HYDRO(),Yslope.DF(s));
        }

        Yslope.DF(s) = Yslope.DF(s).Filterp();


    }

}

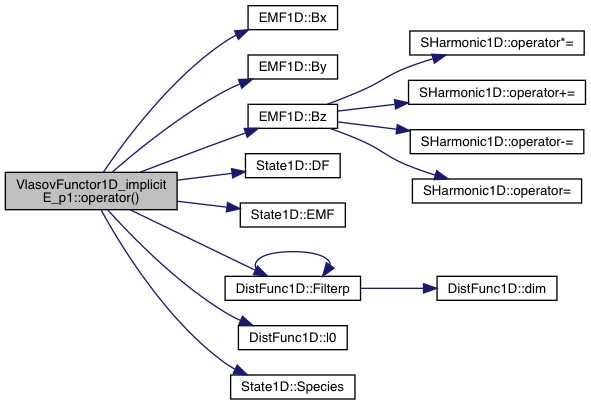

Here is the call graph for this function:

operator()() [2/3]

void VlasovFunctor1D_implicitE_p1::operator()	(	const State1D &	Yin,
		const State1D &	Y2in,
		State1D &	Yslope
	)

operator()() [3/3]

void VlasovFunctor1D_implicitE_p1::operator() ( const State1D &  Yin, State1D &  Yslope, size_t  dir  )

virtual

Implements Algorithms::AbstFunctor< State1D >.

Definition at line 389 of file functors.cpp.

{}

Field Documentation

BF

vector<Magnetic_Field_1D> VlasovFunctor1D_implicitE_p1::BF

private

Definition at line 147 of file functors.h.

HA

vector<Hydro_Advection_1D> VlasovFunctor1D_implicitE_p1::HA

private

Definition at line 149 of file functors.h.

SA

vector<Spatial_Advection_1D> VlasovFunctor1D_implicitE_p1::SA

private

Definition at line 143 of file functors.h.

---

The documentation for this class was generated from the following files:

• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/functors.h
• /Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/functors.cpp
