#include <formulary.h>

Public Member Functions
	Formulary ()

units	Units (string key)

units	Units (string key1, string key2)

string	Label (string key)

string	Label (string key1, string key2)

double	Uconv (string key)

double	Uconv (string key1, string key2)

double	LOGee (double ne, double Te)

double	LOGee (double ne, string un, double Te, string uT)

double	LOGei (double ne, double Te, double Z)

double	LOGei (double ne, string un, double Te, string uT, double Z)

double	LOGii (double m1, double Z1, double n1, double T1, double m2, double Z2, double n2, double T2)

double	vth (double Te)

double	vth (double Te, string uT)

double	Tau_e (double ne, double Te)

double	Tau_e (double ne, string un, double Te, string uT)

double	Tau_i (double ne, double Te, double Zeta)

double	MFP (double ne, double Te)

double	MFP (double ne, string un, double Te, string uT)

Data Fields
double	n

double	wp

double	skindepth

double	B0

double	T0

double	Zeta

Static Public Attributes
static constexpr double	pi =3.141592653589793238

static constexpr double	cL = 299792458

static constexpr double	eps0 =8.854187817e-12

static constexpr double	qe = -1.60217662e-19

static constexpr double	me = 9.10938356e-31

static constexpr double	me_over_mp = 0.000544617024

static constexpr double	keVnorm = 510.9989461

static constexpr double	c = 2.99792458*1.0e+10

static constexpr double	e = 4.80320425*1.0e-10

static constexpr double	m = 9.10938215*1.0e-28

Private Attributes
map< string, units >	D

Static Private Attributes
static constexpr double	nmin = 1.0e-8

Detailed Description

Definition at line 68 of file formulary.h.

Constructor & Destructor Documentation

◆ Formulary()

Formulary::Formulary ( )

Definition at line 43 of file formulary.cpp.

References c, D, e, m, n, and wp.

                      : n(Input::List().density_np),
                         wp(5.64*1.0e+4*sqrt(n)),
                         skindepth(cL/wp),
                         B0(-1.0*wp*me/qe),
                         T0(pow(Input::List().pth_ref,2.0)*keVnorm*1e3),
                         Zeta(Input::List().hydrocharge)
                         // ref_nuei(sqrt(2.0/pi)*LOGei(1.0,Input::List().pth_ref,Zeta)/exp(LOGei(1.0,Input::List().pth_ref,Zeta)) * wp)
                         {
     // Physically: label * d = const in any system

     // velocity - c
     D["Velocity"]     = units("c",1.0);
     D["Velocity_cgs"] = units("cm/sec", c );
     D["Velocity_si"]  = units("m/sec",  c * 0.01 );

     D["v"]     = units("c",1.0);
     D["v_cgs"] = units("cm/sec", c );
     D["v_si"]  = units("m/sec",  c * 0.01 );

     D["vx"]     = units("c",1.0);
     D["vx_cgs"] = units("cm/sec", c );
     D["vx_si"]  = units("m/sec",  c * 0.01 );

     D["vy"]     = units("c",1.0);
     D["vy_cgs"] = units("cm/sec", c );
     D["vy_si"]  = units("m/sec",  c * 0.01 );

     D["vz"]     = units("c",1.0);
     D["vz_cgs"] = units("cm/sec", c );
     D["vz_si"]  = units("m/sec",  c * 0.01 );

     // time - 1/wp
     D["Time"]     = units("1/wp",1.0);
     D["Time_cgs"] = units("sec", 1.0/wp);
     D["Time_si"]  = units("sec", 1.0/wp);
     D["Time_fs"]  = units("fsec", 1.0/wp*1.0e+15);
     D["Time_ps"]  = units("psec", 1.0/wp*1.0e+12);

     D["t"]     = units("1/wp",1.0);
     D["t_cgs"] = units("sec", 1.0/wp);
     D["t_si"]  = units("sec", 1.0/wp);

     // space - c/wp
     D["Space"]     = units("c/wp",1.0);
     D["Space_cgs"] = units("cm",       c/wp);
     D["Space_si"]  = units("m", 0.01 * c/wp); // 1 cm = 0.01 m

     D["x"]     = units("c/wp",1.0);
     D["x_cgs"] = units("cm",       c/wp);
     D["x_si"]  = units("m", 0.01 * c/wp); // 1 cm = 0.01 m

     D["y"]     = units("c/wp",1.0);
     D["y_cgs"] = units("cm",       c/wp);
     D["y_si"]  = units("m", 0.01 * c/wp); // 1 cm = 0.01 m

     D["z"]     = units("c/wp",1.0);
     D["z_cgs"] = units("cm",       c/wp);
     D["z_si"]  = units("m", 0.01 * c/wp); // 1 cm = 0.01 m

     // density - n
     D["Density"]     = units("n",1.0);
     D["Density_cgs"] = units("cm^-3",         n);
     D["Density_si"]  = units("m^-3", 1.0e+6 * n);   // cm^-3 = 10^6 m^-3

     D["n"]     = units("n",1.0);
     D["n_cgs"] = units("cm^-3",         n);
     D["n_si"]  = units("m^-3", 1.0e+6 * n);   // cm^-3 = 10^6 m^-3

     // charge - e
     D["Charge"]     = units("e",1.0);
     D["Charge_cgs"] = units("Fr",           e);
     D["Charge_si"]  = units("C", (10.0/c) * e);  // 1 Fr = (10/c) * C

     D["q"]     = units("e",1.0);
     D["q_cgs"] = units("Fr",           e);
     D["q_si"]  = units("C", (10.0/c) * e);  // 1 Fr = (10/c) * C

     // momentum - mc
     D["Momentum"]     = units("mc",1.0);
     D["Momentum_cgs"] = units("gr*cm/sec", m*c );
     D["Momentum_si"]  = units("kg*m/sec",  m*c * 1.0e-5 );

     D["p"]     = units("mc",1.0);
     D["p_cgs"] = units("gr*cm/sec", m*c );
     D["p_si"]  = units("kg*m/sec",  m*c * 1.0e-5 );

     D["px"]     = units("mc",1.0);
     D["px_cgs"] = units("gr*cm/sec", m*c );
     D["px_si"]  = units("kg*m/sec",  m*c * 1.0e-5 );

     D["py"]     = units("mc",1.0);
     D["py_cgs"] = units("gr*cm/sec", m*c );
     D["py_si"]  = units("kg*m/sec",  m*c * 1.0e-5 );

     D["pz"]     = units("mc",1.0);
     D["pz_cgs"] = units("gr*cm/sec", m*c );
     D["pz_si"]  = units("kg*m/sec",  m*c * 1.0e-5 );
 //-----

     // energy - mc^2
     D["Energy"]     = units("mc^2",1.0);
     D["Energy_cgs"] = units("erg",          m*pow(c,2)   );
     D["Energy_si"]  = units("J",   1.0e-7 * m*pow(c,2)   );  // erg = 10^-7 J
     D["Energy_eV"]  = units("eV",  1.0e-7 * m*pow(c,2)/((10.0/c) * e) );

     D["T"]     = units("mc^2",1.0);
     D["T_cgs"] = units("erg",          m*pow(c,2)   );
     D["T_si"]  = units("J",   1.0e-7 * m*pow(c,2)   );  // erg = 10^-7 J
     D["T_eV"]  = units("eV",  1.0e-7 * m*pow(c,2)/((10.0/c) * e) );

     // current - ewp
     D["Current"]     = units("ewp",1.0);
     D["Current_cgs"] = units("Fr/s",        e*wp );
     D["Current_si"]  = units("A",  10.0/c * e*wp );  // Fr/s = 10/c A

     D["Jx"]     = units("ewp",1.0);
     D["Jx_cgs"] = units("Fr/s",        e*wp );
     D["Jx_si"]  = units("A",  10.0/c * e*wp );  // Fr/s = 10/c A

     D["Jy"]     = units("ewp",1.0);
     D["Jy_cgs"] = units("Fr/s",        e*wp );
     D["Jy_si"]  = units("A",  10.0/c * e*wp );  // Fr/s = 10/c A

     D["Jz"]     = units("ewp",1.0);
     D["Jz_cgs"] = units("Fr/s",        e*wp );
     D["Jz_si"]  = units("A",  10.0/c * e*wp );  // Fr/s = 10/c A

     // pressure - n*mc^2
     D["Pressure"]      = units("n*mc^2",1.0);
     D["Pressure_cgs"]  = units("Ba",             n*m*c*c );
     D["Pressure_si"]   = units("Pa",       0.1 * n*m*c*c ); // Ba = 0.1 Pa
     D["Pressure_Mbar"] = units("Mbar", 1.0e-12 * n*m*c*c ); // Ba = 10^-12Mbar

     D["P"]      = units("n*mc^2",1.0);
     D["P_cgs"]  = units("Ba",             n*m*c*c );
     D["P_si"]   = units("Pa",       0.1 * n*m*c*c ); // Ba = 0.1 Pa
     D["P_Mbar"] = units("Mbar", 1.0e-12 * n*m*c*c ); // Ba = 10^-12Mbar
 //-----

     // Electric field - mcwp/e
     D["Efield"]     = units("mcwp/e",1.0);
     D["Efield_cgs"] = units("statV/cm",       m*c*wp/e);
     D["Efield_si"]  = units("V/m", c*1.0e-6 * m*c*wp/e);  // statV/m = 10^-6*c * V/m

     D["Ex"]     = units("mcwp/e",1.0);
     D["Ex_cgs"] = units("statV/cm",       m*c*wp/e);
     D["Ex_si"]  = units("V/m", c*1.0e-6 * m*c*wp/e);  // statV/m = 10^-6*c * V/m

     D["Ey"]     = units("mcwp/e",1.0);
     D["Ey_cgs"] = units("statV/cm",       m*c*wp/e);
     D["Ey_si"]  = units("V/m", c*1.0e-6 * m*c*wp/e);  // statV/m = 10^-6*c * V/m

     D["Ez"]     = units("mcwp/e",1.0);
     D["Ez_cgs"] = units("statV/cm",       m*c*wp/e);
     D["Ez_si"]  = units("V/m", c*1.0e-6 * m*c*wp/e);  // statV/m = 10^-6*c * V/m

     // Magnetic field - mcwp/e
     D["Bfield"]     = units("mcwp/e",1.0);
     D["Bfield_cgs"] = units("Gauss",          m*c*wp/e);
     D["Bfield_si"]  = units("Tesla", 1.0e-4 * m*c*wp/e);  // Gauss = 10^-4 Tesla

     D["Bx"]     = units("mcwp/e",1.0);
     D["Bx_cgs"] = units("Gauss",          m*c*wp/e);
     D["Bx_si"]  = units("Tesla", 1.0e-4 * m*c*wp/e);  // Gauss = 10^-4 Tesla

     D["By"]     = units("mcwp/e",1.0);
     D["By_cgs"] = units("Gauss",          m*c*wp/e);
     D["By_si"]  = units("Tesla", 1.0e-4 * m*c*wp/e);  // Gauss = 10^-4 Tesla

     D["Bz"]     = units("mcwp/e",1.0);
     D["Bz_cgs"] = units("Gauss",          m*c*wp/e);
     D["Bz_si"]  = units("Tesla", 1.0e-4 * m*c*wp/e);  // Gauss = 10^-4 Tesla

     // force - mcwp
     D["Force"]     = units("mcwp",1.0);
     D["Force_cgs"] = units("dyne",       m*c*wp);
     D["Force_si"]  = units("N", 1.0e-5 * m*c*wp ); // dyne = 10^-5 N

 }

Member Function Documentation

◆ Label() [1/2]

string Formulary::Label ( string key )

inline

Definition at line 76 of file formulary.h.

Referenced by Export_Files::Xport::Xport().

76 { return D[key].label; }

Formulary::D

map< string, units > D

Definition: formulary.h:124

Here is the caller graph for this function:

◆ Label() [2/2]

string Formulary::Label	(	string	key1,
		string	key2
	)

inline

Definition at line 77 of file formulary.h.

77 { return D[key1+"_"+key2].label; }

Formulary::D

map< string, units > D

Definition: formulary.h:124

◆ LOGee() [1/2]

double Formulary::LOGee	(	double	ne,
		double	Te
	)

Definition at line 226 of file formulary.cpp.

References units::d, nmin, and Units().

Referenced by self_f00_implicit_step::getleftside(), LOGee(), interspecies_flm_implicit_step::reset_coeff(), self_flm_implicit_step::reset_coeff(), startmessages(), self_f00_implicit_step::takestep(), self_f00_explicit_step::takestep(), Tau_e(), and self_f00_implicit_step::update_D_inversebremsstrahlung().

                                             {
 //   ne =  density/np, Te = energy/mc^2
 //   Note: we assume nonrelativistic distribution functions
     if (ne < nmin) return 2.0;

     // Te /= (3.0*ne);
     Te *= Units("Energy","eV").d; // Temperature in eV
     ne *= Units("Density","cgs").d;

     Te = log(Te);
     ne = log(ne);

     return max(2.0,23.5 - 0.5*ne + 1.25*Te - sqrt(0.00001+0.0625*(Te-2.0)*(Te-2.0)));
 }

Here is the call graph for this function:

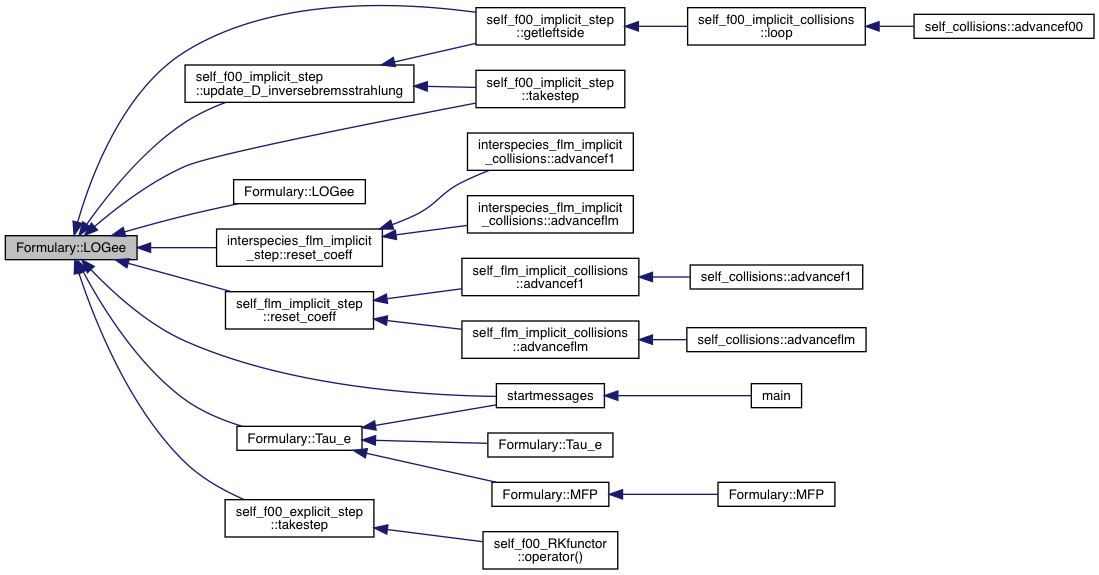

Here is the caller graph for this function:

◆ LOGee() [2/2]

double Formulary::LOGee	(	double	ne,
		string	un,
		double	Te,
		string	uT
	)

Definition at line 241 of file formulary.cpp.

References units::d, LOGee(), and Units().

                                                                   {
 //   where "un" are the units of ne, and uT of Te
     Te /= Units("Energy",uT).d;
     ne /= Units("Density",un).d;

     return LOGee(ne,Te);
 }

Here is the call graph for this function:

◆ LOGei() [1/2]

double Formulary::LOGei	(	double	ne,
		double	Te,
		double	Z
	)

Definition at line 249 of file formulary.cpp.

References units::d, nmin, and Units().

Referenced by self_f00_implicit_step::getleftside(), IB_f00::Getslope(), LOGei(), interspecies_flm_implicit_step::reset_coeff(), self_flm_implicit_step::reset_coeff(), startmessages(), self_f00_implicit_step::takestep(), Tau_i(), and self_f00_implicit_step::update_D_inversebremsstrahlung().

                                                       {
 //   ne =  density/np, Te = energy/mc^2
 //   Note: we assume nonrelativistic distribution functions
     if (ne < nmin) return 2.0;

     Te *= Units("Energy","eV").d; // Temperature in eV
     ne *= Units("Density","cgs").d;

     if ( Te > 10.0*Z*Z ) {
         return max(2.0, 24.0 - 0.5*log(ne) + log(Te));
     }
     return max(2.0, 23.0 - 0.5*log(ne) + 1.5*log(Te) - log(Z));
 }

Here is the call graph for this function:

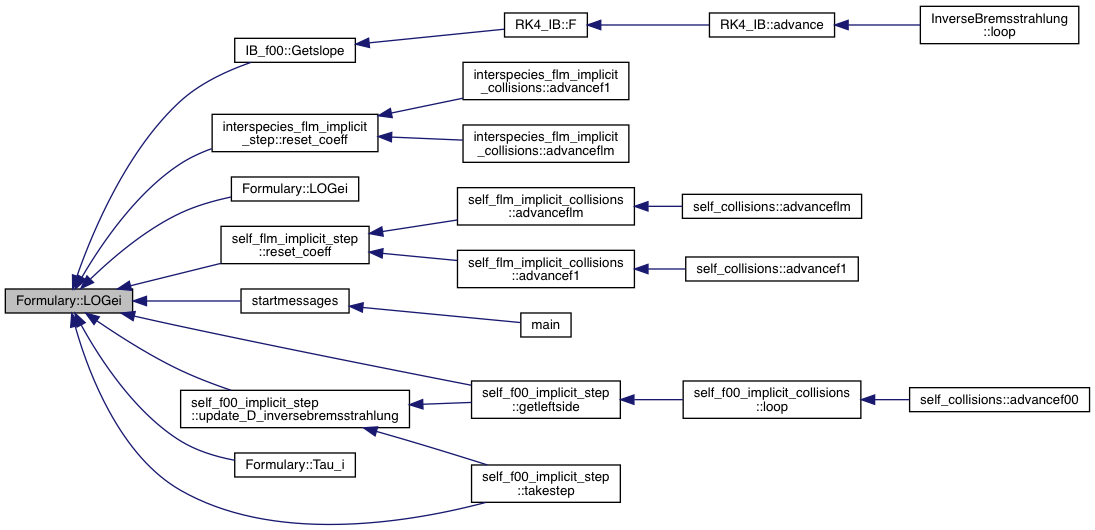

Here is the caller graph for this function:

◆ LOGei() [2/2]

double Formulary::LOGei	(	double	ne,
		string	un,
		double	Te,
		string	uT,
		double	Z
	)

Definition at line 263 of file formulary.cpp.

References units::d, LOGei(), and Units().

                                                                             {
 //   where "un" are the units of ne, and uT of Te
     Te /= Units("Energy",uT).d; // Temperature in eV
     ne /= Units("Density",un).d;

     return LOGei(ne,Te,Z);
 }

Here is the call graph for this function:

◆ LOGii()

double Formulary::LOGii	(	double	m1,
		double	Z1,
		double	n1,
		double	T1,
		double	m2,
		double	Z2,
		double	n2,
		double	T2
	)

Definition at line 271 of file formulary.cpp.

References units::d, nmin, and Units().

Referenced by interspecies_f00_explicit_step::takestep().

                                                 {
 //   ne =  density/np, Te = energy/mc^2
 //   Note: we assume nonrelativistic distribution functions
     double mp=1;
     if (n1 < nmin || n2 < nmin) return 2.0;

     T1 *= Units("Energy","eV").d; // Temperature in eV
     T2 *= Units("Energy","eV").d; // Temperature in eV
     n1 *= Units("Density","cgs").d;
     n2 *= Units("Density","cgs").d;

     return max(2.0, 23.0 - log(Z1*Z2*(m1/mp+m2/mp)/(m1/mp*T2+m2/mp*T1)*sqrt(n1*Z1*Z1/T1+n2*Z2*Z2/T2)));
 }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MFP() [1/2]

double Formulary::MFP	(	double	ne,
		double	Te
	)

Definition at line 318 of file formulary.cpp.

References Tau_e(), and vth().

Referenced by MFP().

                                          {
     return vth(Te)*Tau_e(ne,Te);
 }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ MFP() [2/2]

double Formulary::MFP	(	double	ne,
		string	un,
		double	Te,
		string	uT
	)

Definition at line 321 of file formulary.cpp.

References units::d, MFP(), and Units().

                                                                  {
     Te /= Units("Energy",uT).d;
     ne /= Units("Density",un).d;
     return MFP(ne,Te);
 }

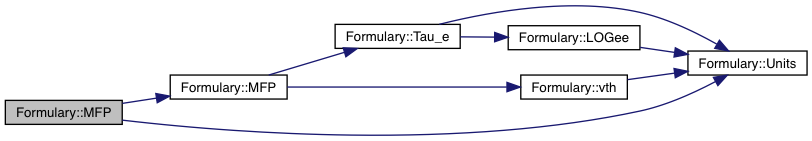

Here is the call graph for this function:

◆ Tau_e() [1/2]

double Formulary::Tau_e	(	double	ne,
		double	Te
	)

Units("Time","cgs").d;

Definition at line 306 of file formulary.cpp.

References units::d, LOGee(), and Units().

Referenced by MFP(), startmessages(), and Tau_e().

                                            {
     return 3.44e+5*(pow(sqrt(Te*Units("Energy","eV").d),3)/
             (ne*Units("Density","cgs").d*LOGee(ne,Te))) ; //
 }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ Tau_e() [2/2]

double Formulary::Tau_e	(	double	ne,
		string	un,
		double	Te,
		string	uT
	)

Definition at line 311 of file formulary.cpp.

References units::d, Tau_e(), and Units().

                                                                    {
     Te /= Units("Energy",uT).d;
     ne /= Units("Density",un).d;
     return Tau_e(ne,Te);
 }

Here is the call graph for this function:

◆ Tau_i()

double Formulary::Tau_i	(	double	ne,
		double	Te,
		double	Zeta
	)

Definition at line 300 of file formulary.cpp.

References units::d, LOGei(), me_over_mp, and Units().

                                                         {
     return 2.09e+7*(pow(sqrt(Te/Zeta*Units("Energy","eV").d),3)/
             (ne*Units("Density","cgs").d*LOGei(ne,Te,Zeta))) /sqrt(me_over_mp);
 }

Here is the call graph for this function:

◆ Uconv() [1/2]

double Formulary::Uconv ( string key )

inline

Definition at line 78 of file formulary.h.

Referenced by Export_Files::Xport::Xport().

78 { return D[key].d; }

Formulary::D

map< string, units > D

Definition: formulary.h:124

Here is the caller graph for this function:

◆ Uconv() [2/2]

double Formulary::Uconv	(	string	key1,
		string	key2
	)

inline

Definition at line 79 of file formulary.h.

79 { return D[key1+"_"+key2].d; }

Formulary::D

map< string, units > D

Definition: formulary.h:124

◆ Units() [1/2]

units Formulary::Units ( string key )

inline

Definition at line 74 of file formulary.h.

Referenced by LOGee(), LOGei(), LOGii(), MFP(), Tau_e(), Tau_i(), and vth().

74 { return D[key]; }

Formulary::D

map< string, units > D

Definition: formulary.h:124

Here is the caller graph for this function:

◆ Units() [2/2]

units Formulary::Units	(	string	key1,
		string	key2
	)

inline

Definition at line 75 of file formulary.h.

75 { return D[key1+"_"+key2]; }

Formulary::D

map< string, units > D

Definition: formulary.h:124

◆ vth() [1/2]

double Formulary::vth ( double Te )

Definition at line 291 of file formulary.cpp.

References c, units::d, and Units().

Referenced by MFP(), and vth().

                               {
     Te *= Units("Energy","eV").d;
     return sqrt(Te)*4.19e+7/c;
 }

Here is the call graph for this function:

Here is the caller graph for this function:

◆ vth() [2/2]

double Formulary::vth	(	double	Te,
		string	uT
	)

Definition at line 295 of file formulary.cpp.

References units::d, Units(), and vth().

                                          {
     Te /= Units("Energy", uT).d;
     return vth(Te);
 }

Here is the call graph for this function:

Field Documentation

◆ B0

double Formulary::B0

Definition at line 102 of file formulary.h.

Referenced by startmessages().

◆ c

constexpr double Formulary::c = 2.99792458*1.0e+10

static

Definition at line 119 of file formulary.h.

Referenced by Formulary(), and vth().

◆ cL

constexpr double Formulary::cL = 299792458

static

Definition at line 112 of file formulary.h.

Referenced by startmessages().

◆ D

map<string,units> Formulary::D

private

Definition at line 124 of file formulary.h.

Referenced by Formulary().

◆ e

constexpr double Formulary::e = 4.80320425*1.0e-10

static

Definition at line 120 of file formulary.h.

Referenced by Formulary().

◆ eps0

constexpr double Formulary::eps0 =8.854187817e-12

static

Definition at line 113 of file formulary.h.

◆ keVnorm

constexpr double Formulary::keVnorm = 510.9989461

static

Definition at line 117 of file formulary.h.

◆ m

constexpr double Formulary::m = 9.10938215*1.0e-28

static

Definition at line 121 of file formulary.h.

Referenced by Formulary().

◆ me

constexpr double Formulary::me = 9.10938356e-31

static

Definition at line 115 of file formulary.h.

◆ me_over_mp

constexpr double Formulary::me_over_mp = 0.000544617024

static

Definition at line 116 of file formulary.h.

Referenced by Tau_i().

◆ n

double Formulary::n

Definition at line 99 of file formulary.h.

Referenced by Formulary(), and startmessages().

◆ nmin

constexpr double Formulary::nmin = 1.0e-8

staticprivate

Definition at line 126 of file formulary.h.

Referenced by LOGee(), LOGei(), and LOGii().

◆ pi

constexpr double Formulary::pi =3.141592653589793238

static

Definition at line 110 of file formulary.h.

Referenced by startmessages().

◆ qe

constexpr double Formulary::qe = -1.60217662e-19

static

Definition at line 114 of file formulary.h.

◆ skindepth

double Formulary::skindepth

Definition at line 101 of file formulary.h.

Referenced by startmessages().

◆ T0

double Formulary::T0

Definition at line 103 of file formulary.h.

Referenced by startmessages().

◆ wp

double Formulary::wp

Definition at line 100 of file formulary.h.

Referenced by Formulary(), and startmessages().

◆ Zeta

double Formulary::Zeta

Definition at line 104 of file formulary.h.

Referenced by self_f00_implicit_step::getleftside(), IB_f00::Getslope(), interspecies_flm_implicit_step::reset_coeff(), self_flm_implicit_step::reset_coeff(), startmessages(), self_f00_implicit_step::takestep(), and self_f00_implicit_step::update_D_inversebremsstrahlung().

The documentation for this class was generated from the following files:

/Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/formulary.h
/Users/archis/Dropbox/work/dev/oshun/oshun-OS/OSHUN/1d_cpp/source/formulary.cpp

Public Member Functions

Data Fields

Static Public Attributes

Private Attributes

Static Private Attributes

Detailed Description

Constructor & Destructor Documentation

◆ Formulary()

Member Function Documentation

◆ Label() [1/2]

◆ Label() [2/2]

◆ LOGee() [1/2]

◆ LOGee() [2/2]

◆ LOGei() [1/2]

◆ LOGei() [2/2]

◆ LOGii()

◆ MFP() [1/2]

◆ MFP() [2/2]

◆ Tau_e() [1/2]

◆ Tau_e() [2/2]

◆ Tau_i()

◆ Uconv() [1/2]

◆ Uconv() [2/2]

◆ Units() [1/2]

◆ Units() [2/2]

◆ vth() [1/2]

◆ vth() [2/2]

Field Documentation

◆ B0

◆ c

◆ cL

◆ D

◆ e

◆ eps0

◆ keVnorm

◆ m

◆ me

◆ me_over_mp

◆ n

◆ nmin

◆ pi

◆ qe

◆ skindepth

◆ T0

◆ wp

◆ Zeta
