#include <functors.h>

Inheritance diagram for VlasovFunctor1D_explicitE:

Collaboration diagram for VlasovFunctor1D_explicitE:

Public Member Functions
	VlasovFunctor1D_explicitE (vector< size_t > Nl, vector< size_t > Nm, vector< double > pmax, vector< size_t > Np, double xmin, double xmax, size_t Nx)

	~VlasovFunctor1D_explicitE ()

void	operator() (const State1D &Yin, State1D &Yslope)

void	operator() (const State1D &Yin, const State1D &Y2in, State1D &Yslope)

void	operator() (const State1D &Yin, State1D &Yslope, size_t dir)

Private Attributes
vector< Spatial_Advection_1D >	SA

vector< Electric_Field_1D >	EF

vector< Current_1D >	JX

vector< Ampere_1D >	AM

vector< Magnetic_Field_1D >	BF

vector< Faraday_1D >	FA

Detailed Description

Definition at line 16 of file functors.h.

Constructor & Destructor Documentation

◆ VlasovFunctor1D_explicitE()

VlasovFunctor1D_explicitE::VlasovFunctor1D_explicitE	(	vector< size_t >	Nl,
		vector< size_t >	Nm,
		vector< double >	pmax,
		vector< size_t >	Np,
		double	xmin,
		double	xmax,
		size_t	Nx
	)

Definition at line 42 of file functors.cpp.

References AM, BF, EF, FA, JX, and SA.

                                                                                           {
 //--------------------------------------------------------------

     for (size_t s(0); s < Nl.size(); ++s){

         SA.push_back( Spatial_Advection_1D(Nl[s], Nm[s], 0.0, pmax[s], Np[s], xmin, xmax, Nx) );

         EF.push_back( Electric_Field_1D(Nl[s], Nm[s], 0.0, pmax[s], Np[s], xmin, xmax, Nx) );

         JX.push_back( Current_1D(0.0, pmax[s], Np[s], Nx) );

         BF.push_back( Magnetic_Field_1D(Nl[s], Nm[s], 0.0, pmax[s], Np[s], xmin, xmax, Nx) );

         AM.push_back( Ampere_1D(xmin, xmax, Nx) );

         FA.push_back( Faraday_1D(xmin, xmax, Nx) );

     }
 }

◆ ~VlasovFunctor1D_explicitE()

VlasovFunctor1D_explicitE::~VlasovFunctor1D_explicitE ( )

inline

Definition at line 23 of file functors.h.

References operator()().

23 { };

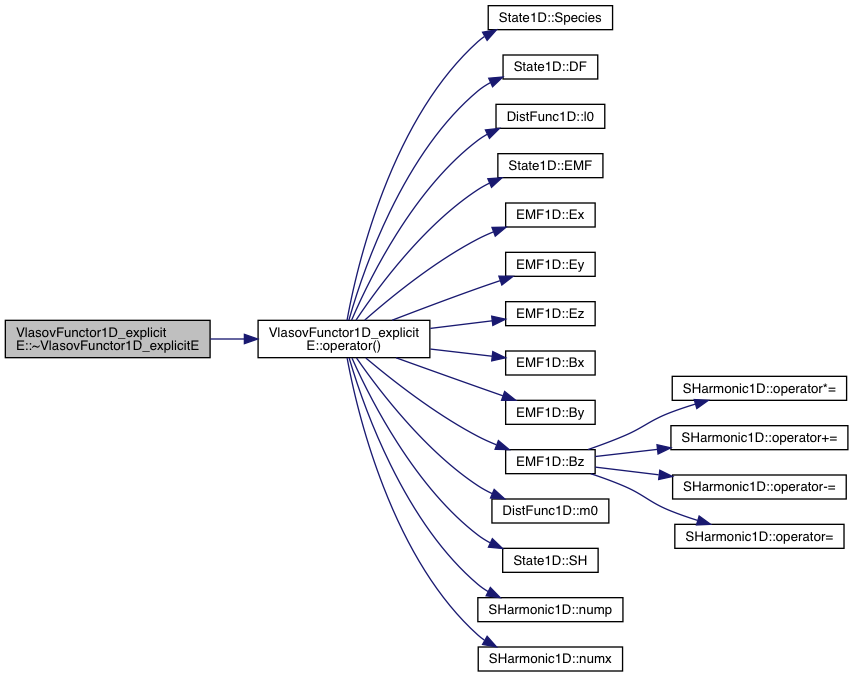

Here is the call graph for this function:

Member Function Documentation

◆ operator()() [1/3]

void VlasovFunctor1D_explicitE::operator()	(	const State1D &	Yin,
		State1D &	Yslope
	)

virtual

Implements Algorithms::AbstFunctor< State1D >.

Definition at line 67 of file functors.cpp.

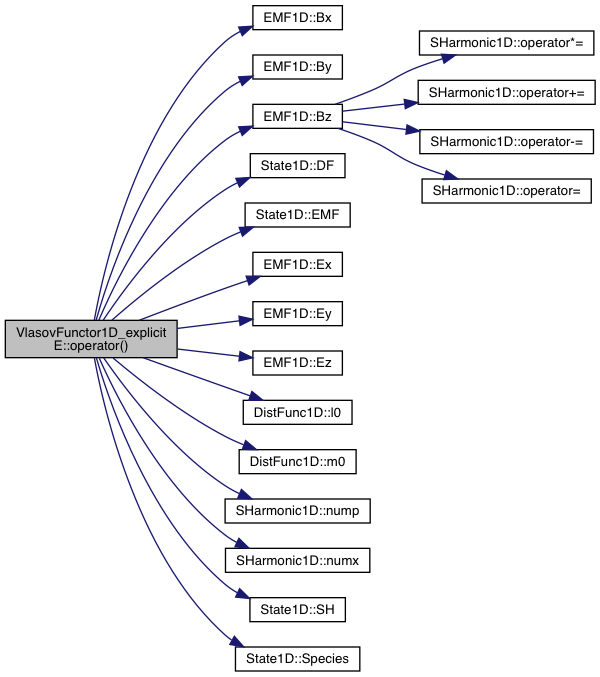

References AM, BF, EMF1D::Bx(), EMF1D::By(), EMF1D::Bz(), State1D::DF(), EF, State1D::EMF(), EMF1D::Ex(), EMF1D::Ey(), EMF1D::Ez(), FA, JX, DistFunc1D::l0(), DistFunc1D::m0(), SHarmonic1D::nump(), SHarmonic1D::numx(), SA, State1D::SH(), and State1D::Species().

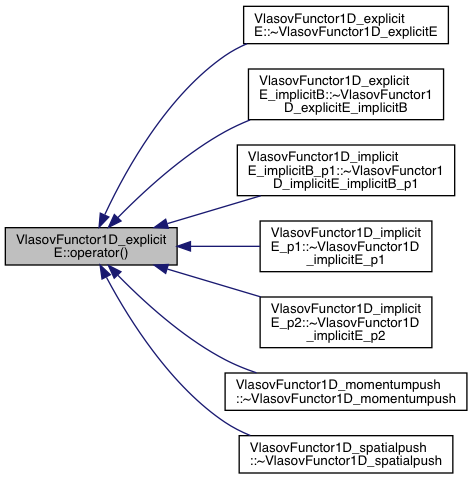

Referenced by ~VlasovFunctor1D_explicitE(), VlasovFunctor1D_explicitE_implicitB::~VlasovFunctor1D_explicitE_implicitB(), VlasovFunctor1D_implicitE_implicitB_p1::~VlasovFunctor1D_implicitE_implicitB_p1(), VlasovFunctor1D_implicitE_p1::~VlasovFunctor1D_implicitE_p1(), VlasovFunctor1D_implicitE_p2::~VlasovFunctor1D_implicitE_p2(), VlasovFunctor1D_momentumpush::~VlasovFunctor1D_momentumpush(), and VlasovFunctor1D_spatialpush::~VlasovFunctor1D_spatialpush().

                                                                              {
 //--------------------------------------------------------------
     bool debug(0);

     Yslope = 0.0;

     for (size_t s(0); s < Yin.Species(); ++s) {

         if (Yin.DF(s).l0() == 1) {

             SA[s].f1only(Yin.DF(s),Yslope.DF(s));

             EF[s].f1only(Yin.DF(s),Yin.EMF().Ex(),Yin.EMF().Ey(),Yin.EMF().Ez(),Yslope.DF(s));

             BF[s].f1only(Yin.DF(s),Yin.EMF().Bx(),Yin.EMF().By(),Yin.EMF().Bz(),Yslope.DF(s));

             JX[s](Yin.DF(s),Yslope.EMF().Ex(),Yslope.EMF().Ey(),Yslope.EMF().Ez());

             AM[s](Yin.EMF(),Yslope.EMF());

             FA[s](Yin.EMF(),Yslope.EMF());

         }
         else if (Yin.DF(s).m0() == 0) {


             if (debug)
             {
                 std::cout << "\n\n f at start:";
                 for (size_t ip(0); ip < Yin.SH(0,0,0).nump(); ++ip){
                     std::cout << "\nf(" << ip << ") = " << Yin.SH(0,1,0)(ip,4);
                 }

                 std::cout << "\n\n E at start:";
                 for (size_t ix(0); ix < Yin.SH(0,0,0).numx(); ++ix){
                     std::cout << "\nEx(" << ix << ") = " << Yin.EMF().Ex()(ix);
                 }
             }
             EF[s].es1d(Yin.DF(s),Yin.EMF().Ex(),Yin.EMF().Ey(),Yin.EMF().Ez(),Yslope.DF(s));


             if (debug)
             {
                 std::cout << "\n\nf after E:";
                 for (size_t ip(0); ip < Yin.SH(0,0,0).nump(); ++ip){
                     std::cout << "\nf(" << ip << ") = " << Yslope.SH(0,1,0)(ip,4);
                 }
             }
             JX[s].es1d(Yin.DF(s),Yslope.EMF().Ex());

             if (debug)
             {
                 std::cout << "\n\n after J:";
                 for (size_t ix(0); ix < Yin.SH(0,0,0).numx(); ++ix){
                     std::cout << "\nEx(" << ix << ") = " << Yslope.EMF().Ex()(ix);
                 }
             }

             SA[s].es1d(Yin.DF(s),Yslope.DF(s));

             if (debug)
             {
                 std::cout << "\n\n after SA:";
                 for (size_t ip(0); ip < Yin.SH(0,0,0).nump(); ++ip){
                     std::cout << "\nf(" << ip << ") = " << Yslope.SH(0,1,0)(ip,4);
                 }
             }
         }

         else {

             SA[s](Yin.DF(s),Yslope.DF(s));

             EF[s](Yin.DF(s),Yin.EMF().Ex(),Yin.EMF().Ey(),Yin.EMF().Ez(),Yslope.DF(s));

             BF[s](Yin.DF(s),Yin.EMF().Bx(),Yin.EMF().By(),Yin.EMF().Bz(),Yslope.DF(s));

             JX[s](Yin.DF(s),Yslope.EMF().Ex(),Yslope.EMF().Ey(),Yslope.EMF().Ez());

             AM[s](Yin.EMF(),Yslope.EMF());

             FA[s](Yin.EMF(),Yslope.EMF());

         }

         // Yslope.DF(s) = Yslope.DF(s).Filterp();

         // exit(1);
     }

 }
